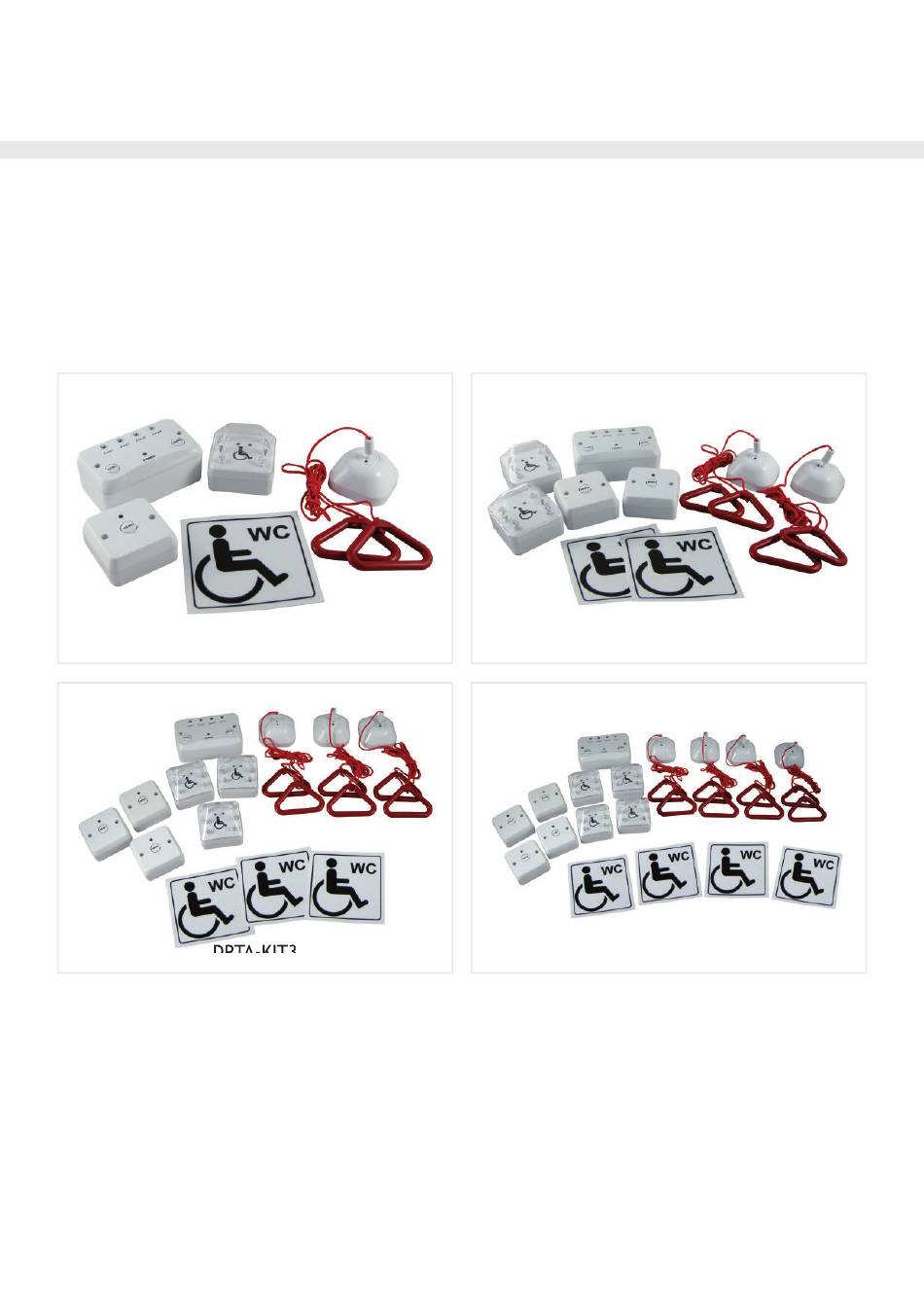

- Page 1 DPTA-KIT1, DPTA-KIT2, DPTA-KIT3 & DPTA-KIT4 User Manual User Manual / Disabled Persons Toilet Alarm (DPTA) DPTA-KIT1 DPTA-KIT2 DPTA-KIT3 DPTA-KIT4 Issue #1 Issue Date 26/09/2008 Revision #5...
-
Page 2: Table Of Contents
DPTA-KIT1, DPTA-KIT2, DPTA-KIT3 & DPTA-KIT4 User Manual Contents / Contents Section 1 Introduction Section 2 Features Section 3 Typical Installation Section 4 Product Specifi cations Section 5 Electrical Requirements Section 6 Wiring Diagram Issue #1 Issue Date 26/09/2008 Revision #5... -
Page 3: Section 1 Introduction
DPTA-KIT1, DPTA-KIT2, DPTA-KIT3 & DPTA-KIT4 User Manual Section 1 Introduction / 1 Introduction This Disabled Persons Toilet Alarm Kit is available in 1, 2, 3 or 4 zones (where one zone is used for each toilet). It has been designed for use in disabled persons dwellings typically for disabled toilets where this design process considered the requirements of BS8300. -
Page 4: Section 2 Features
DPTA-KIT1, DPTA-KIT2, DPTA-KIT3 & DPTA-KIT4 User Manual Section 2 Features / 2 Features Simple 3 wire operation for all fi eld devices Control Panel supporting up to 4 zones Simple maintenance and fault diagnosis. On board buzzer in both Control Panel & Remote Indicator Zone LED indication on Control Panel Full range of fi... -
Page 5: Section 3 Typical Installation
DPTA-KIT1, DPTA-KIT2, DPTA-KIT3 & DPTA-KIT4 User Manual Section 3 Typical Installation / 3 Typical Installation The following illustration shows how the Control Panel and fi eld devices are connected in a typical installation for a single toilet; Up to four toilets... -
Page 6: Section 4 Product Specifi Cations
DPTA-KIT1, DPTA-KIT2, DPTA-KIT3 & DPTA-KIT4 User Manual Section 4 Product Specifi cations / 4 Product Specifi cations 4.1 DPTA-CP – Control Panel (Surface/Flush Mounted) a. Power Supply Mains Input Voltage 230VAC 50Hz/60Hz Quiescent Standby Current 3mA DC (Buzzer Muted) Maximum Overall Supply Current... - Page 7 DPTA-KIT1, DPTA-KIT2, DPTA-KIT3 & DPTA-KIT4 User Manual Section 4 Product Specifi cations / e. Field Device Inputs Number of Zone Circuits Detection Supply Voltage 12 VDC +/- 10% Maximum Current 30mA Detection Mode Monitoring Short Circuit > 30mA Open Circuit <...
- Page 8 DPTA-KIT1, DPTA-KIT2, DPTA-KIT3 & DPTA-KIT4 User Manual Section 4 Product Specifi cations / b. User Operation Action Response Pull Card Alarm Activation c. LED System Status LED Response Front Mounted Alarm Activation Illuminates in Sympathy with System d. Termination Device is wired with 3 wires (positive, negative & signal) in and 3 wires (positive, negative &...
- Page 9 DPTA-KIT1, DPTA-KIT2, DPTA-KIT3 & DPTA-KIT4 User Manual Section 4 Product Specifi cations / e. Housings Material Colour White 4.4 DPTA-RI – Remote Indicator (Surface/Flush Mounted) a. Power Supply 12 VDC Quiescent Standby Current Maximum Current During Alarm 30 mA DC (Maximum) c.
-
Page 10: Section 5 Electrical Requirements
DPTA-KIT1, DPTA-KIT2, DPTA-KIT3 & DPTA-KIT4 User Manual Section 5 Electrical Requirements / 5 Electrical Requirements A. Power Supply 230V AC at 50/60Hz 12V DC Storage battery Standby Current : 4mA Alarm Current : 250mA (max) B. DPTA-CP Internal Safety Fuses F1 - Auxiliary –... -
Page 11: Section 6 Wiring Diagram
DPTA-KIT1, DPTA-KIT2, DPTA-KIT3 & DPTA-KIT4 User Manual Section 6 Wiring Diagram / 6 Wiring Diagram DPTA-RR Wiring of fi eld devices for each zone which can be wired in any order once spurred from control panel (DPTA-CP) DPTA-RI DPTA-PC DPTA-CP...
