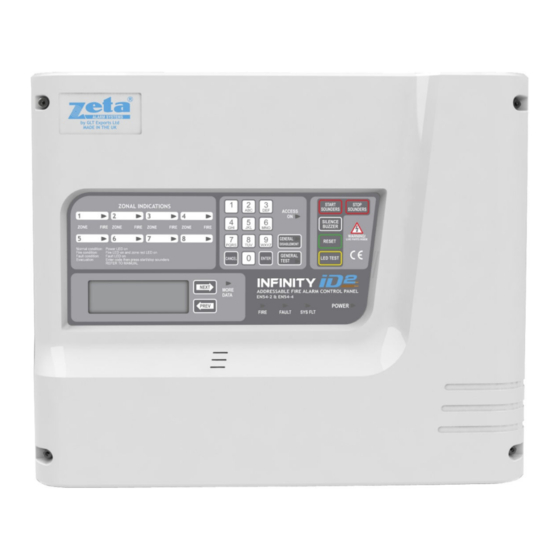

ID2 Fire Alarm Control Panel

Quick Start Guide

Manuals

As part of our drive to help the environment and reduce our carbon footprint, we are pushing a

move to electronic manuals. All our panels will contain a simple quickstart guide, which gives an

overview of setting up the panel.

Full manuals can be downloaded to a Smartphone or tablet by scanning the QR code on the panel`s

serial number label

Suitable QR scanner apps are available for free in Apple`s App Store, or on Android`s Google Play

Alternatively, they can be downloaded from the support section of our website.

http://www.zetaalarmsystems.com/support/manuals.html

Your distributer will be happy to arrange a hard copy of the manual if required

Doc: GLT-211-7-3

Iss: 2.0

Date 03/08/2016

Page 1: Quick Start Guide
ID2 Fire Alarm Control Panel Quick Start Guide Manuals As part of our drive to help the environment and reduce our carbon footprint, we are pushing a move to electronic manuals. All our panels will contain a simple quickstart guide, which gives an overview of setting up the panel.
Page 2 Introduction This guide is designed to be used by competent persons who are familiar with the installation and setting up of fire alarm systems. This guide covers the basic setup of the ID2 panel and devices which connect to the system (detectors, call points, modules and sounders).
Page 3 Addressing the System. The ID2 divides the loop addresses into zones and Ids. The panel translates the address into a zone and ID. Each zone starts with ID1, in order to simplify the addressing. To assist with setting the dip switches, there is a free app available for download on the APP Store for iOS, or Google Play for Android Once all the installation has been checked for any cable faults, and all the devices have been addressed and fitted, connect the loop or radial circuits and turn the panel on.
Page 4 Configuring the panel. The basic steps to configuring the panel are shown below:- Step Function How to do Set the device dip switches Use the smartphone App, remembering that devices set as zone 1 must be connected to zone 1 circuit etc Go To Engineer Screen Enter engineer code on the panel (enter then 369) Enter again for menu...
