We.lock TOUCAEBL51 Instructions Manual page 8

Adjusting the length of the lock cylinder
In accordance with the required lock cylinder length, you can adjust the internal and
external length by loosening the screw with an inner hexagon spanner and pulling out
the handle as needed; if necessary, you can increase the lock cylinder length by using
an extended lock cylinder piece and tighten the screw after adjustment. Plugged the
adjusting hole with a silicone plug, which can play a certain waterproof role.
Spare lock cylinder extension, which can increase the length of the lock cylinder if necessary.
Align and tighten
the holes with a cross screwdriver
Due to the security reason, the front handle cannot be taken off.

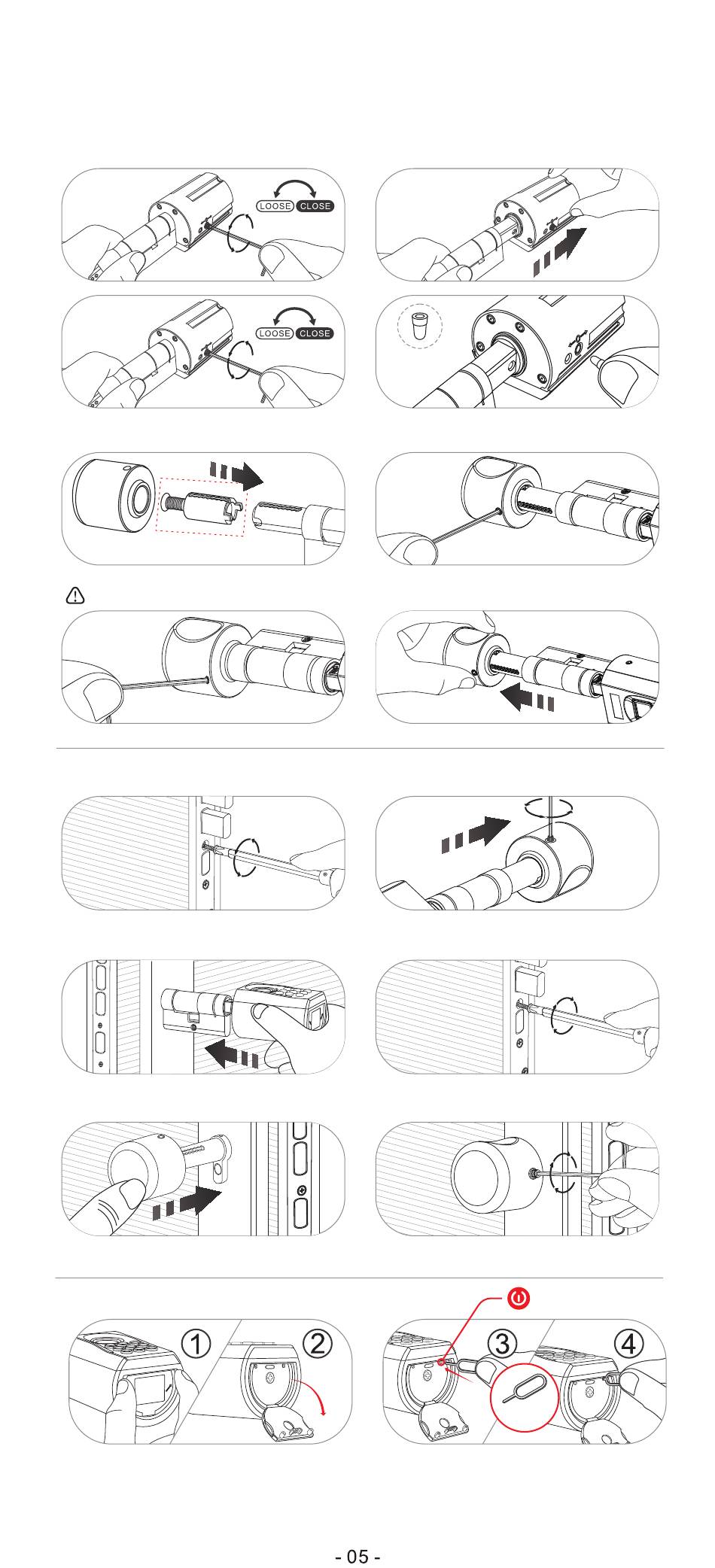

Installation pictures
1. Remove the fixing screw and
original cylinder
3.The lock cylinder is installed into
the lock hole from the outside
5. Install rear handle
Restarting diagram
1. Open the silicone cover
2. Find the Thimble in the attached accessories
3. Find the hole where the restart button is located
4. Insert the thimble into the hole and press the restart button
Silicone plug
2. Take out the screws and take
out the rear handle
4. Install fixing screws
6. Fix rear handle screw
Thimble
Restart
