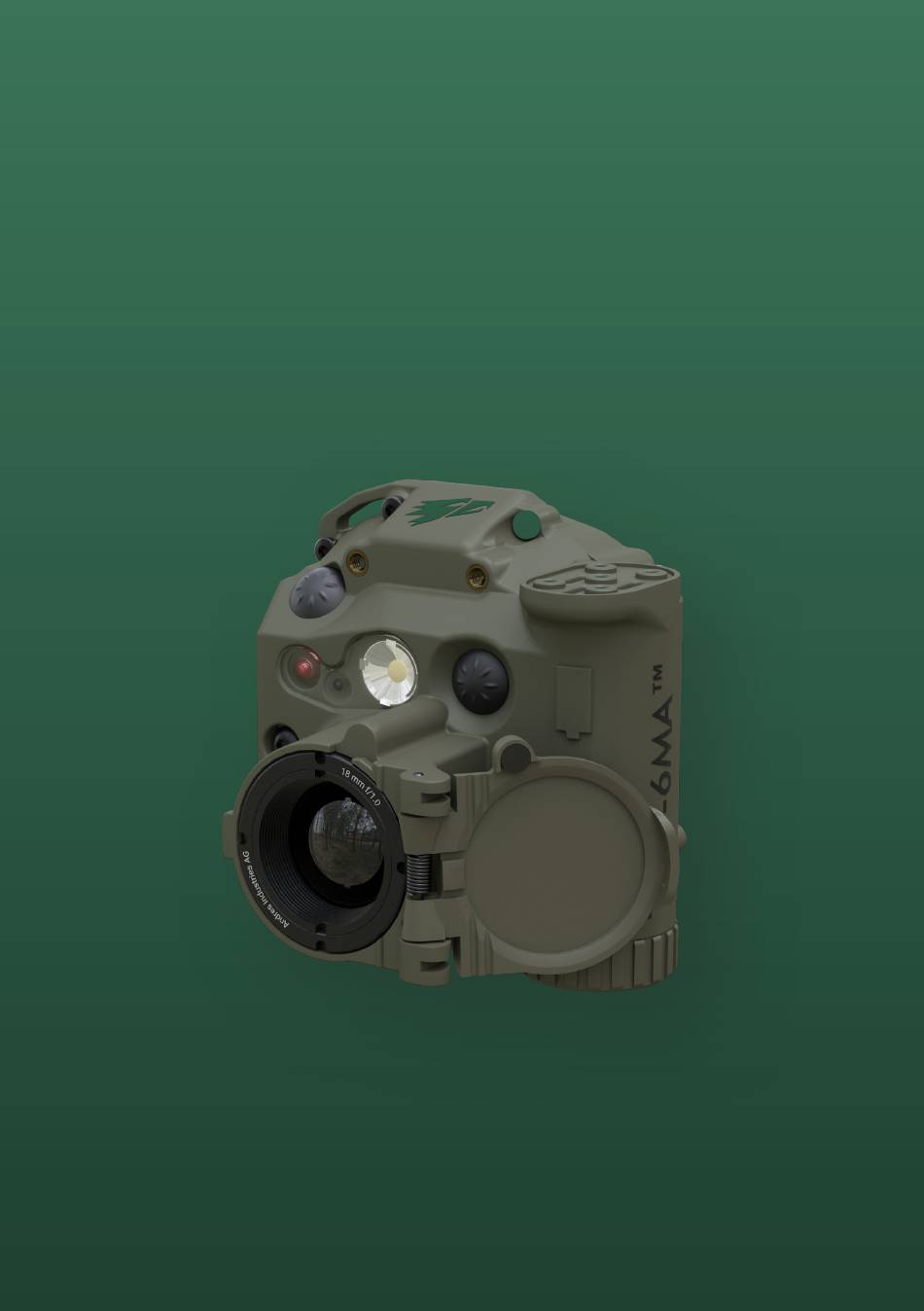

- Page 1 TILO™ Manual Version of: 03/2025 from 1.0.16...
-
Page 2: Tilo™ Quick Start Guide
TILO™ Quick start guide Valid for (from firmware 1.0.16): TILO-3Z™ TILO-6MA™ TILO-3Z+™ TILO-Z20™ TILO-3Z+2×™ TILO-M20™ TILO-6Z+™ TILO-Z15™ Switch on: Switch off: 1. Slide cover in the direction of the arrow 1. Close the cover 2. The cover opens automatically 2. Lock by sliding in the direction 3. -
Page 3: Insert/Change Of Battery
Insert/change of battery Open the battery compartment by turning the screwcap to the left. Insert a CR123 battery accor- ding to the polarity indicated on the battery com- partment. Close the battery compartment again. Note When the device connector is not in use, it must always be sealed watertight with the cap provided. -
Page 4: Display Text And Symbols
Display text and symbols NORM Shutter Flag Current zoom level Current thermal filter Battery level indicator Active outline mode Range estimation HOG NFOV XFOV... -
Page 5: Preface By The Inventor
We will continue to develop the TILO™ concept, Dr. Björn Andres but we also have many other ideas in the area of (CEO of Andres Industries AG) thermal optics. Be curious about our next develop- November 2020 ments. -
Page 6: Table Of Contents
Table of contents TILO™ Quick start guide......2 Special features of the TILO-6™ ..... 17 Operation ..........2 Button functions in the menu ....17 Insert/change of battery ......3 Power supply ........... 20 Display text and symbols ......4 CR123 Lithium battery ...... -
Page 7: Scope Of Delivery
Scope of delivery TILO Battery CR123 Manual Quick Start guide Handstrap Cleaning cloth Big outdoor case... -
Page 8: Thermal Imaging Functions
Thermal imaging functions Switching on/off Vignetting (increasing contrast deterioration from To switch on, open the protective flap. Opening the outside), possible vertical stripes, general con- the flap releases the thermal sensor and the device trast reduction, increased noise. starts up within a few seconds. The thermal image is then displayed on the screen. - Page 9 CR = Cold Red With this filter, the heat sources are shown in black and the coldest areas of the image in red. This tactical filter is preferably used at night to reduce glare. BCR = Boost Cold Red The boost variant of the CR filter optimizes the brightness dynamics. This means that even less warm objects are displayed better.
- Page 10 BH = Black Hot In contrast to the white-hot filter, the heat sources are displayed in black here. This makes the thermal image look much more natural. However, as a much larger area of the image is displayed in lighter shades of gray, the glare effect is more pronounced at night.
-
Page 11: Calibration
Calibration Shutter Flag If the device is in manual calibration mode, the Manual calibration need for a new calibration is indicated by a small Once manual calibration has been performed, au- empty square at the top right of the screen (p.4). It tomatic calibration will no longer take place. -
Page 12: Brightness Adjustment
IR LED for illumination. example, move very little. Switch on and off the IR mode TILO-3Z+2×™: To switch on the IR mode, press buttons 3 and 4 Due to the optical magnification the zoom levels simultaneously for at least one second. -
Page 13: Ir-Check
IR-Check flashing (different settings selectable in the menu) An IR symbol appears on the screen when the IR SOS (lamp flashing in SOS Morse code ... – – – ...) LED is activated. The following flashing functions can be set in the Normally the IR mode is only used if an image LED menu: intensifier is used at the same time. -
Page 14: Navigating And Saving In The Menu
Navigating and saving in the menu Note Briefly press buttons 2 or 1 to navigate up and down The video output of the CR, RH and CG fil- the menu (similar to the arrow buttons on a compu- ters is not in the corresponding colors, but ter). -
Page 15: Fine Collimation
you want to save your collimation by left) to correct it. If it is too high, for example, pressing and holding button 1 again press button 1 (moves the image downwards) and start the collimation by pressing and to correct the error. holding button 1 on SET After completing the adjustment, be sure to Now mount the TILO in the appropriate posi-... -
Page 16: Example Range Estimation Men
MEN = standing person (1,76m / 5‘9“) row, the TILO will be permanently blocked. Other HOG = hog (1m / 3.28ft / 39.4”) users will then no longer be able to do anything BUCK = roebuck (0.75m / 2.46ft / 29.5”) with the device and may contact us. -
Page 17: Submenu Nvffc
Submenu NVFFC There are two ways to get an optimal image from Non-Volatile Flat Field Correction the beginning: This can be used to save the last calibration so that Shortly after switching on, perform a manual the device starts with it and the picture reaches the calibration (p.38). - Page 18 Video output deactivated i.e. OLED AVID screen is active Output in PAL mode (Europe) NTSC Output in NTSC mode (USA) COLL Nr 1-6 Six different settings can be settings can be called up or saved ZOOM 0.8x Any zoom level except 1 can be acti- vated/deactivated FILT Cold Red...
- Page 19 MISC Power supply (CR123/16650/18650) (De)activation of the on/off function FLAP of the lens flap SHUT (De)activation of the shutter PIN query (ON/OFF) Frequency of request (after 1-255x switching on) Warning at device start WARN (0-10 starts before the query is warned) Change PIN NVFFC Saving the calibration...
-
Page 20: Power Supply
Power supply CR123 Lithium battery The TILO is supplied and operated with two CR123 batteries. In particularly cold environments, reliable operation is only possible with batteries. At very low temperatures (for example -30°C) the runtime of batteries is also reduced. To compensate the diffe- rence in thickness it is necessary to use the battery sleeve. -
Page 21: Use Of Accessories
Use of Accessories Helmet adapter (for tactical helmets) Suitable for ballistic helmets. The Shroud remains free to attach other NVDs. Suitable for all TILO mo- dels. By pressing the release lever, the TILO can be removed within one second. Incl. spacer for non- ballistic (shock) helmets and extension piece for for a larger distance to the eye. -
Page 22: Shutter Eyecup
Shutter Eyecup he shutter eyecup is attached like the normal eyecup but is equipped with a mechanism which causes an automatic closure of the eyepiece when the TILO™ is removed or folded up. As a result, leakage of scat- tered light is prevented even more reliably. However, the shutter eyecup is significantly longer and less comfortable to wear. -
Page 23: Tilo Afocal Lens
This allows the lens to be attached and detached quickly. However, this accessory is limited only to the TILO-6 series and the TILO-3Z+2x. (see p. 28). Most recommended is TILO-M20™ and TILO-Z20™. No. 382017... -
Page 24: Battery Extension
Battery Extension If this is screwed onto the TILO instead of the normal battery cap, either two normal batteries or an exten- ded battery, e.g. TILO Rechargeable Battery, can be used. This way, the operating time of the TILO can be more than doubled to 6-7h. -
Page 25: Troubleshooting
Troubleshooting Problem Cause Solution Batteries flat or wrong polarity Check polarity or insert fresh battery Brightness set too dark Increase brightness with button 1 Device does not switch Device was previously switched off by Open the flap and press button 4 on / screen remains pressing a button for 1 second... -
Page 26: Technical Data
Do not use strong chemical cleaning agents. ned to you completely refurbished. We will also be happy to advise you personally. Technical data Model TILO-3Z+™ TILO-3Z™ TILO-3Z+2×™ TILO Order number 380104 380103 380105 User group civil use... - Page 27 TILO O-6MA™ TILO-6Z+™ TILO-Z15™ TILO-Z20™ TILO-M20™ 380109 380107 382042 382041 382040 hority only civil use authority only <40mK <15mK <20mK 640x512 0,8x,1x, 2x, 4x, 8x 5 µm / 12 µm uncooled microbolometer e deactivated) + software calibration (NUC) + manual calibration harmless oost) Cold Red, (Boost) Cold Green, Rainbow, Rainbow HC, Iron Bow, Glowbow, Hottest PAL/NTSC...
-
Page 28: Warranty Declaration
The device may discretion of Andres Industries AG, a free repair or only be opened by the manufacturer. Otherwise, a free delivery of spare parts or replacement of the damage to the device may occur that is not cove- similar or corresponding product. -
Page 29: Eu Declaration Of Conformity
EU Declaration of Conformity (No. 0012) Andres Industries AG Weißenseer Weg 37 13055 Berlin states that the thermal imaging devices TILO-3Z™ (380103) comply with the relevant harmonization legislation of TILO-3Z+™ (380104) Directive 2014/35/EU. TILO-3Z+2x™ (380105) The following harmonized standards relating to TILO-6Z+™... - Page 30 Notes...
- Page 31 Notes...
- Page 32 Andres Industries AG CEO: Dr. Björn Andres Weissenseer Weg 37 13055 Berlin Germany Service & Support Tel.: +49 30 45 80 39 00 E-Mail: info@andres-industries.de Web: www.andres-industries.de serial number TILO RoHS compliant IP 68 MIL-STD-810G Power in: 5V /CR123 3V production date www.andres-industries.de...
