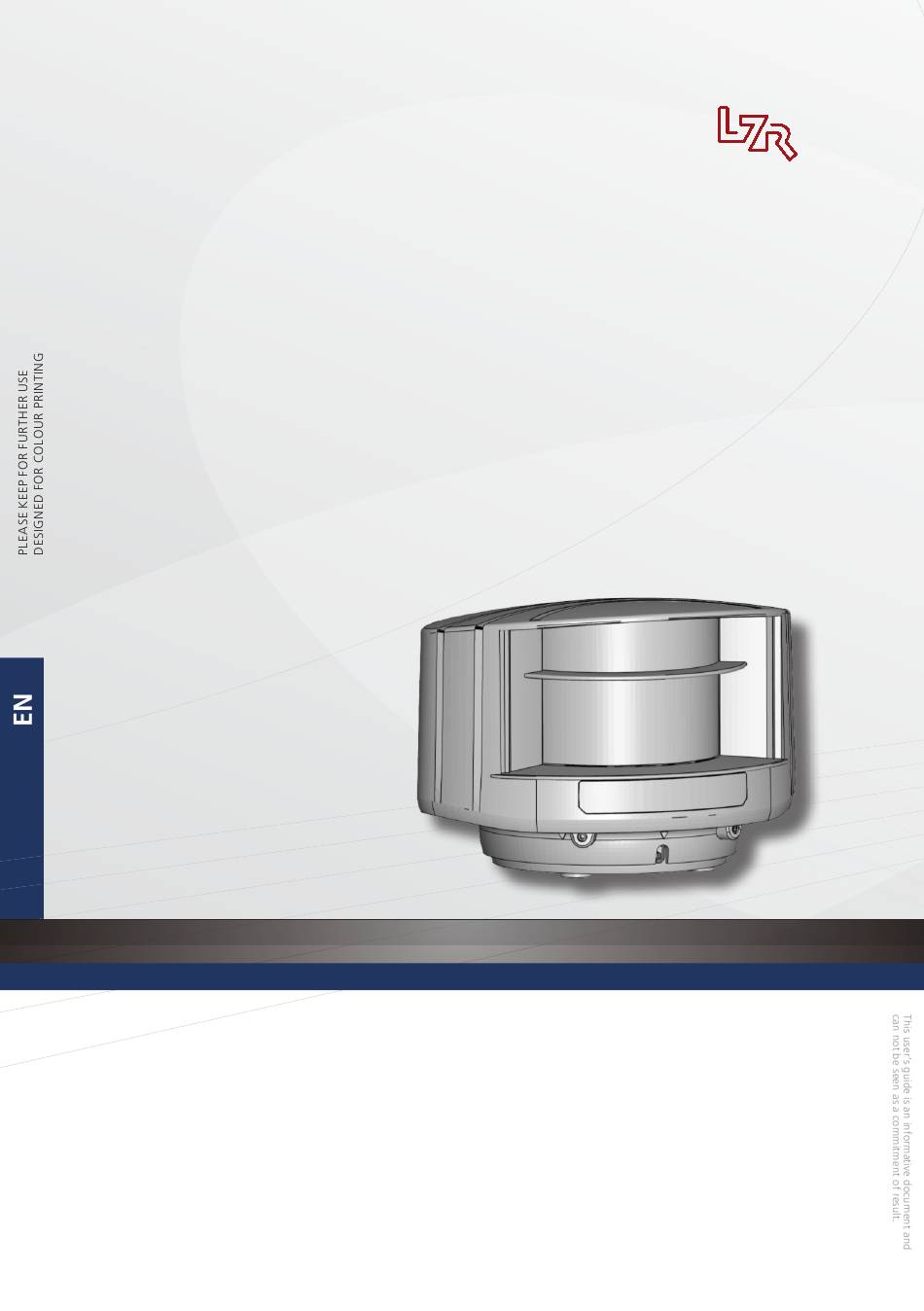

- Page 1 ® -H800 OPENING & SAFETY SENSOR FOR BARRIERS* *Other applications of the device do not correspond to the intended purpose. The use on industrial doors is not permitted and infringe the patent EP 1 470 314 B1. User’s Guide for product version 0200 and higher...
-
Page 2: Installation And Maintenance
SAFETY The device emits invisible IR and visible laser radiations. IR laser: wavelength 905nm; output power 0.10mW (Class 1 according to IEC 60825-1) Visible laser: wavelength 635nm; output power 0.95mW (Class 2 according to IEC 60825-1) The visible laser beams are inactive during normal functioning. The installer can activate the visible lasers if needed. -
Page 3: Led Signals
DESCRIPTION laser window - emission laser window - reception visible laser beams LED-signal notch for tilt angle adjustment screws for position lock adjustable bracket connector protection cover LED-SIGNALS R1: Relay 1 - detection in opening field R1 R2 detection no detection R2: Relay 2 - detection in safety field E: Error status error... -
Page 4: Basic Principles
If the reference is farther away, you need to adjust the detection field width to the width of the boom. In order to maximise safety in case of mixed traffic (vehicles and trucks), an additional vertical detection zone is recommended (LZR-I100). -
Page 5: Application Requirements
2 references, 1 for each sensor 0° SINGLE ACCESS LANE 90° 45° • 2 LZR-H800 • 1 reference 0° SAFETY FIELD OPENING FIELD To optimize detection for high vehicles like trucks, add a vertical safety field just before the barrier (LZR-I100). - Page 6 DO’s & DON’Ts (for EN 12453 safeguarding level E-conformity) 60 cm 35 - 45 cm Install the sensor at a mounting height of 35 - 45 cm. If the reference beam is too low or too high, contact If the barrier is only used by trucks, the mouting height with the boom cannot be excluded.
-
Page 7: Mounting And Wiring
MOUNTING & WIRING Carefully read the application requirements and tips before mounting the sensor. The mounting position of the sensor is crucial for the good functioning of the barrier. Use a mounting post or a Position the mounting bracket Open the protection cover, plug mounting bracket to fix the sensor and fasten the 4 screws firmly in the connector and position the... -
Page 8: Field Positioning
FIELD POSITIONING The detection field and reference position are very important for the good functioning of the barrier. 0° 45° 90° Activate the visible laser beams by remote control to position To turn them off, use the same sequence. the sensor correctly. After 15 min. - Page 9 MOUNTING SIDE & REFERENCE Select the correct mounting side with or without reference. WITH REFERENCE WITHOUT REFERENCE (RECOMMENDED) The safety field secures the area around the boom The safety field detects the presence of a car, but the area around the boom is not secured according to EN and protects against contact with the boom in 12453.
- Page 10 SAFETY FIELD FIELD DIMENSIONS Before launching a teach-in, the field dimensions can be adjusted by remote control. Value C must be adapted to the width of the boom: • when the reference point is farther away than the desired detection field width when a mounting side without reference has been selected •...
- Page 11 OPENING FIELD FIELD DIMENSIONS Before launching a teach-in, the field dimensions can be adjusted by remote control. WIDTH same width as 0.5 m 9.9 m 2.2 m safety field DEPTH if no opening field is 0.5 m 9.9 m 2.5 m needed for a field depth of 5 m You can also increase or decrease the field by 10 cm:...
-
Page 12: Remote Control Adjustments
REMOTE CONTROL ADJUSTMENTS (OPTIONAL) Select value 3 or higher to reject pedestrians. All objects wider than the chosen will be detected. PEDESTRIAN FILTER opening field approximate values STANDSTILL IN OPENING FIELD: select the amount of time relay 1 should stay active in case a car MAX. - Page 13 REMOTE CONTROL ADJUSTMENTS (OPTIONAL) DETECTION TRAJECTORY opening field BIDIRECTIONAL bidirectional detection approaching + going away UNI 400% unidirectional detection only approaching in any direction UNI 200% unidirectional detection only approaching towards the barrier/gate UNI 100% unidirectional detection only approaching within width of barrier/ gate UNI 50% unidirectional detection...
-
Page 14: How To Use The Remote Control
HOW TO USE THE REMOTE CONTROL After unlocking, the first LED If the red LED flashes quickly after unlocking, you To end an adjustment session, flashes red and the sensor need to enter an access code from 1 to 4 digits. always lock the sensor. -
Page 15: Troubleshooting
TROUBLESHOOTING No blue LED There is no power. Check cable and connexion. The polarity of the power Check the polarity of the power supply. supply is inverted. All LEDs have been de- Activate the LEDs by remote control: activated by remote control. Only blue LED Power on without test signal Connect red and blue wires to test entrance or... -
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS Technology LASER scanner, time-of-flight measurement (4 laser curtains) Detection mode Motion and presence Max. detection field 9.9 m x 9.9 m Remission factor > 2 % Angular resolution 0,3516 ° Emission characteristics IR LASER: Wavelength 905 nm; output power 0.10mW; Class 1 (IEC/EN 60825-1) Visible LASER: Wavelength 635 nm;...
