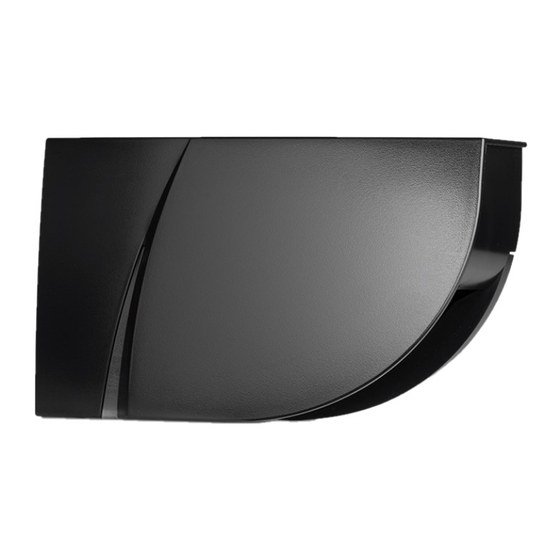

LZR FLATSCAN 3D SW User Manual

For automatic swing doors
Hide thumbs
Table of Contents

Advertisement

Quick Links

Visit website for
available languages
of this document.

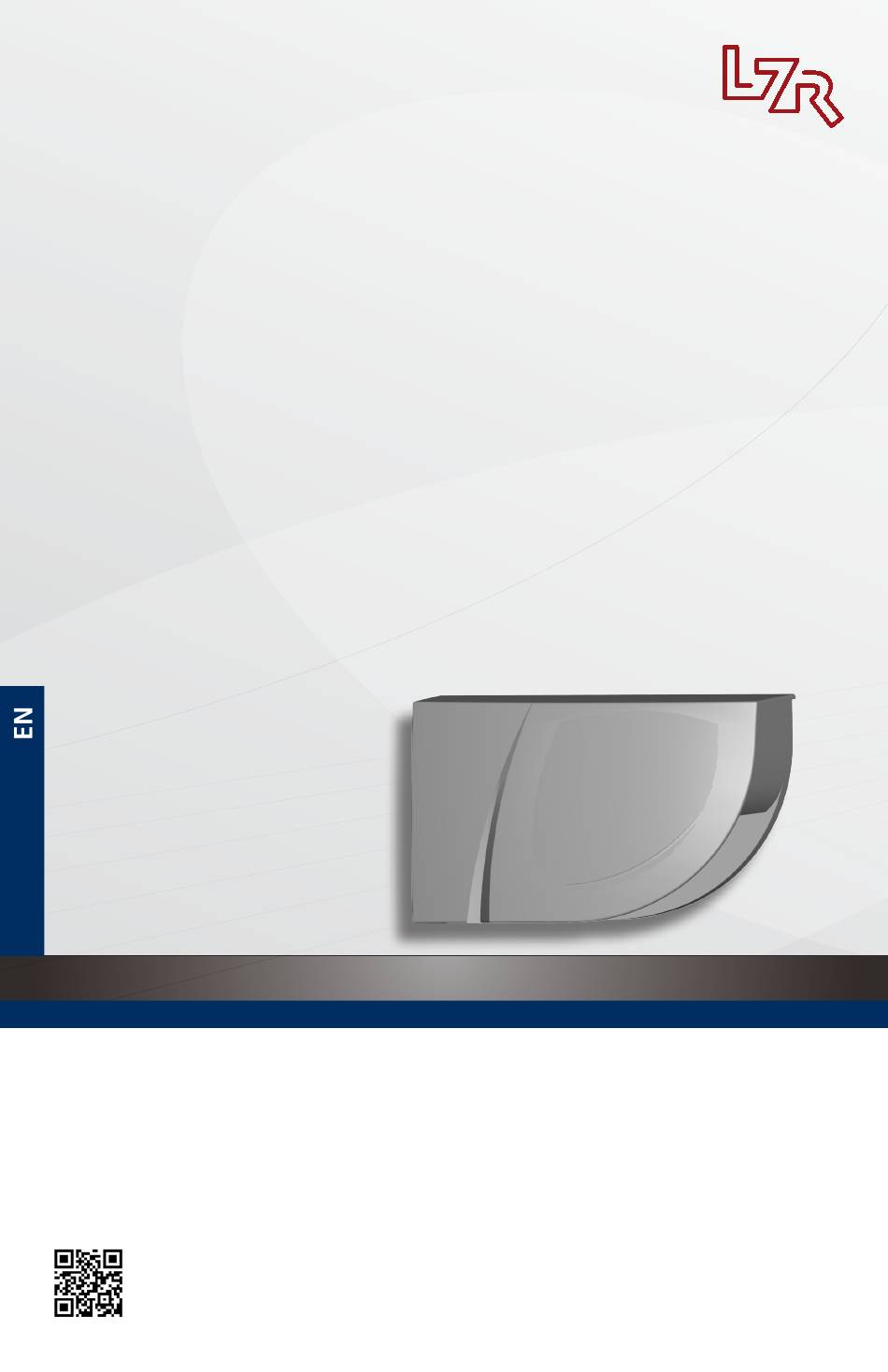

75.0036.02 LZR-FLATSCAN 3D SW 20210215
LZR
-FLATSCAN 3D SW
®
SAFETY SENSOR
FOR AUTOMATIC SWING DOORS
User's Guide for software version SW 0100 and higher
(refer to tracking label on product)
Page 1 of 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FLATSCAN 3D SW and is the answer not in the manual?

Questions and answers

Related Manuals for LZR FLATSCAN 3D SW

Summary of Contents for LZR FLATSCAN 3D SW

  • Page 1 -FLATSCAN 3D SW ® SAFETY SENSOR FOR AUTOMATIC SWING DOORS User’s Guide for software version SW 0100 and higher (refer to tracking label on product) Visit website for available languages of this document. 75.0036.02 LZR-FLATSCAN 3D SW 20210215 Page 1 of 16...

  • Page 2: Installation Tips

    Only trained and Always test for proper and the header cover qualified personnel are operation before leaving profile must be correctly recommended to install the premises. grounded. and set up the sensor. Page 2 of 16 75.0036.02 LZR-FLATSCAN 3D SW 20210215...
  • Page 3 14. cap and screws (flexible kit) primary-secondary connector 10. laser window 15. flexible tube SPACER FLEX TUBE KIT 70.5753 70.0202 PRIMARY-SECONDARY CABLE POWER CABLE 35.1329 20.5416 75.0036.02 LZR-FLATSCAN 3D SW 20210215 Page 3 of 16...
  • Page 4 FOREWORD The FLATSCAN 3D SW can be paired with another FLATSCAN 3D SW or a FLATSCAN SW. The installation steps are identical for both product versions. For optimum safety and to access all features (e.g. opening functions), the FLATSCAN 3D SW must be the primary sensor.
  • Page 5 «click» Use a plug to close the secondary sensor. Secure the lock screw to avoid vibrations during door movement. Secondary sensor = sensor connected to the primary sensor by pass-through cable 75.0036.02 LZR-FLATSCAN 3D SW 20210215 Page 5 of 16...
  • Page 6 WIRING TO DOOR CONTROLLER BEA recommends using a FLATSCAN 3D SW as the primary sensor. Determine the appropriate length for the door loop. Cut the excess to avoid undesired detections caused by the flexible tube. Pass the power cable through the flexible tube and Create a loop with the wires of the power cable and connect the white plug to the white connector.

  • Page 7: Wiring: Cables

    3 Knowing-act door and control does not have secondary activation. Use a BR3-X (function 22) and LE21. 4 O3 is only operational when the gray wires of the FLATSCAN 3D SW are connected to activation on the door controller, from the primary sensor.

  • Page 8: Testing And Adjusting

    Verify that the sensor system complies with ANSI 156.10 per the AAADM walk test. Make appropriate adjustments to the sensor and/or door control, if necessary, to ensure that the system is ANSI 156.10 compliant. Page 8 of 16 75.0036.02 LZR-FLATSCAN 3D SW 20210215...
  • Page 9 The Virtual Push Button(s) may be placed outside of the detection field but within a limit of maximum detection field range specifications. To operate, the two gray wires of the FLATSCAN 3D SW must be connected (as the primary sensor) to the activation on the door controller with the 10-wire cable provided.
  • Page 10 C and D: a teach-in overwrites these values automatically. * The actual dimensions depend on the mounting height (40 in at 13 ft). In order to change these settings by remote control, adjust DIP switch 4 to ON. Page 10 of 16 75.0036.02 LZR-FLATSCAN 3D SW 20210215...
  • Page 11 See page 8 See page 9 Factory reset Factory reset of all values of all values exept field dimensions and output configurations FACTORY VALUE 75.0036.02 LZR-FLATSCAN 3D SW 20210215 Page 11 of 16...

  • Page 12: How To Use The Remote Control

    ADJUSTING ONE OR MORE PARAMETERS CHECKING A VALUE x = number of flashes = value of the parameter = field width: 2.35 m RESTORING TO FACTORY VALUES full reset partial reset Page 12 of 16 75.0036.02 LZR-FLATSCAN 3D SW 20210215...

  • Page 13: Service Mode

    • To enter Service Mode, push and hold the button for at least 3 seconds. The LED will turn off. • To exit Service Mode, push and hold again for at least 3 seconds. Service Mode is deactivated automatically when a teach-in is launched. 75.0036.02 LZR-FLATSCAN 3D SW 20210215 Page 13 of 16...

  • Page 14: Troubleshooting

    If the door cycle is completed successfully, check the sensor. If not, verify the door controller, the wiring, or a radar sensor. Keep a minimum distance of 6 inches between the FLATSCAN SW and radar sensors or use the LZR®-Flatscan protective cover to avoid unwanted reactions of the door.
  • Page 15 6 x every 3 seconds. If the door does not close, cut power supply position. and restore it once the door is fully closed. Launch a new teach-in (closed door). 75.0036.02 LZR-FLATSCAN 3D SW 20210215 Page 15 of 16...

  • Page 16: Technical Specifications

    UL325, and International Building Code). Verify that all appropriate industry signage, warning labels, and placards are in place. Tech Support & Customer Service: 1-800-523-2462 General Tech Questions: techservices-us@BEAsensors.com | Tech Docs: www.BEAsensors.com Page 16 of 16 75.0036.02 LZR-FLATSCAN 3D SW 20210215...
