FOR USE ON: UNVENTED GAS FIREPLACE MODELS:
(A,HW)VFP24FP(20,30)L, (A,HW)VFP24FP30L10, VFHS-20/10T, VFHS-20R
LEAVE THIS MANUAL WITH THE OWNER FOR FUTURE REFERENCE.
CAUTION
Sharp Edges! Use gloves and eye protection
when installing.
HARDWARE PACKAGE
#10 x ½"PHILLIPS HEX HEAD SCREW (6)
#10 x ½"PHILLIPS HEX HEAD SCREW (6)
#8-18 x ½" PHILLIPS TRUSS HEAD SCREW (1)
#8-18 x ½" PHILLIPS TRUSS HEAD SCREW (1)

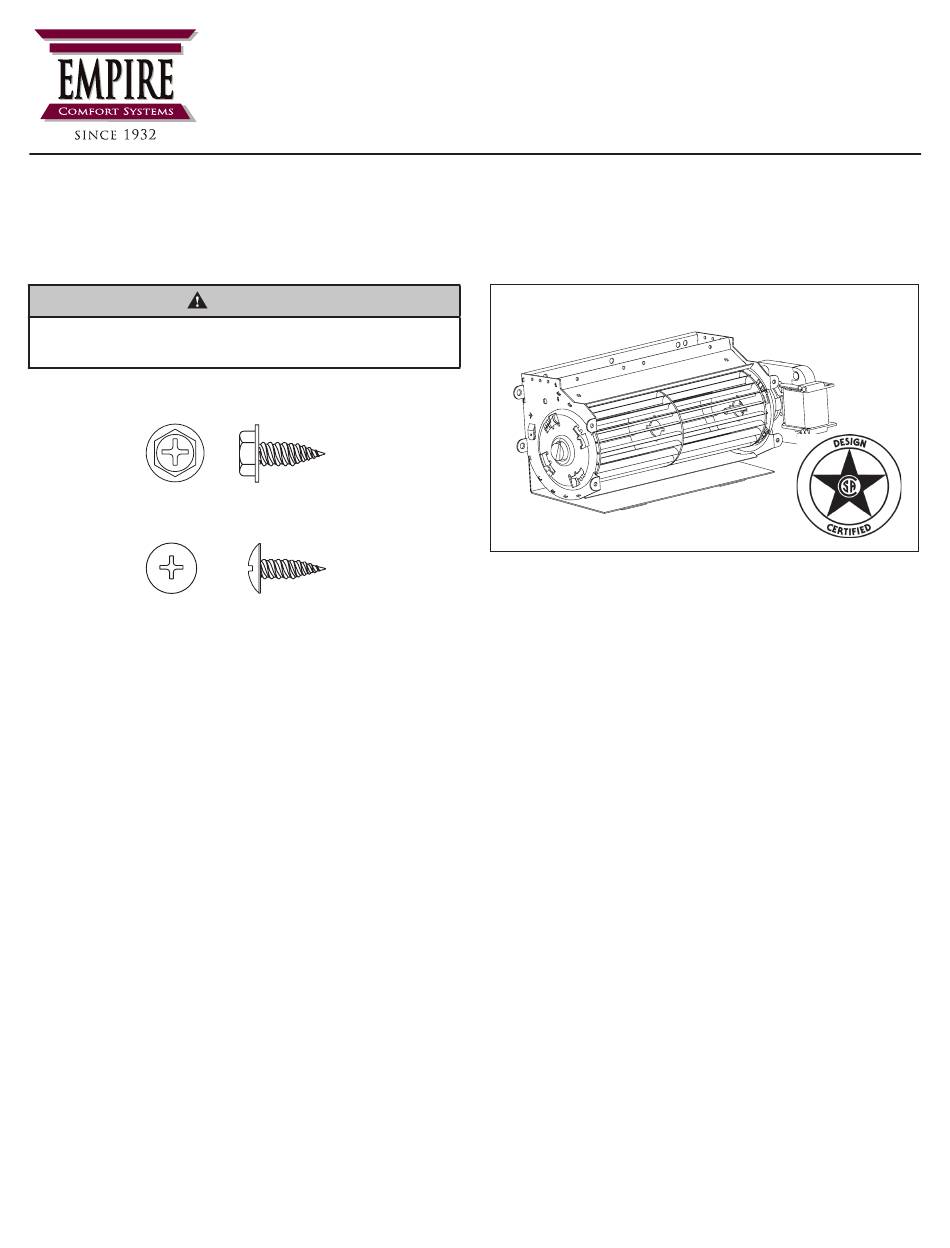

INSTALLATION INSTRUCTIONS
FBB6 - 1 BLOWER KIT
FBB6 - 1 BLOWER
Page 1
Advertisement
Related Manuals for Empire Comfort Systems FBB6-1
Summary of Contents for Empire Comfort Systems FBB6-1
- Page 1 INSTALLATION INSTRUCTIONS FBB6 - 1 BLOWER KIT FOR USE ON: UNVENTED GAS FIREPLACE MODELS: (A,HW)VFP24FP(20,30)L, (A,HW)VFP24FP30L10, VFHS-20/10T, VFHS-20R LEAVE THIS MANUAL WITH THE OWNER FOR FUTURE REFERENCE. CAUTION FBB6 - 1 BLOWER Sharp Edges! Use gloves and eye protection when installing. HARDWARE PACKAGE #10 x ½”PHILLIPS HEX HEAD SCREW (6) #10 x ½”PHILLIPS HEX HEAD SCREW (6)
- Page 2 INSTALLING BLOWER 7. Insert blower assembly in left side of outer casing. Motor with wiring will be to the inside of the outer casing, blower chute Remove or lower bottom louver. will be facing upward. See Figure 4. Remove upper louver. Remove screen front by lifting upward on screen front.
- Page 3 14. Place blower shield side adjacent to motor. Route blower motor 25. Position blower shield beneath left flange on burner assembly. wires through Heyco bushing on blower shield side. See Figure Align clearance hole on left flange of burner assembly with screw hole on blower side shield. 26. Replace burner assembly. 27. Attach burner assembly to blower shield with one (1) 10 x 1/2"...
- Page 4 OPTIONAL BLOWER INSTALLATION INSTRUCTIONS (cont.) Wiring 30. Attach rear log support to inner casing with three (3) or four (4) 10 x 1/2" screws from step 4. The appliance, when installed, must be electrically grounded in 31. Place and align blower diverter on top of inner casing. Attach accordance with local codes or, in the absence of local codes, with deflector to top of inner casing with two (2) 10 x 1/2" screws.
- Page 5 OPTIONAL BLOWER INSTALLATION INSTRUCTIONS (cont.) FBB6 PARTS LIST Index Part Description 11508 FAN CONTROL BRACKET R2503 FAN CONTROL 11301 BLOWER DIVERTER R2099 CORD SET R1410 STRAIN RELIEF BUSHING 25794 BLOWER BASE ASSEMBLY R2804A BLOWER ASSEMBLY R5804 WIRE HARNESS R1404 SNAP BUSHING 11507 BLOWER SHIELD - SIDE 25795...
-
Page 6: Master Parts Distributor List
For the current list, please click on the Master Parts button at www.empirecomfort.com. Please note: Master Parts Distributors are independent businesses that stock the most commonly ordered Original Equipment repair parts for Heaters, Grills, and Fireplaces manufactured by Empire Comfort Systems Inc. Star-Fire Distributors... -
Page 7: Service Notes
SERVICE NOTES 26004-2-0616 Page 7... - Page 8 Empire Comfort Systems Inc. Belleville, IL If you have a general question about our products, please e-mail us at info@empirecomfort.com. If you have a service or repair question, please contact your dealer. www.empirecomfort.com Page 8 26004-2-0616...
