Bench Installation

1.
Remove Blower Access Panels. See Figure 1.
f i r e - p a r t s . c o m
DVCT40 SHOWN
2.
3.
Hand bend tab as shown in Figure 3 and secure with
(2) screws.
HAND BEND
TAB INWARD
HAND BEND
TAB INWARD
37001-4-1118
INSTALLATION INSTRUCTIONS
FBB21 BLOWER
FOR USE ON: DVCT(36,40,50) SERIES FIREPLACES
Sharp edges. Use protective gloves when installing.

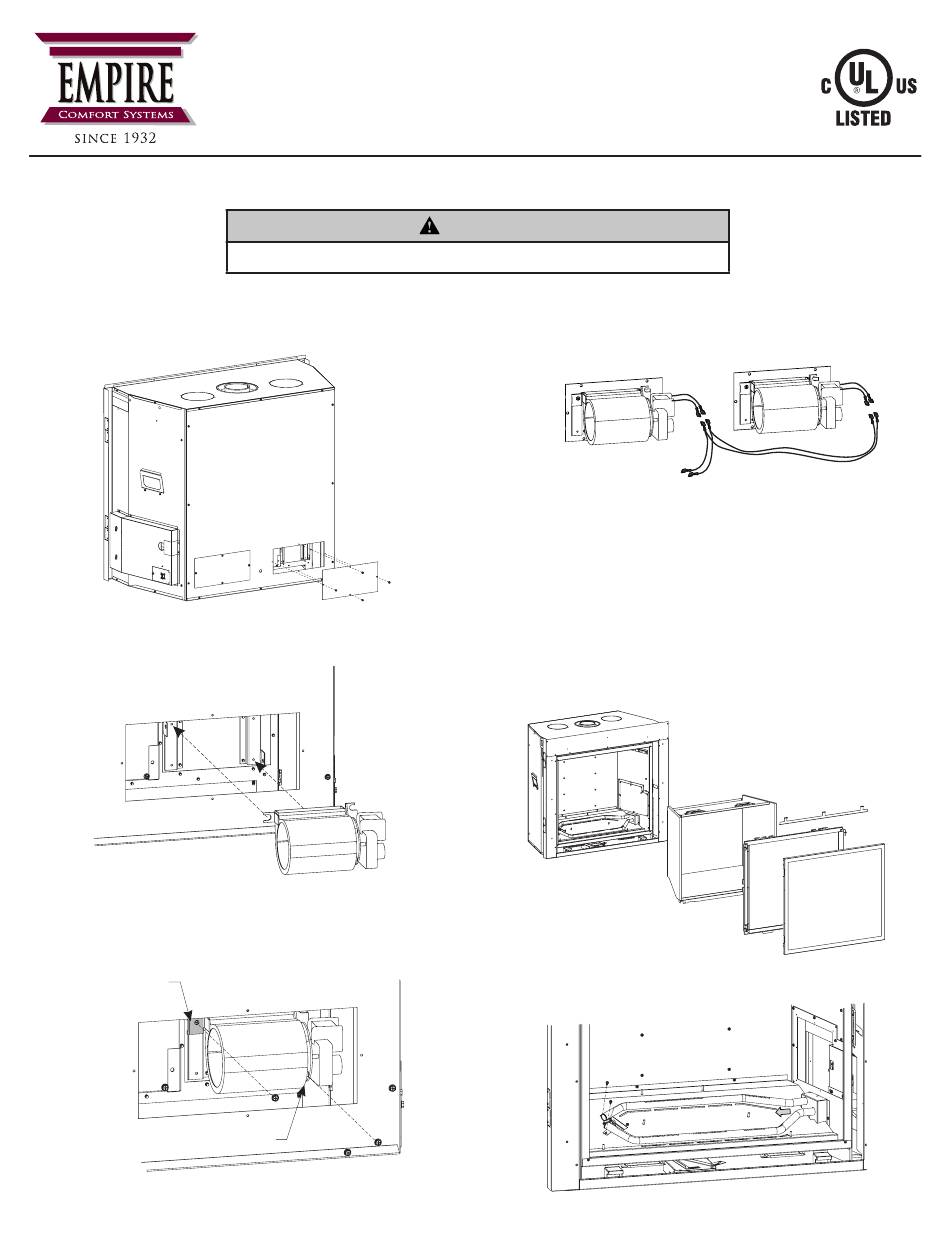

Figure 1
Figure 2
Figure 3
AUTO VARIABLE-SPEED-TWIN
CAUTION
4.
Remove protective connectors on Wire Assembly from
fireplace and discard. Connect Wire Harness to both blowers
and the other end to the Wire Assembly supplied with the
fireplace. See Figure 4.
TO WIRE ASSEMBLY
(MODULE)
5.
Replace Blower Access Panels removed in step 1.
See Figure 1.

Installation After Placement of Unit in Wall

Remove the following items: See Figure 5.
1.
Screen barrier (See Homeowner's Manual, Maintenance
and Service).
Glass Frame Assembly (See Homeowner's Manual,
Maintenance and Service).
Liners (See separate liner instruction document).
DVCT40 SHOWN
2.
Remove front and rear burner. See Figure 6.
DVCT40 SHOWN
GAS-FIRED
Figure 4
Figure 5
Figure 6
Page 1
