Empire Comfort Systems FBB4 Installation Instructions

INSTRUCTIONS MUST BE LEFT WITH OWNER FUTURE REFERENCE AFTER INSTALLATION.
ATTENTION: Install blower assembly before connecting gas inlet
supply line
NOTE: Junction box on right side o replace must be pre-wired
at time o replace installation or use with blower assembly. It is
recommended that an ON/OFF wall switch be installed that will
activate the power supply to the replace by a qualied electrician.
WIRING
The appliance, when installed, must be electrically grounded in
accordance with local codes or, in the absence of local codes, with
the National Electrical Code, ANSI/NFPA 70, if an external electrical
source is utilized.
This appliance is equipped with a three-prong [grounding]
plug for your protection against shock hazard and should
be plugged directly into a properly grounded three-prong
receptacle. Do not cut or remove the grounding prong from
this plug. For an ungrounded receptacle, an adapter, which has
two prongs and a wire for grounding, can be purchased, plugged
into the ungrounded receptacle and its wire connected to the
receptacle mounting screw. With this wire completing the ground,
the appliance cord plug can be plugged into the adapter and be
electrically grounded.
A factory installed junction box is located on the lower right side of
the replace. Wiring must be ed to the junction box and attached
to the receptacle that is provided. Leave approximately 6" o wire
in the junction box or connection.
18862-5-0220
INSTALLATION INSTRUCTIONS
FBB4 BLOWER KIT
STANDARD MILLIVOLT VALVE MODELS

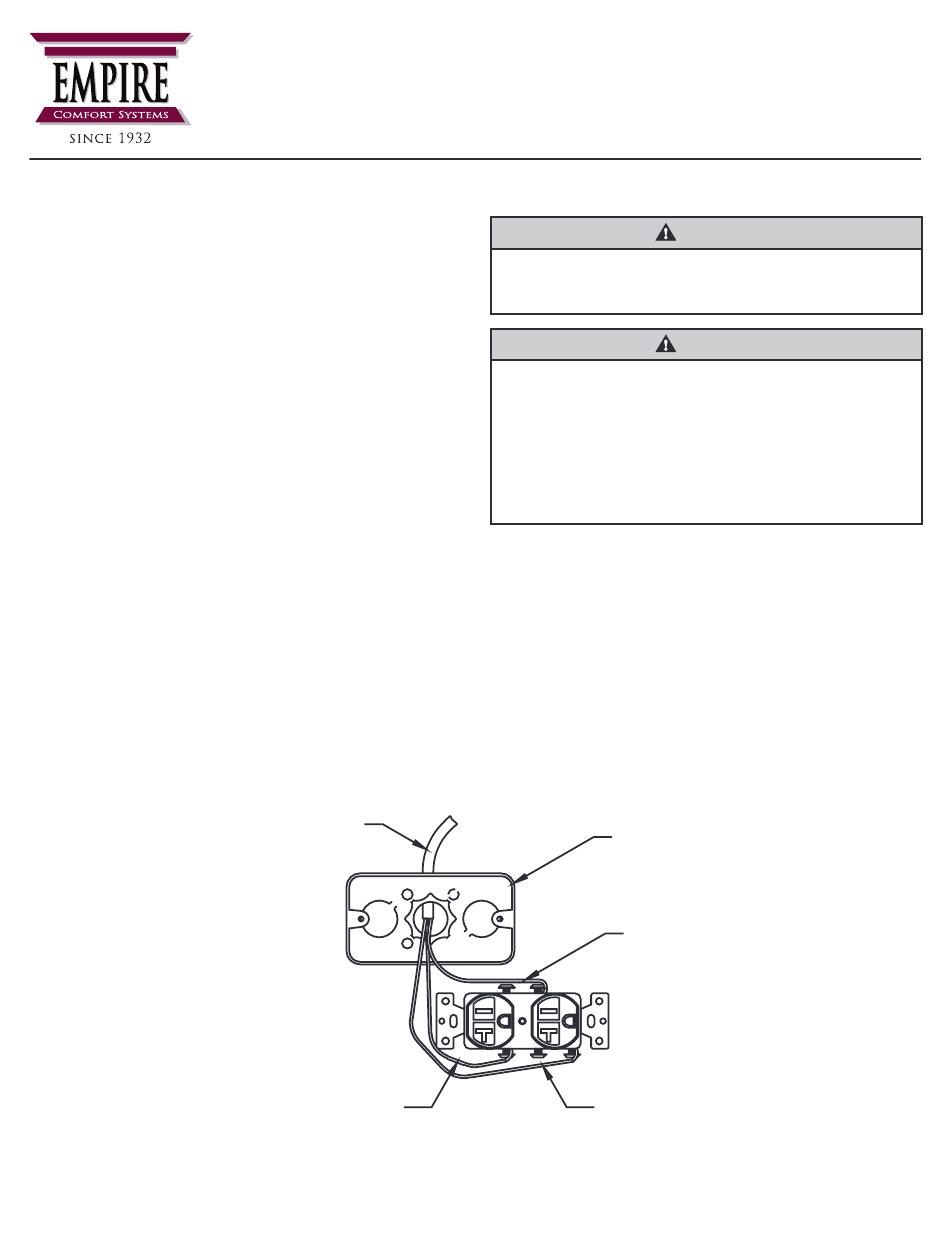

JUNCTION BOX CONNECTIONS
110 VOLT
POWER
SUPPLY
WHITE
Empire Comfort Systems Inc. • Belleville, IL
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and dangerous
operation. Verify proper operation after servicing.
All wiring should be done by a qualied electrician
and shall be in compliance with all local, city and
state building codes. Before making the electrical
connection, make sure that main power supply is
disconnected. The appliance, when installed, must be
electrically grounded in accordance with local codes or,
in the absence of local codes, with the national electrical
code ANSI/NFPA 70 (latest edition).
Attach black wire to one side of the receptacle and white wire to
opposite side o receptacle. The ground wire should be attached to
the green (ground) screw.
JUNCTION
BOX
BLACK
GROUND
CAUTION
CAUTION
Page 1
