Summary of Contents for Parrot Uncle F8001BK

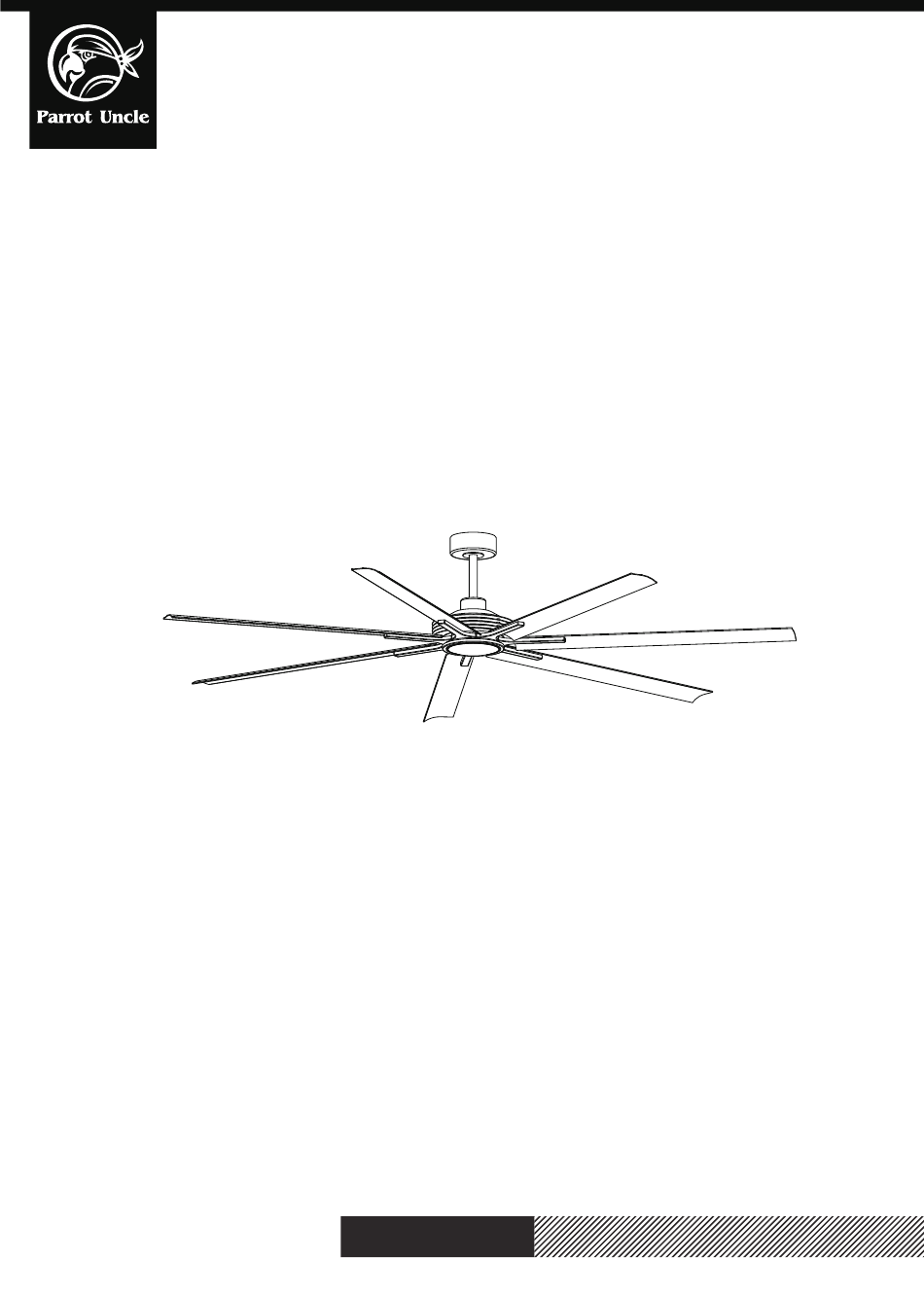

  • Page 1 F8001BK/F8002BK www.parrotuncle.com...
  • Page 2: Safety Information

    F8001BK/F8002BK Installation & Operating Instructions for the Parrotuncle Owner's Installation,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Safety Information 1.To reduce the risk of an electrical blow, electricity on the WARNING:To reduce the risk of injury, knife supports protective switch or the safety box went out before starting.
  • Page 3 F8001BK/F8002BK Installation & Operating Instructions for the Parrotuncle Owner's Installation,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Plastic wire nut (8PCS) Mounting screws (2PCS) Spring washers (4PCS) Blade arm screw (15PCS) Washer (5PCS) Star washers (4PCS) Washer (22PCS)
  • Page 4 F8001BK/F8002BK Installation & Operating Instructions for the Parrotuncle Owner's Installation,Manual WA RN ING: SHUT POW ER OFF AT FUSE OR CIR CU IT BREAKER Mount the mounting bracket to the outletbox using two self tapping screws, two stars washers and two washers.
  • Page 5 F8001BK/F8002BK Installation & Operating Instructions for the Parrotuncle Owner's Installation,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Pass the downrod assembly through the canopy,canopy cover,coupling cover. Run the wires of the fan-motor assembly through the downrod assembly. Thread the hanging pin through the fan-motor assembly and insert the "R"locking pin.
  • Page 6 F8001BK/F8002BK Installation & Operating Instructions for the Parrotuncle Owner's Installation,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Use wire connecting nuts supplied with the fan FROM POWER SOURCE INPUT AC 110- 120 VOLT 60Hz GREEN BLACK 3.5AMPS. WHITE...
  • Page 7 F8001BK/F8002BK Installation & Operating Instructions for the Parrotuncle Owner's Installation,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Attand the blade arm to fan-motor assembly use two blade arm scerws. Repeat this step six times. Phillips screwdriver Attand the blade to blade arm use three blade scerws and three washer.
  • Page 8 F8001BK/F8002BK Installation & Operating Instructions for the Parrotuncle Owner's Installation,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Loosen three screws from the fan-motor assembly. Phillips screwdriver Connect the wire connector to the LED light assembly. Attach the LED light assembly to the fan-motor assembly use three screws.
  • Page 9 F8001BK/F8002BK Installation & Operating Instructions for the Parrotuncle Owner's Installation,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCU IT BREAKER If there are two or more ceiling fans installed in the same house, in order to prevent your ceiling fans from being affected by the remote control of the adjacent ceiling fans.
  • Page 10 F8001BK/F8002BK Installation & Operating Instructions for the Parrotuncle Owner's Installation,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Size of product Ø5.9in...
  • Page 11: After Installation

    F8001BK/F8002BK Installation & Operating Instructions for the Parrotuncle Owner's Installation,Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER AFTER INSTALLATION WOBBLE The fan blades have been adjusted in the factory to minimize any wobble. NOTE: CEILING FANS TEND TO MOVE DURING OPERATION DUE TO THE FACT THAT THEY ARE...

This manual is also suitable for:

F8002bk
