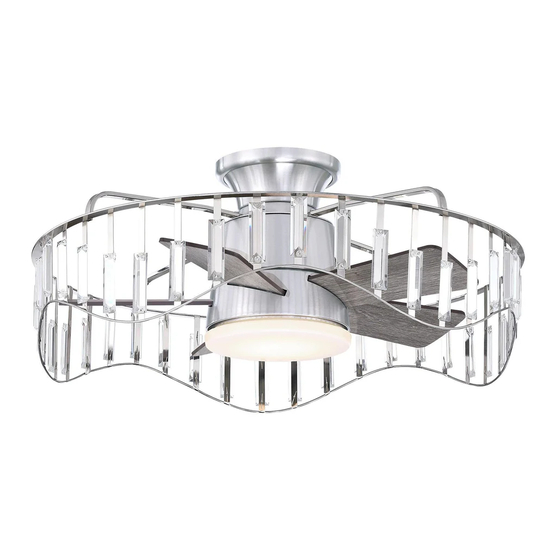

Parrot Uncle F8279110V Installation & Operating Instructions Manual

Parrot Uncle F8279110V Installation & Operating Instructions Manual

Advertisement

Quick Links

F8279110V
English
/ Espanol
ñ
/ Francais
ç
www.parrotuncle.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the F8279110V and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Parrot Uncle F8279110V

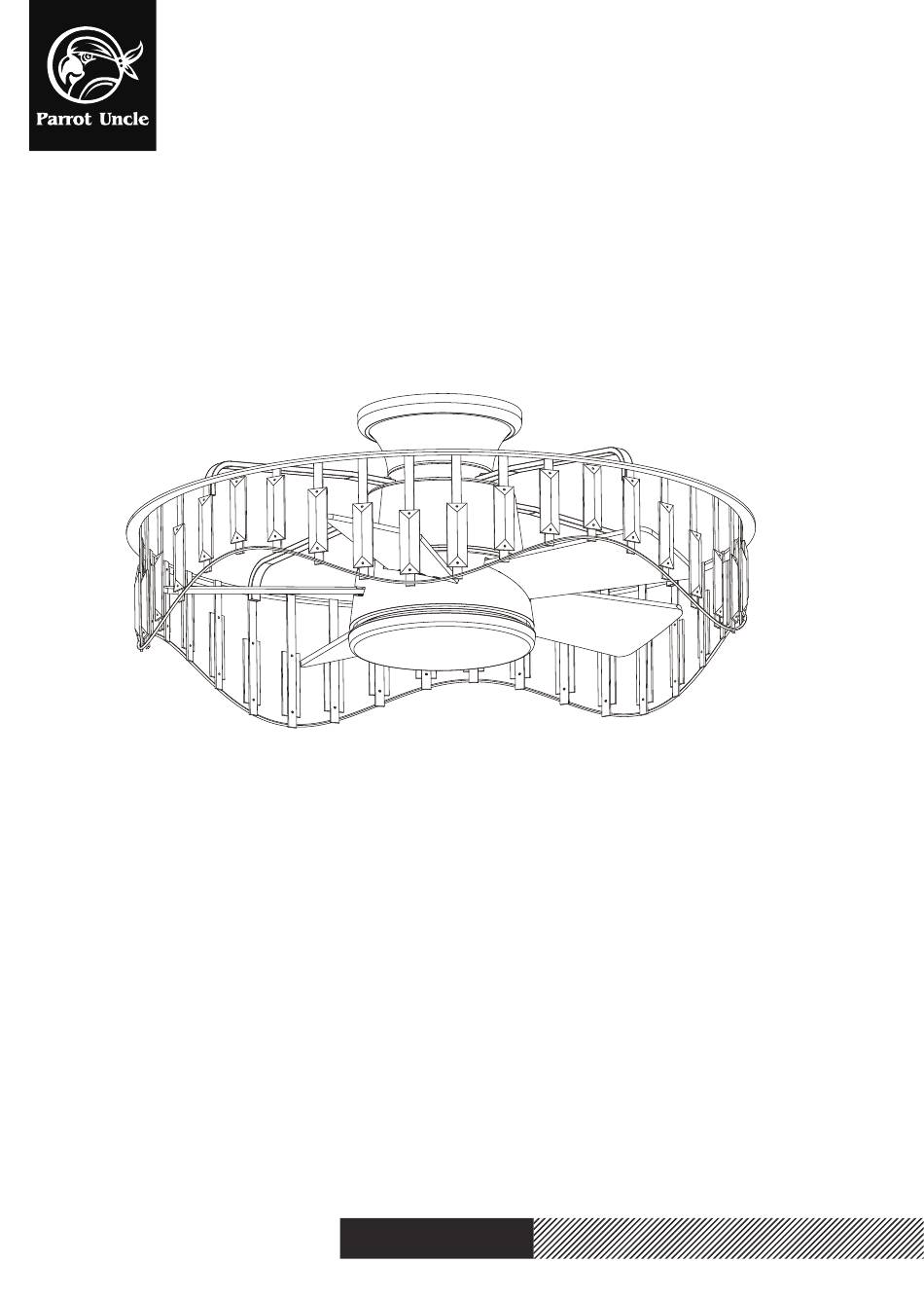

  • Page 1 F8279110V English / Espanol ñ / Francais ç www.parrotuncle.com...
  • Page 2: Safety Information

    F8279110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Safety Information 1. To reduce the risk of electric shock, the electricity has been WARNING: TO reduce the risk of personal injury, turned off at the circuit breaker or fuse box before begin.
  • Page 3 F8279110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Plastic wire nut (4PCS) Mounting screws (2PCS) Blade screw (16PCS) Screws (2PCS) Washer (2PCS) Ceiling Bracket REMOTE CONTROL ( 1PC )
  • Page 4 F8279110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Check existing outlet box (not included) to ensure it is securely fastened to at least two points in a structural ceiling member and can support the full weight of the fan.Once verified, install ceiling plate to the outlet...
  • Page 5 F8279110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Outlet box WHITE (AC IN N) BLACK (AC IN L) BLUE (FOR LIGHT) BLUE (FOR LIGHT) WHITE (TO MOTOR N)
  • Page 6 F8279110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Remove and retain two opposing screws from the motor assembly, then loosen the remaining two screws. Mount your fan by sliding the motor assembly over the mounting bracket with the two loosened screws going into the “L”...
  • Page 7 F8279110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Please remove the flexible bushing prior to pushing the canopy trim ring up. Push the canopy trim ring up to conceal the screws, such that the mounting tabs seat into the dimpled grooves in the ceiling bracket midway between the screws.
  • Page 8 F8279110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Assemble the swith housing to the support bracket using the two key slots in the switch housing. Replace the previously removed screw and securely tighten all three screws.
  • Page 9: Operating Your Fan

    F8279110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Secure the shade to switch housing by twisting in a clockwise direction. Twist the shade gradually until it snaps on to the switch housing. Do not over-tighten.
  • Page 10 F8279110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER...
  • Page 11 F8279110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER WIRING SCHEMATIC DIAGRAM FOR RECEIVER WIRING SCHEMATIC DIAGRAM FOR RECEIVER Blue Black wire Light live-wire Power supply live-wire White...
  • Page 12 F8279110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER SIZE OF PRODUCT 7.09" 2.87" 11.14"...
  • Page 13: Troubleshooting Guide

    Measurements should be within 1/8 inch. b) If all deviation are less than 1/8 inch and the fan continues to wobble, please contact Customer Service Support@parrot Uncle. com to order a complimentary Blade Balancing Kit -If all deviation are less than 1/8 inch and the fan continues to wobble, please contact Customer service Support@Parrot Uncle.
  • Page 14: After Installation

    F8279110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER AFTER INSTALLATION Wobble The fan blades have been adjusted in the factory to minimize any wobble Note: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet.
  • Page 15 120Vac...
  • Page 21 Conecte los cables del motor a los cables del kit de luces mediante el conector molex de 9 patillas. Vuelva a colocar los tornillos retirados del paso 10 y asegure los tres tornillos.
  • Page 34 Connectez les fils du moteur aux fils du kit d'éclairage en utilisant la fiche molex à 9 broches. Replacez les vis retirées à l'étape 10 et fixez les trois vis.
