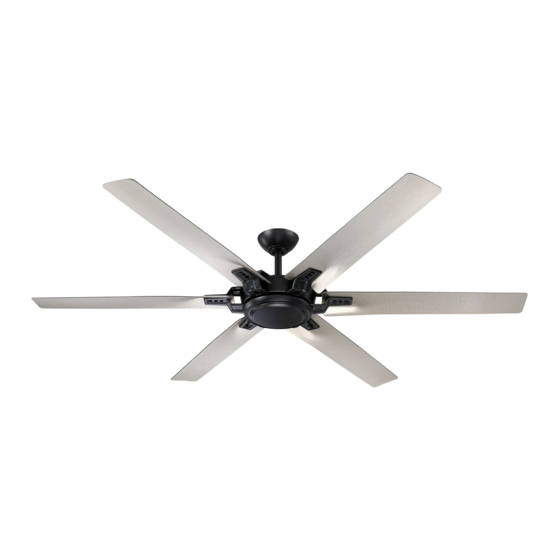

Summary of Contents for Parrot Uncle F8278110V

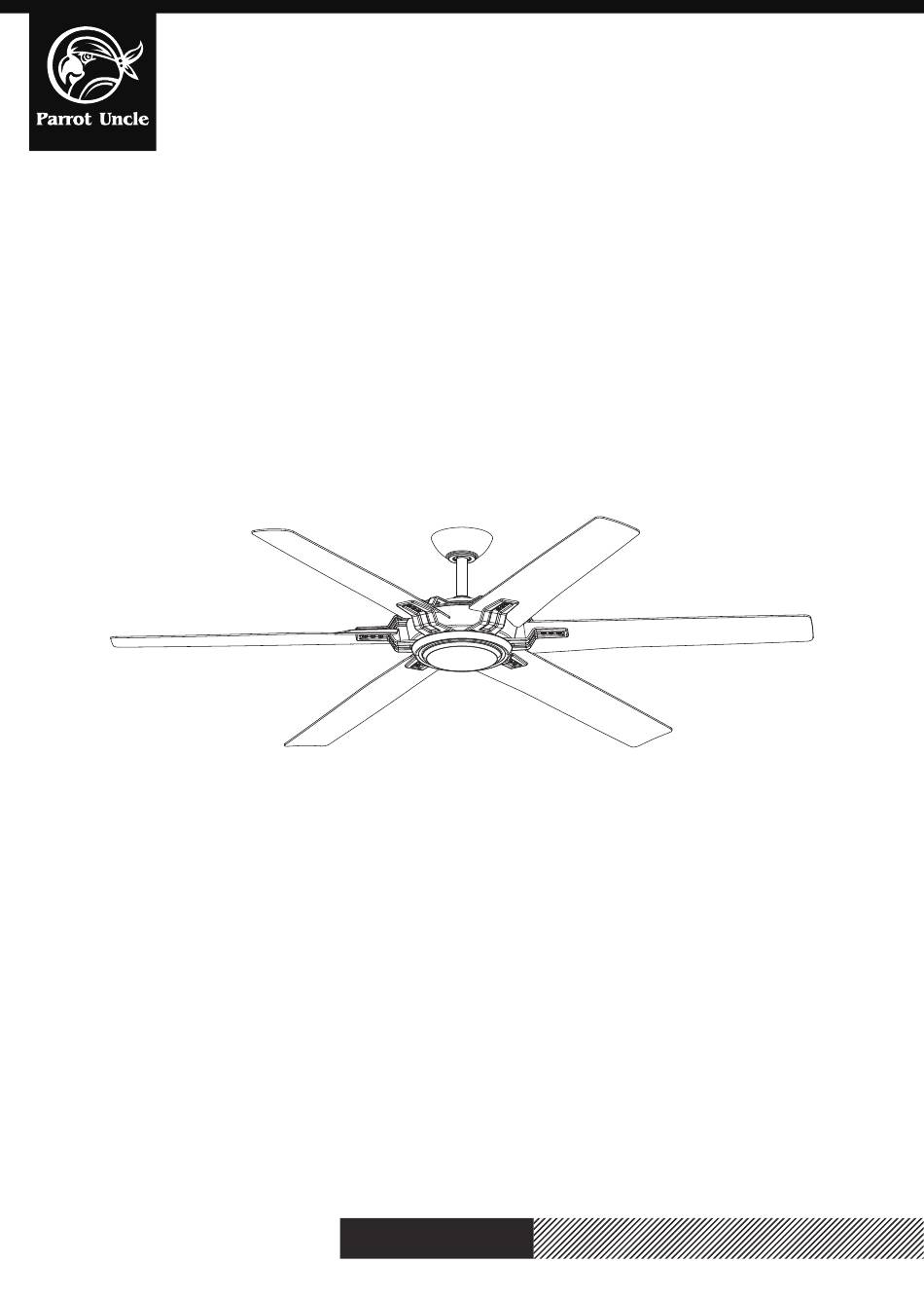

- Page 1 F8278110V English / Espanol ñ / Francais ç www.parrotuncle.com...
-
Page 2: Safety Information
F8278110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Safety Information 1. To reduce the risk of electric shock, the electricity has been WARNING: TO reduce the risk of personal injury, turned off at the circuit breaker or fuse box before begin. - Page 3 F8278110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Plastic wire nut (4PCS) Mounting screws Locknut (2PCS) (18PCS+1 Spare) Screws (2PCS) Washer Blace screws (42PCS+1Spare) (2PCS) Mounting bracet Hanging Pin 6"ball/downrod assembly...
- Page 4 F8278110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Screw the two mounting screws and washers to the outlet box.Slide the mounting bracket onto the screw through the T-slot.
- Page 5 F8278110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Slide downrod into the coupling on top of the motor. 6 to 9 in Install the hanging pin by aligning the holes in the coupling with holes in the downrod.
- Page 6 F8278110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER WHITE (AC IN N) BLACK (AC IN L) YELLOW (TO MOTOR) YELLOW (TO MOTOR U) GRAY (TO MOTOR) GRAY (TO MOTOR V)
- Page 7 F8278110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Securely attach and tighten the canopy cover over the screws in the mounting bracket utilizing the key slot twist-lock feature.
- Page 8 F8278110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER Assemble the cap to the threaded rod by twisting in a clockwise direction. Whole structure...
- Page 9 F8278110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER...
- Page 10 F8278110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER WIRING SCHEMATIC DIAGRAM FOR RECEIVER WIRING SCHEMATIC DIAGRAM FOR RECEIVER Black wire Black wire Power supply live-wire yellow To Motor wire...
- Page 11 F8278110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER SIZE OF PRODUCT 6.1" 2.0" 6.0" 12.9" 10.4"...
-
Page 12: Troubleshooting Guide
Measurements should be within 1/8 inch. b) If all deviation are less than 1/8 inch and the fan continues to wobble, please contact Customer Service Support@parrot Uncle. com to order a complimentary Blade Balancing Kit -If all deviation are less than 1/8 inch and the fan continues to wobble, please contact Customer service Support@Parrot Uncle. -
Page 13: After Installation
F8278110V Installation & Operating Instructions for the Parrot Uncle Owner's Installation, Manual WARNING: SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER AFTER INSTALLATION AFTER INSTALLATION Wobble The fan blades have been adjusted in the factory to minimize any wobble Note: ceiling fans tend to move during operation due to the fact that they are mounted on a rubber grommet.
