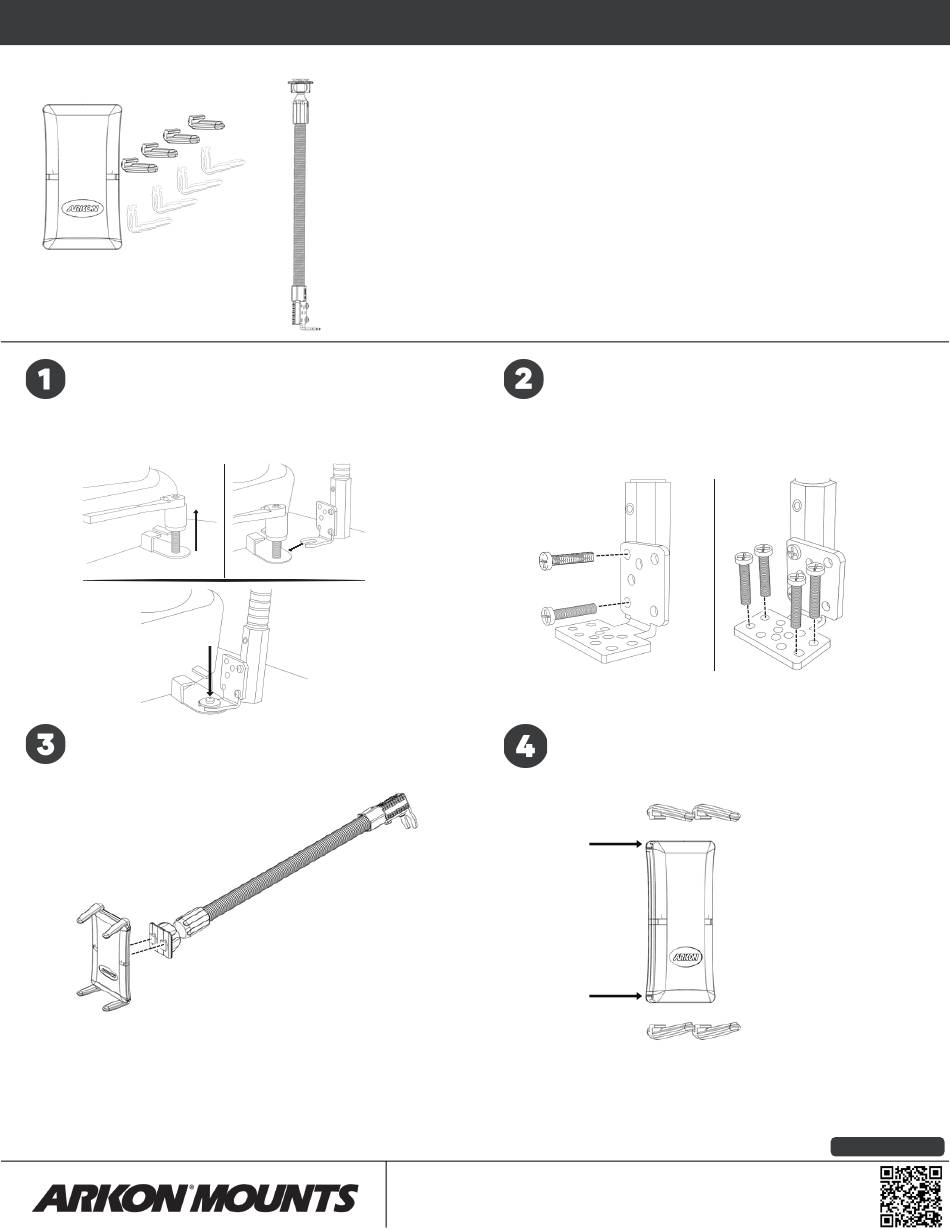

Arkon Slim-Grip SM688L22 Quick Start Manual

SM688L22 | Slim-Grip® Ultra Holder with 22" Gooseneck Seat Rail Mount
GN088-L22-SBH
SM060-2
Option 1 - Attaching the Passenger Seat Bolt
(a) Start by using a socket wrench to loosen the bolt on the
passenger seat track. (b) Next, insert the bolt bracket for
the seat track. (c) Lastly, ensure that the seat track bolt is
tightened securely.
(a) (b)
Install the Dual T-Tab Adapter into the Holder
Install the Dual T-Tab adapter by inserting it into the slot located
behind the holder. Then, slide the adapter upwards to ensure it is
securely in place.
WARNING
CHOKING HAZARD - Keep out of reach from children under 8 yrs. as they can choke or suffocate on parts included with this system
WARNING
Arkon® is not responsible for any damages caused to your device or yourself due to the installation or use of this mount. Do not install Arkon® products near areas that intefere with operation
of vehicles. Arkon® assumes no responsibility or liability for injury or death as a result of failure to install in a safe location. Arkon® is not responsible for any damages caused to vehicles,
product, or people due to the installation or use of this product.
(c)
USA (800) 841-0884
INT'L (626) 254-9005
Monday - Friday 9 am - 5 pm PST
Includes:
1 – Slim-Grip® Ultra Holder with Support Legs (SM060-2)
1 – 22" Gooseneck Seat Rail Pedestal (GN088-L22-SBH)
Important: Clean the application surface and make sure it is free of dirt, dust, and
grease before installation.
Compatibility: This holder is suitable for smartphones with cases measuring up to
7.25" tall.
Please note the SM060-2 packaging includes:
5 - Support Stoppers (SP-SM65PK) - Optional
Seat Rail Kit Hardware Specifications:
1 - Metal conduit (SPCONDUIT) - Optional
1 - Floor mounting bracket
4 - Phillips rounded heads screws (18-8 Stainless Steel, M4.2 Screw Size 25mm Long)
Option 2 - Floor Mounting
(a) Attach the floor mounting bracket to the mount,
adjusting its orientation as necessary for your vehicle. (b)
Next, secure the floor mounting bracket using the screws
included in the packaging.
(a) (b)
Floor Bracket
Installing the legs to the holder
Install the support legs required based on the
recommendations listed above. Slide the support legs into
the holder's support leg channels.
arkon.com
Designed in USA
©Arkon Resources, Inc.
Floor Bracket
Continued on page 2
