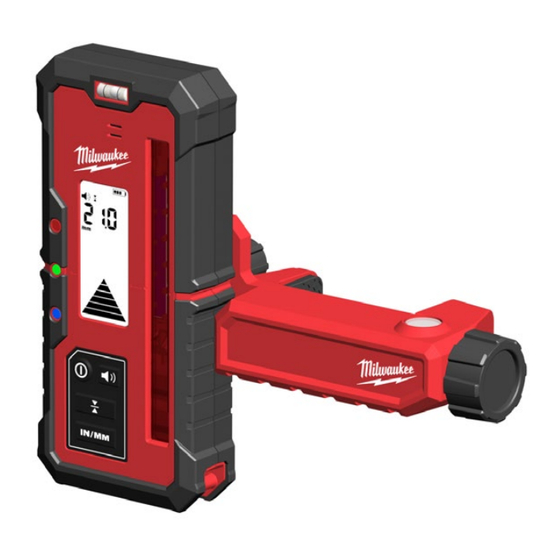

RD600
CONTENTS
Laser detector safety warnings...................................................................................................2
Safety instructions Battery ..........................................................................................................2
Specified conditions of use .........................................................................................................2
Technical data.............................................................................................................................2
Maintenance ...............................................................................................................................3
Symbols ......................................................................................................................................3
Overview.....................................................................................................................................4
Batteries .....................................................................................................................................5
Clamp .........................................................................................................................................6
Level ...........................................................................................................................................7
Start ............................................................................................................................................8
Direct read out ............................................................................................................................9
Settings.....................................................................................................................................10
Troubleshooting ........................................................................................................................11
Accuracy field check .................................................................................................................12
ENGLISH
1
Advertisement
Table of Contents
Related Manuals for Milwaukee RD600
Summary of Contents for Milwaukee RD600
-
Page 1: Table Of Contents
RD600 CONTENTS Laser detector safety warnings....................2 Safety instructions Battery ......................2 Specified conditions of use ......................2 Technical data..........................2 Maintenance ..........................3 Symbols ............................3 Overview.............................4 Batteries .............................5 Clamp ............................6 Level ............................7 Start ............................8 Direct read out ..........................9 Settings.............................10 Troubleshooting ........................11 Accuracy field check .........................12... -
Page 2: Laser Detector Safety Warnings
Please remove the battery if the device is not in use for a prolonged period of time. Operating time, approx. 40 h Use only genuine Milwaukee accessories. When using non-recommended accessories, you Operating temperature -20 – 50°C may receive incorrect measuring values. -
Page 3: Maintenance
Use only Milwaukee accessories and spare parts. Should components need to be replaced Waste batteries, in particular containing lithium and waste Electrical and electronic which have not been described, please contact one of our Milwaukee service agents (see our equipment contain valuable, recyclable materials, which can adversely impact the list of guarantee/service addresses). -
Page 4: Overview
OVERVIEW Clamp connection feature: mount the wall clamp here Back LCD screen Bubble level: for leveling the detektor in vertical position Speaker Sensor: determines the laser beam position Fuel gauge Accuracy Tone Front LCD screen Center line: align the laserbeam to this line Laser locator indicator LED: indicates the laserbeam position Power button: press to turn on / press and hold to turn off Volume of beep... -
Page 5: Batteries
BATTERIES Only use alkaline batteries. Do not use zinc-carbon batteries. If the detector will not be used for a long time, remove the batteries to protect against corrosion. After switch on the detector the fuel gauge will display the battery life. 100% If 25% is displayed, the batteries must be replaced as soon as possible. -
Page 6: Clamp
CLAMP The detector can be attached to the Milwaukee ROD with the clamp. ENGLISH... -
Page 7: Level
LEVEL Align the laser detector horizontally according to the level. ENGLISH... -
Page 8: Start
START On initial startup select the desired language (see chapter settings). The backlight will illuminate after any button press or when a laser beam is detecting on the sensor. The backlight will stay on for 15 seconds. The timer will reset every time a button is pressed or when a laser is sensed for the first time (i.e. -
Page 9: Direct Read Out
The RD600 is especially design for the Milwaukee laser M18 RLOH600, but can also be used as a detector for other laser with red laser beam. -
Page 10: Settings
SETTINGS Volume of beep Accuracy Units of measure Three settings are available The icon on the display will update to show current selection. The measurement setting will show in the display. high (≥ 95 dBA), Detector Accuracy in (dec) in (frac) level low (72 - 90 dBA), off. -
Page 11: Troubleshooting
2 hours to acclimate to ambient temperature before turning on the tool. If the detector freezes, press and hold the power button for 15 seconds or remove the batteries to reset. If problem persists, please contact an authorized MILWAUKEE service center for support. ENGLISH... -
Page 12: Accuracy Field Check
Should any deviation from listed product accuracy be found, please contact a MILWAUKEE service facility. Laser must be Failure to do so could result in rejection of warranty claim.
