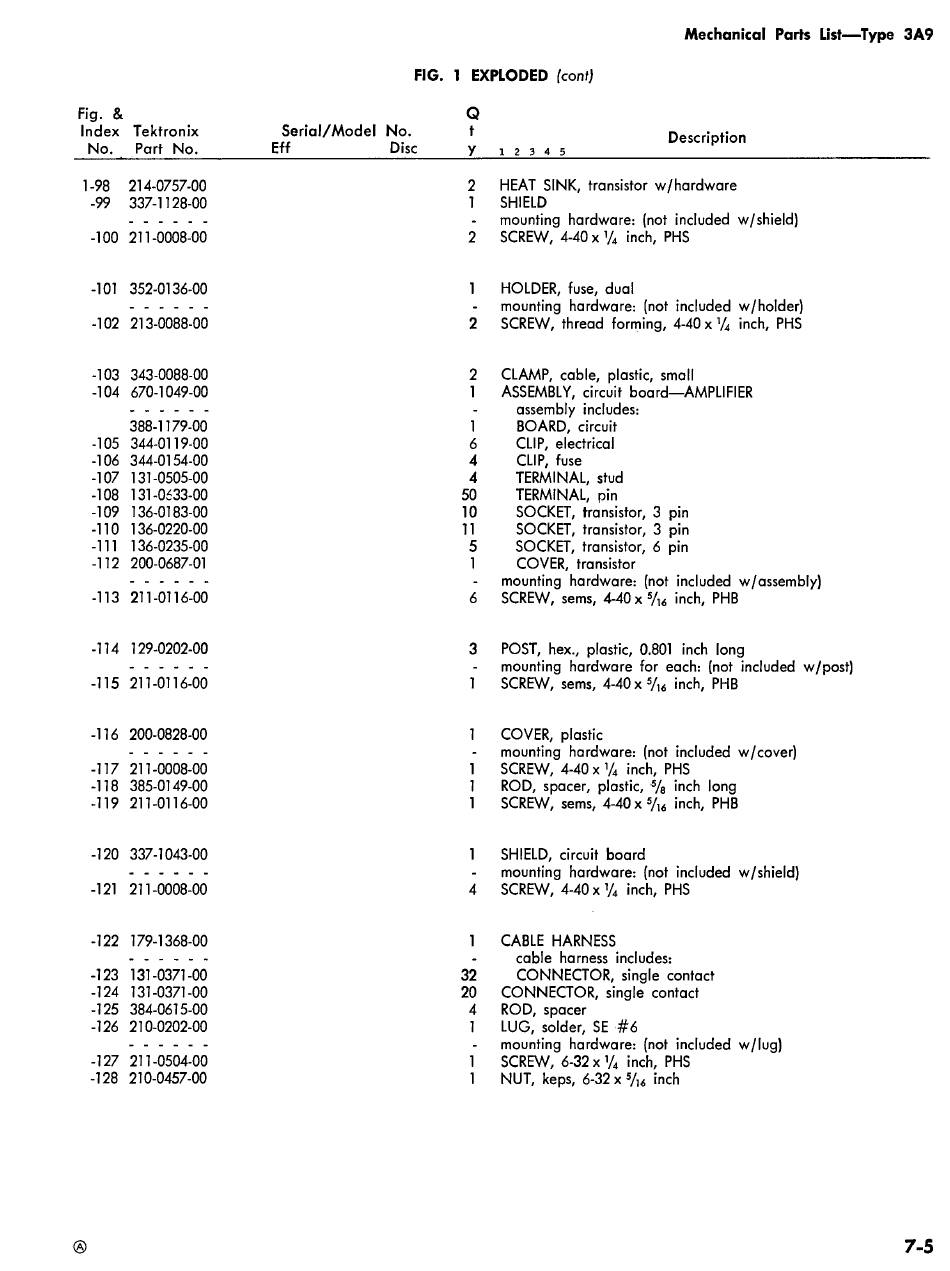

Mechanical Parts List—Type 3A9
FIG. 1 EXPLODED (cont)
Fig. & Q
Index Tektronix Serial/Model No. t Description
No. Part No. Eff Disc Y12345
1-98 214-0757-00 2 HEAT SINK, transistor w/hardware
-99 337-1128-00 1 SHIELD
-- eee - mounting hardware: (not included w/shield}
-100 211-0008-00 2 SCREW, 4-40x % inch, PHS
-101 352-0136-00 1 HOLDER, fuse, dual
cee eee - mounting hardware: (not included w/holder)
-102 213-0088-00 2 SCREW, thread forming, 4-40 x 4% inch, PHS
-103 343-0088-00 2 CLAMP, cable, plastic, small
-104 670-1049-00 1 ASSEMBLY, circuit board—AMPLIFIER
cee eee - assembly includes:
388-1179-00 1 BOARD, circuit
-105 344-0119-00 6 CLIP, electrical
-106 344-0154-00 4 CLIP, fuse
-107 131-0505-00 4 TERMINAL, stud
-108 131-0433-00 50 TERMINAL, pin
-109 136-0183-00 10 SOCKET, transistor, 3 pin
-110 136-0220-00 11 SOCKET, transistor, 3 pin
-111 136-0235-00 5 SOCKET, transistor, 6 pin
-112 200-0687-01 ] COVER, transistor
wee - mounting hardware: (not included w/assembly)
-113. 211-0116-00 SCREW, sems, 4-40 x 5/1¢ inch, PHB
-114 129-0202-00 3 POST, hex., plastic, 0.801 inch long
eee eee - mounting hardware for each: (not included w/post}
-115 211-0116-00 1 SCREW, sems, 4-40 x 5/,¢ inch, PHB
-116 200-0828-00 1 COVER, plastic
wee eee - mounting hardware: (not included w/cover)
-117 211-0008-00 1 SCREW, 4-40x 14 inch, PHS
-118 385-0149-00 1 ROD, spacer, plastic, */, inch long
-119 211-0116-00 1 SCREW, sems, 4-40 x 5/14 inch, PHB
-120 337-1043-00 1 SHIELD, circuit board
eee eee - mounting hardware: {not included w/shield)
-121 211-0008-00 4 SCREW, 4-40x % inch, PHS
-122 179-1368-00 1 CABLE HARNESS
wee eee - cable harness includes:
-123 131-0371-00 32 CONNECTOR, single contact
-124 131-0371-00 20 CONNECTOR, single contact
-125 384-0615-00 4 ROD, spacer
-126 210-0202-00 1 LUG, solder, SE #6
eee eee - mounting hardware: (not included w/lug)
-127 211-0504-00 1 SCREW, 6-32 Y, inch, PHS
-128 210-0457-00 1 NUT, keps, 6-32 x 5/44 inch
