APPROVAL:
ECO-198
Part Number Legend – PD2032-280XXX*-YYY
YYY -> Power Output
•
o 009 for 8.5W
o 008 for 7.5W
o 007 for 6.5W
o 006 for 5.5W
*XXX digits denote product branding
2801 E. Camelback Rd. Ste. #180
Phoenix, AZ 85016
jupiteresearch.com
DOCUMENT NO:
CDS – PD2032-280XXXX-YYY
Bellos Power Supply
Jupiter PN(s):
See part number legend
Electrical Specifications
Battery Cell Capacity
Power Output (±0.3W)
Max. Current Output
Resistance
Charging Current
Activation Time
User Interface
Cartridge Attachment
Activation
Notification
Low Battery Notification
Charging Indication
VER:
1.2
EFFECTIVE DATE:
12/07/2020
PAGE 1 OF 3

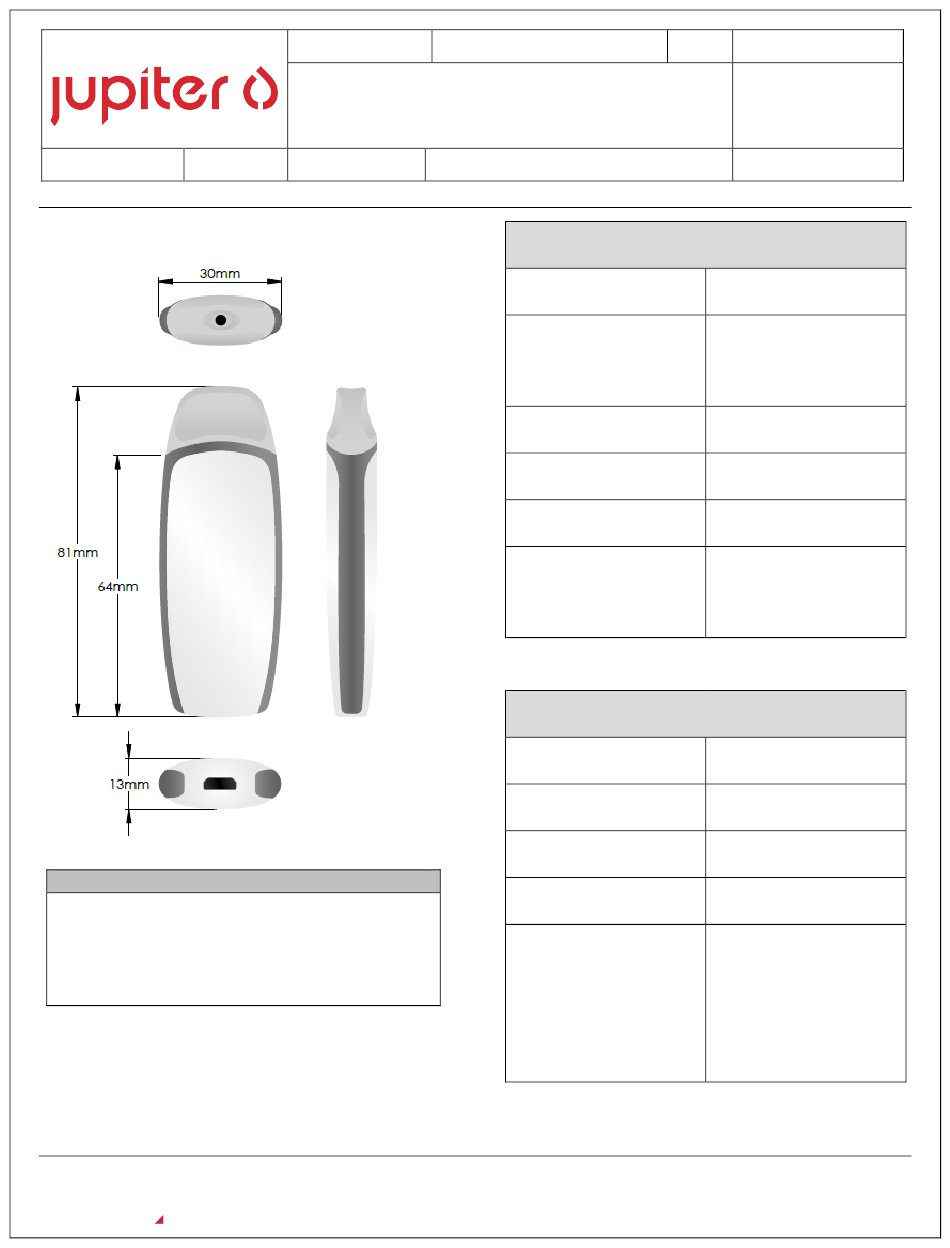

320 mAh
Standard power is 8.5W:
6.5W AND 7.5W options
available upon request
3.0 A
0.7 – 1.4 Ω
Maximum 500 mA
0 – 10 seconds;
Custom options are
available upon request.
Magnetic
Breath Actuated
LED/Haptic Feedback
LED flashes 10 times
When charging LED
breathes and ERM
motor vibrates 1 time.
LED flashes 3X when
disconnected from
power.
