APPROVAL:
ECO-198
Electrical Specifications
Battery Cell Capacity
Power Output (±0.3W)
Max. Current Output
Resistance
Charging Current
Activation Time
2801 E. Camelback Rd. Ste. #180,
Phoenix, AZ 85016
jupiteresearch.com
DOCUMENT NO:

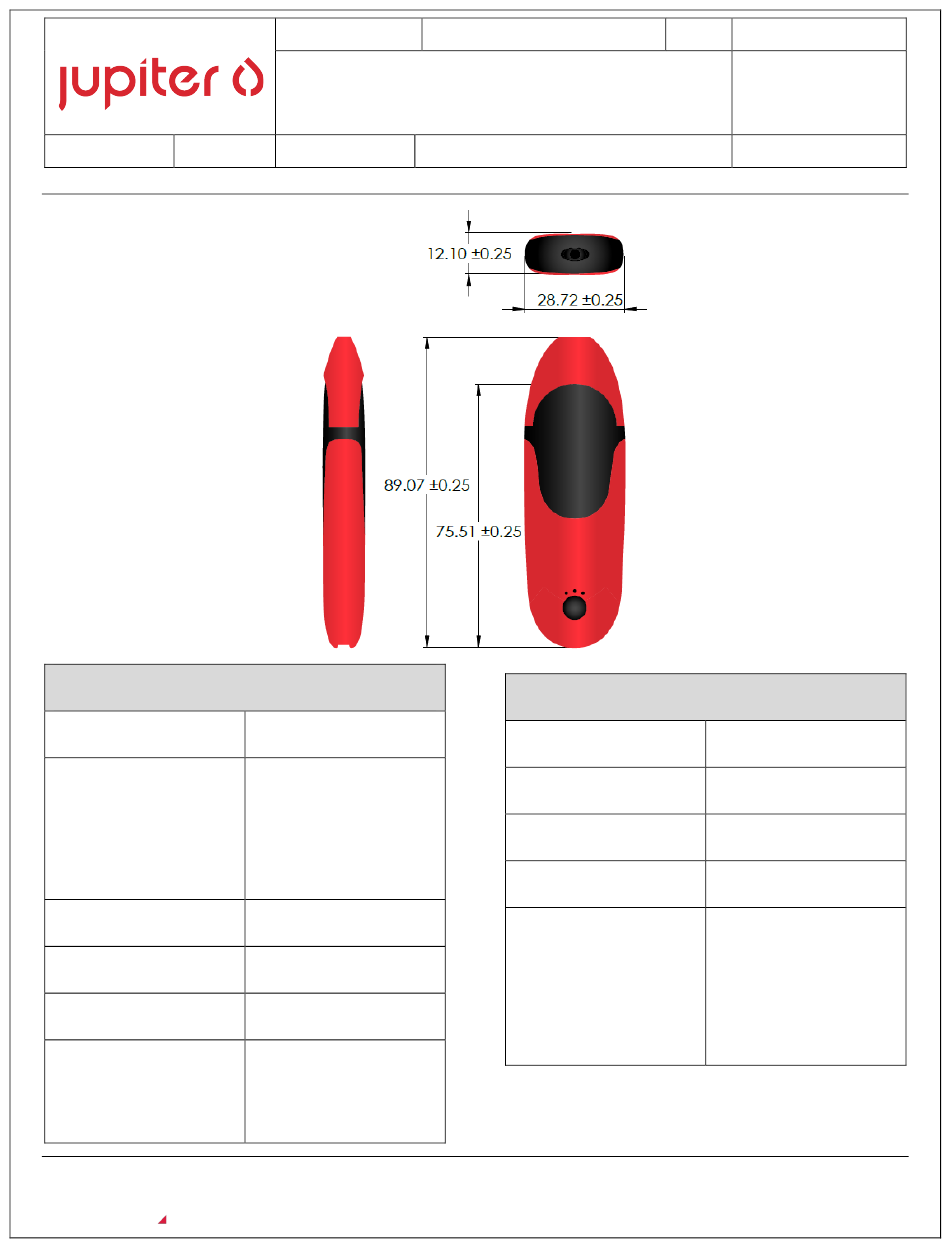

Dart X Rechargeable Power Supply
Jupiter PN(s):
480 mAh
Varies by Power Mode:
High = 8.5W
Medium = 7.5W
Low = 6.5W
3 A
0.8 ± 0.15 Ω
450mA±50mA
0 – 10 seconds (+/-20%)
Other custom options
are available on request
CDS – PD2048-246XXXX
PD2048-246XXXX
Cartridge Attachment
Activation
Notification
Low Battery Notification
Charging Indication
*All dimensions are in mm
VER:
1.1
EFFECTIVE DATE:
12/08/2020
PAGE 1 OF 3
User Interface
Magnetic
Breath Actuated
LED
LED flashes 10 times
LED is on during
charging, flashes 20X
and turns off when fully
charged, flashes 3X
when disconnected
from power.
Advertisement
Related Manuals for Jupiter PD2048-246 Series
Summary of Contents for Jupiter PD2048-246 Series
- Page 1 DOCUMENT NO: CDS – PD2048-246XXXX VER: Dart X Rechargeable Power Supply EFFECTIVE DATE: 12/08/2020 APPROVAL: ECO-198 Jupiter PN(s): PD2048-246XXXX PAGE 1 OF 3 Electrical Specifications User Interface Battery Cell Capacity 480 mAh Cartridge Attachment Magnetic Varies by Power Mode: Power Output (±0.3W)
- Page 2 Cells UN Manual of Tests and Criteria for Li-ion batteries; section 38.3. Jupiter power supplies are not Compatibility required classified Dangerous Goods when packaged The Dart X Power Supply uses a Magnetic CCELL properly for transport by sea, air, or Cartridge.
- Page 3 CDS – PD2048-246XXXX VER: Dart X Rechargeable Power Supply EFFECTIVE DATE: 12/08/2020 APPROVAL: ECO-198 Jupiter PN(s): PD2048-246XXXX PAGE 3 OF 3 Device Operation Operations Range or Description 1. Connecting Cartridge The mouth piece cartridge will be magnetically attracted to the battery.
