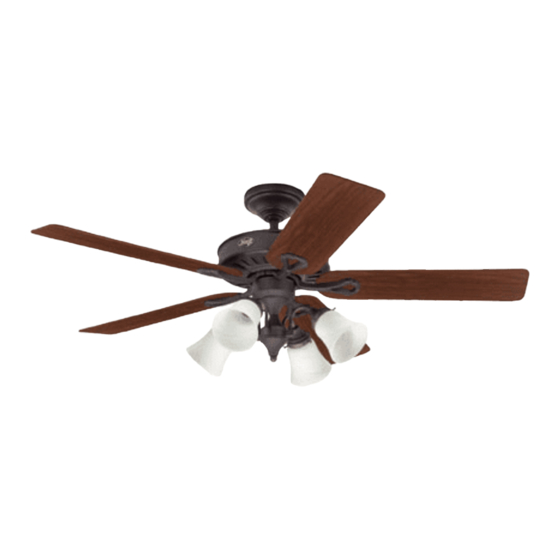

Hunter 20345 Owner's Manual And Installation Manual

Hunter 20345 Owner's Manual And Installation Manual

Type 3 models
Hide thumbs Also See for 20345:

Advertisement

For Your Records and
Warranty Assistance
For reference, also attach your receipt or a copy
of your receipt to the manual.
__________________________________________
Model Name
__________________________________________
Model No.
__________________________________________
Date Purchased
__________________________________________
Where Purchased
Form# 42616-01
20100202
©2010 Hunter Fan Co.

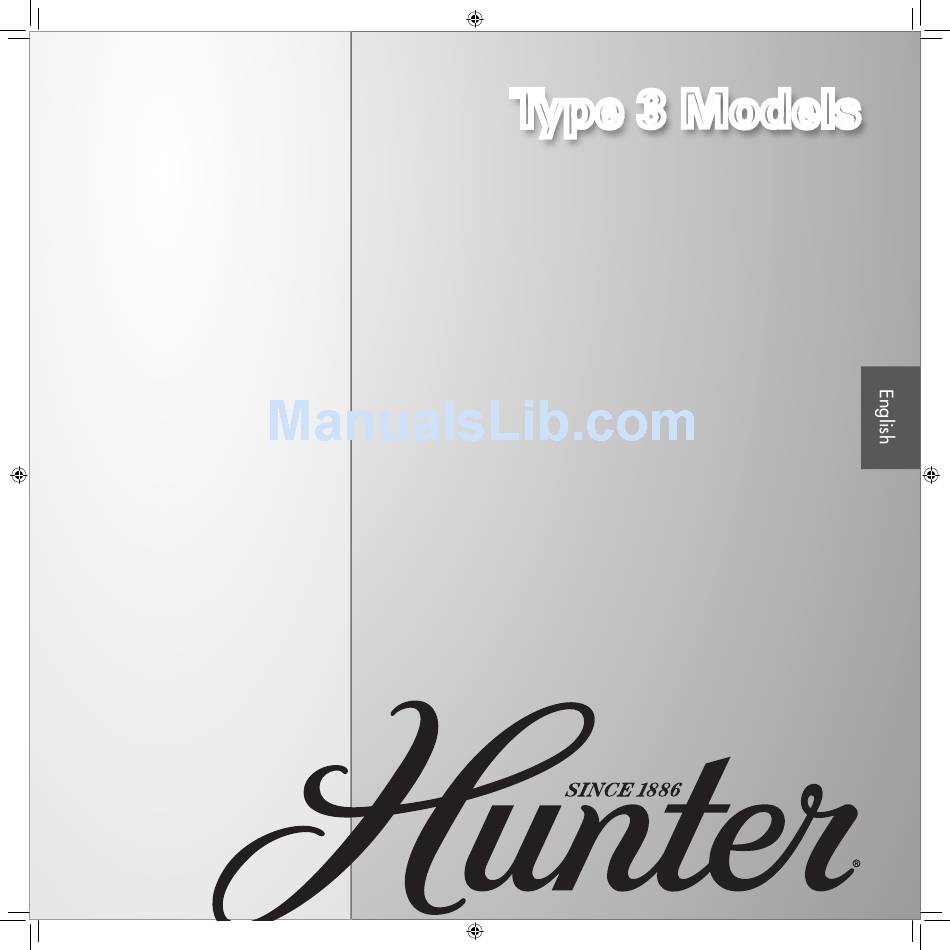

Type 3 Models
Type 3 Models
Type 3 Models
Owner's Guide and Installation Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 20345 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Hunter 20345

  • Page 1 Warranty Assistance For reference, also attach your receipt or a copy of your receipt to the manual. Owner’s Guide and Installation Manual __________________________________________ Model Name __________________________________________ Model No. __________________________________________ Date Purchased __________________________________________ Where Purchased Form# 42616-01 20100202 ©2010 Hunter Fan Co.
  • Page 2: Table Of Contents

    Before installing your fan, for your records and warranty assistance, Table Of Contents record information from the carton and Hunter nameplate label (located on the top of the fan motor housing). Preparing the Fan Site . . . . . . . . . . . . . . . . . 3 Installer’s Choice and Optional...
  • Page 3: Preparing The Fan Site

    If you want to use an existing fan site, complete the following checklist to System determine if the site is acceptable and safe for your new Hunter fan. If you cannot check off every item, prepare a new fan site as described on this page.
  • Page 4 ANSI/NFPA 70. If your ceiling fan, go to your fan manual and continue with Section 2 • Installing the you are unfamiliar with wiring, use a Ceiling Plate. qualified electrician. 42616-01 • 02/02/10 • Hunter Fan Company...
  • Page 5: Accessories

    Understanding Mounting and Installer’ s Choice® Hunter’s patented 3-position mounting system provides you maximum installation flexibility and ease. You can install your Hunter fan in one of three ways, depending on ceiling height and your preference: Low Profile, Standard, or Angle mounting. The steps in this manual include instructions for all three Installer’s Choice mounting methods.
  • Page 6: Getting Ready

    • Drill holes for and install wood screws. • Identify and connect electrical wires. • Lift 40 pounds. If you need help installing the fan, your Hunter fan dealer can direct you to a licensed installer or electrician. Gathering the Tools You will need the following tools for installing the fan: •...
  • Page 7: Installing The Ceiling Plate

    Tighten the screws into the 9/64” pilot holes; do not use lubricants on the screws. Do not over tighten. Ceiling Plate Flat Washer 3” Wood Steps 2-3 – 2-6 Screw 42616-01 • 02/02/10 • Hunter Fan Company...
  • Page 8: Assembling The Fan

    3-6. Align the holes in the washer with the holes in the adapter. Low Profile Washer Assemble securely with three locking screws. Green Ground Wire Canopy Step 3-6 (Detail) Trim Ring Adapter Canopy Locking Screws Low Profile Washer Locking Screw 42616-01 • 02/02/10 • Hunter Fan Company...
  • Page 9: Setting The Remote Transmitter And Receiver

    4-3. Install the included 9-volt battery into the transmitter. CAUTION: The remote control device complies with part 15 of the FCC rules. Changes or modifications not expressly approved by Hunter Fan Company could void your authority to operate this equipment.
  • Page 10: Wiring The Fan

    5-7. Position the receiver in the canopy so that the antenna is close to the edge of the ceiling plate for clear reception. 42616-01 • 02/02/10 • Hunter Fan Company...
  • Page 11: Installing The Canopy And Canopy

    Note: Should you need to remove the trim ring, press firmly on Canopy opposite sides of the trim ring directly above the groove in the Trim hanger ball. The tabs will flex out releasing the canopy trim ring. Ring Canopy Screw 42616-01 • 02/02/10 • Hunter Fan Company...
  • Page 12: Assembling The Blades

    7 • Assembling the Blades Step 7-1 (Detail) Hunter fans use several styles of fan blade irons (brackets that hold the blade to the fan). 7-1. Your fan may include blade grommets. If your fan has grommets, insert them by hand into the holes on the blades.
  • Page 13: Completing Your Installation With

    8 • Completing Your Installation With or Without a Light Fixture Your Hunter fan comes with an integrated light fixture assembly and an optional switch housing cap and plug button. This feature gives you the option of installing the fan with OR without the included light fixture.
  • Page 14 190 Watts. Exceeding that limit or the Shade specifications on the light socket may result in fire hazard or Bulb improper operation. If lights do not appear to be operating properly, see the troubleshooting section. Steps 8-8 – 8-10 42616-01 • 02/02/10 • Hunter Fan Company...
  • Page 15 Plug Button the two disconnected wires in the lower switch housing. 8-18. Install the switch housing cap and plug button to the lower Step 8-18 switch housing. Male Dummy Terminal Female Dummy Terminal 42616-01 • 02/02/10 • Hunter Fan Company...
  • Page 16: Mounting The Holder

    9-4. You can mount the remote holder to any toggle switch plate with the screws already in the switch plate. Or, you can simply mount the remote holder on the wall. Steps 9-1 – 9-2 Step 9-4 42616-01 • 02/02/10 • Hunter Fan Company...
  • Page 17 10-4 . The blades on this fan have been treated with Hunter’s Dust Armor protection, making the blades less likely to attract dust and dirt. Use a dry or slightly damp lint free cloth to clean the blades.
  • Page 18: Troubleshooting

    7130 Goodlett Farms Pkwy #400 seconds, then resume power to the fan. Memphis, Tennessee 38016 2. If lights shut off suddenly again, check to make sure total wattage of bulbs does not exceed 190 Watts. 42616-01 • 02/02/10 • Hunter Fan Company...
