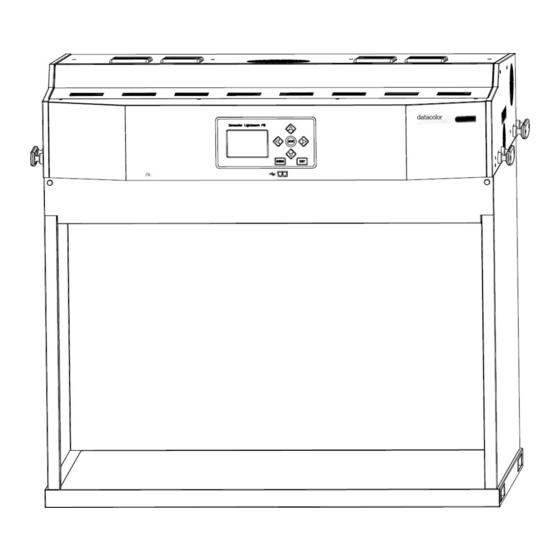

Datacolor Light Booth PS
User Manual
Please read the user manual carefully before use.
Please keep the manual properly for reference.
*This document has been translated by AI and may contain inaccuracies. Please refer to the
original text or consult a professional for precise information.
Datacolor Light Booth PS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Light Booth PS and is the answer not in the manual?

Questions and answers

Related Manuals for Datacolor Light Booth PS

Summary of Contents for Datacolor Light Booth PS

  • Page 1 Datacolor Light Booth PS Datacolor Light Booth PS User Manual  Please read the user manual carefully before use.  Please keep the manual properly for reference. *This document has been translated by AI and may contain inaccuracies. Please refer to the...

  • Page 2: Security Information

    Datacolor Light Booth PS Please read carefully when any signs appear. This symbol is used to remind you of potential dangers and behaviors that require attention. Security information Before installing and operating this device, please read this manual carefully and follow the instructions.

  • Page 3: Table Of Contents

    Datacolor Light Booth PS Contents Instructions and Installation ......................1 Product Introduction ........................1 Function and Features ....................... 2 Light Booth assembly instructions ..................... 3 Installation instructions for overhead luminaire ................. 6 Basic Operation ..........................7 Power on ........................... 7 Turning on and off the light source ....................

  • Page 4: Instructions And Installation

    Datacolor Light Booth PS 1 Instructions and Installation Product Introduction This product is a professional standard light source box, which can provide up to 7 standard light sources. It can be widely used in the field of Color quality Management.

  • Page 5: Function And Features

    Datacolor Light Booth PS Function and Features  With 7 kinds of light sources -Daylight CIE D65 (6500 K): Real time display of calibrated color temperature and illuminance, visible light Metamerism Index MI <0.25 (Class A), color rendering index CRI (Ra) ≥...
  • Page 6 Datacolor Light Booth PS A range specified in CIE standard for a long time.  Uniform Illuminance Using an ultra-white glass diffuser can eliminate dark areas of light and shadow, providing a more uniform lighting environment.  Equipment Casing The all-metal casing and box are sturdy and durable.
  • Page 7 Datacolor Light Booth PS Assembly Instructions for Light Booth Note: Select an open and flat table for installation, ensure that there is enough space for installing the Light Booth, and be careful not to scratch the surface of the box.
  • Page 8 Datacolor Light Booth PS...
  • Page 9 Datacolor Light Booth PS 7 Tighten the rear fixing screws of the right-side panel, as shown in Figure 1-7 for the installation of the rear screws of the right-side panel. 8 Tighten the fixed screws on the inside of the right side, as shown in the installation of the screws on the side of the right plate in Figure 1-8.
  • Page 10 Datacolor Light Booth PS Support the diffuser and ensure that the rough side of the diffuser faces downwards during installation. 12 First, place the right pin of the diffuser in the bracket behind the micro switch, and then place the left pin in the bracket on the left side of the luminaire, as shown in the following figure.

  • Page 11: Light Booth Assembly Instructions

    Datacolor Light Booth PS Installation instructions for overhead luminaire The following are the installation steps for single or multiple suspended light emitters. Be careful:  Do not install the suspended illuminant under the fire sprinkler System. The heat generated by the illuminant may activate the fire sprinkler System.

  • Page 12: Basic Operation

    Datacolor Light Booth PS 2 Basic Operation Power On 1 Connect the power supply, toggle the power switch I/O on the lower left front side of the luminaire, and start the device. 2 After power on, the equipment will conduct System Self checking immediately. Then, the Self checking information will be displayed, and you can press the "ENTER"...

  • Page 13: Turning On And Off The Light Source

    Datacolor Light Booth PS Incandescent (A Turn on/off incandescent lamps lamp) Horizon (HZ light) Turn on/off the Horizon light Turn on/off the UV lamp Program control Run automatic programs (refer to the content of (short press) "Automatic Programs" in this manual) Program control Edit automatic program (see "Automatic Program"...

  • Page 14: Querying Device Information

    Datacolor PS type 3 If you want to adjust the UV intensity in the combined light source, you need to adjust the UV lamp intensity first. Turn on the UV lamp separately, press the 【 】 or 【 】 key to adjust the UV intensity. Then turn on the combined light source.

  • Page 15: Remote Control Operation

    Datacolor PS type  "PAUSE": Pause the program and keep the current light source in on status. Press the switch again to return to the program.  "NEXT": turn off the current light source and turn on the next light source.

  • Page 16: System Setting

    Datacolor PS type 3 System Setting Setting mode is used to view and adjust the Setting of the Light Booth. Each Setting will be described in the following pages. Administrator Setting The "Administrator" menu allows the User to configure the owner, System, lamp change, Program Setting, operator, time Setting, and restore Setting.
  • Page 17 Datacolor PS type The following is an explanation of the "OWNER Page" option. Registration Enter Factory default Description value Options Text company text blank Enter a company Name with a maximum length of 15 characters. common The Name of the division will appear in the report.

  • Page 18: Administrator

    Datacolor Light Booth PS The following is a description of the "System Setting Page" option. S e l e c t System Factory explain V a l u e o r Setting default S e l e c t value...

  • Page 19: Administrator _ Lamp Replacement

    Datacolor Light Booth PS Refer to the following method: Select option or value:  Press the up 【 】 or down 【 】 key to select the desired option.  Press [ENTER] to Save the selected option/value. For example, as shown in the following figure, Select the dimming control mode.
  • Page 20 Datacolor Light Booth PS 2 Press the up 【 】 or down 【 】 key to select the light source to be viewed. Press the 【 ENTER 】 key to enter the 'Options View Page' of the light source. Select lamp Type: Note: CWF can support optional LED 4000K ( L840 ), and U35 can support optional TL83 .
  • Page 21 Datacolor Light Booth PS For example, as shown in the following figure, reset the lifespan timer of the daylight lamp. Reset remaining times: Attention: The initial remaining number of times for daylight lamps, incandescent lamps, and Horizon lamps is 60000 times. Other light sources are 20000 times.

  • Page 22: Administrator_Profile Setting

    Datacolor Light Booth PS Self-Calibration Function of A lamp/Horizon Lamp: After replacing the incandescent lamp or Horizon lamp, the display value of real-time color temperature or illuminance may change significantly. The display value can be calibrated through the self-calibration function provided by the System.
  • Page 23 Datacolor Light Booth PS Illuminance Setting: The User is allowed to Set the target illuminance value when the fluorescent lamp is turned on and the intensity value when the UV lamp is turned on. Note: Illuminance Setting is only effective when the " Left Right " option in the "...
  • Page 24 Datacolor Light Booth PS Setting lighting time:  In the "Program Setting Edit page", press the up and down keys to move the cursor, and select the time needed for the step.  Press the [ENTER] key to enter the "Lighting time Setting Edit interface".

  • Page 25: Administrator_Operator

    Datacolor Light Booth PS 3.1.5 Administrator_Operator "Operator" allows the User to enter specific information of up to 8 operators. The operator information will be printed in the report. 1 In the "Administrator page", select "OPER" and press [ENTER] to enter the "Operator page".

  • Page 26: Administrator_Clock

    Datacolor Light Booth PS For example, as shown in the following figure, Select Gender. Enter text:  Press the left, right, up, and down keys to move the cursor and select the text character.  Press the [ENTER] key to enter text characters.

  • Page 27: Administrator _ Reset

    Datacolor Light Booth PS  Press the [SAVE] key to Save the number. For example, as shown in the figure below, Modify the Year. 3.1.7 Administrator _ Reset The "RESET" menu allows the User to initialize parameters, such as Note: Once the factory Setting are restored, the original Setting will be cleared. Please operate carefully! 1 In the "Administrator page", select "RESET"...

  • Page 28: Control Chain Setting

    Datacolor Light Booth PS 2 In the "User Page", press the up or down key to select the operation option. Press [ENTER] to enter the "Options Edit Page". The following is a description of the User Page option. User Select Value or...

  • Page 29: Report

    Datacolor Light Booth PS Press [ENTER] to enter the "Options Edit Page". The following is a description of the "Control Chain Page" option. Setting Options default explain Select Chain En On/off Turn on/off the control chain operation. Broadcast Add mode...
  • Page 30 Datacolor Light Booth PS...

  • Page 31: Appendix I Maintenance

    Datacolor Light Booth PS Appendix I Maintenance Be careful:  Before maintenance, be sure to turn off the power and unplug the power cord.  Before replacing the lamp tube, please loosen the diffuser glass lock and slowly lower the front end of the diffuser glass until it reaches the fully open vertical position.
  • Page 32 Datacolor Light Booth PS...

  • Page 33: Replace Lamp Tube

    Datacolor Light Booth PS 2 Replace the Lamp Tube Immediately replace the burnt or expired lamp tubes to maintain overall performance standards. Note: We Recommend replacing the complete set of lamps. The service life of Recommend lamps is listed in the table below.
  • Page 34 Datacolor Light Booth PS Lamp Position Guidance 1 Replace the halogen tungsten lamp Before touching the halogen lamp tube, please wait for the tube to cool down. When touching the lamp tube, please use clean gloves or similar products, as skin oil can affect the performance of the lamp tube.

  • Page 35: Replace Fuse

    Datacolor Light Booth PS 2 Replace the fluorescent lamp  Rotate the lamp tube 1/4 turn with both hands simultaneously and remove the lamp tube from both grooves. The reference diagram is as follows.  Discard it in a suitable container.
  • Page 36 Datacolor Light Booth PS  After Finish, push the fuse box in the direction of the interface. The reference diagram is as follows.

  • Page 37: Appendix Ii Troubleshooting

    Datacolor Light Booth PS Appendix II Troubleshooting fault Reasons and solutions for malfunctions Please check if the power switch on the front cover is turned on correctly The device is Check whether the fuse is burnt unresponsive Check whether the input power is connected...

  • Page 38: Appendix Iii Technical Specifications

    Datacolor Light Booth PS Appendix III Technical Specifications Light Booth Observation area Dimensions (H x W x H 915 x W 990 x D 690 mm H 560 x W 890 x D 580 mm Darker) Weight/Shipping Weight 74 Kg / 95.58 Kg (Excluding the weight of 2.2 Kg for the optional 45 degree...
