Relay PW20L/RS485 User Manual

M-bus level converter with rs485 resp. rs232c for 20 meters
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

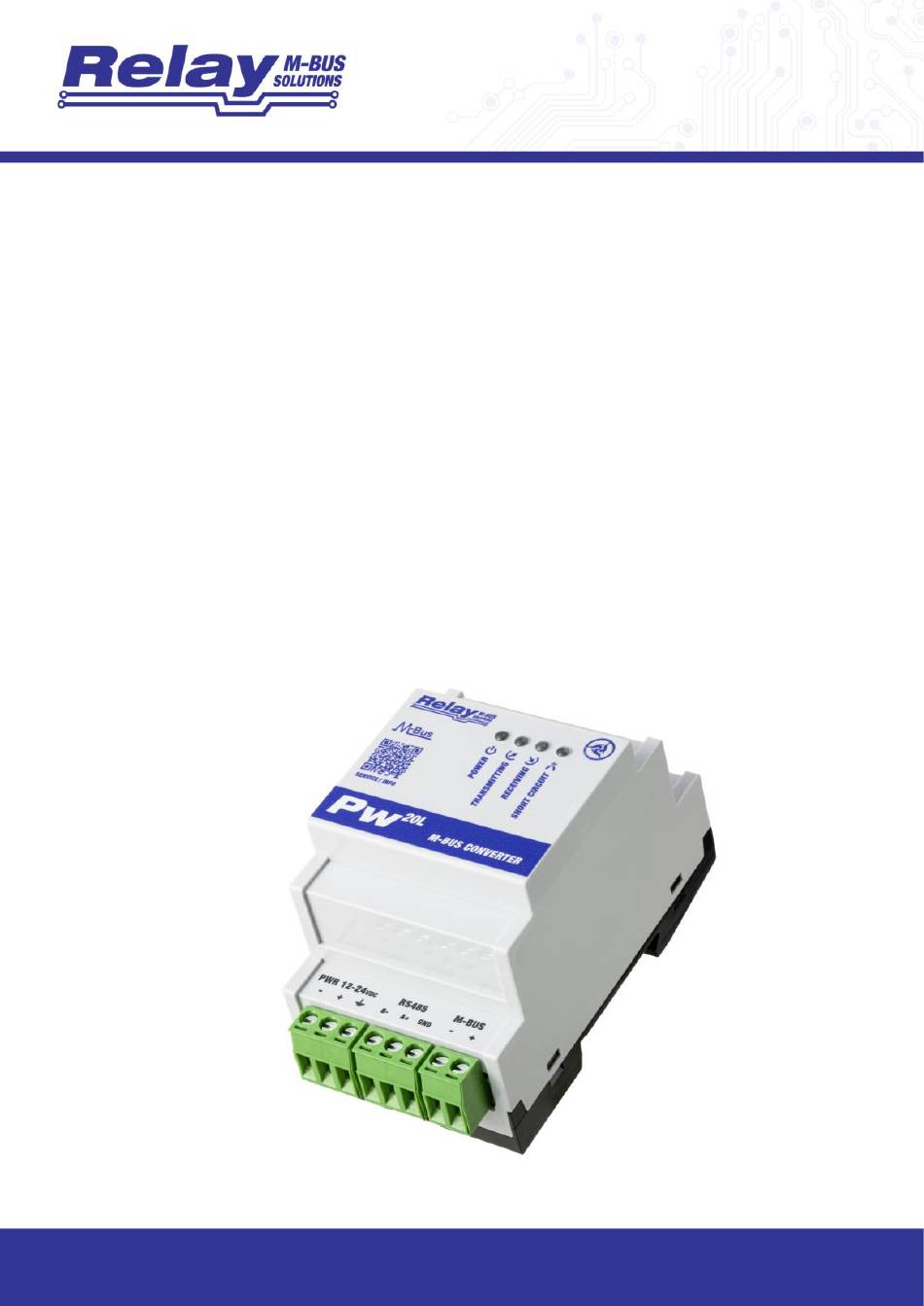

PW20L/RS485
PW20L/RS232
M-Bus Level Converter with RS485 resp. RS232C
for 20 meters
Bedienungsanleitung
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PW20L/RS485 and is the answer not in the manual?

Questions and answers

Related Manuals for Relay PW20L/RS485

Summary of Contents for Relay PW20L/RS485

  • Page 1 PW20L/RS485 PW20L/RS232 M-Bus Level Converter with RS485 resp. RS232C for 20 meters Bedienungsanleitung User Manual...

  • Page 2: Table Of Contents

    3.1 RS232-Version ........................... 5 3.2 RS485-Version ........................... 5 4. Technical Data ............................6 4.1 General Data ............................6 4.2 Interface Data ............................. 7 4.3 Ordering Information ........................... 7 © Relay GmbH 2024 www.relay.de PW20L · User Manual Version 1.0 - 06/2024...

  • Page 3: Features

    PW20L 1. Features M-Bus level converter for 20 end devices Transparent level conversion from RS232C or RS485 to M-Bus (2 Versionen) Protection against short circuit in the M-Bus External DC power supply Housing for mounting on DIN rail (low profile) LED indicators for power, short-circuit on M-Bus and communication RS485-Verson: 2-wire RS485 interface (not addressable)

  • Page 4: Connectors And Leds

    PW20L 2.3 Connectors and LEDs The following illustration shows a top view of the connectors: All terminals are pluggable, making it easier to wire and replace the PW20L in the event of a fault. Attention: Please ensure that the terminals are correctly replaced in their intended position after removal.

  • Page 5: Functional Description

    PW20L 3. Functional Description The PW20L is a transparent level converter from RS485 or RS232C to M-Bus for a maximum of 20 meters. The device enables externally connected controllers with an RS485 or RS232C interface, such as a BMS, a DDC or a PC, to read the connected meters using M-Bus software (not included in the scope of delivery.

  • Page 6: Technical Data

    LED indicators Power, communication Master, Slave, overcurrent M-Bus Interfaces PW20L/RS232: RS232C with V24 levels PW20L/RS485: RS485 2-wire plus GND Terminals (all plugable) 1 pair terminal for M-Bus, 3-pin terminal for RS485 / RS232C, 3-pin terminal for power supply / protective ground...

  • Page 7: Interface Data

    Article Number Description MB PW20L/RS232 M-Bus level converter with RS232C for 20 meters MB PW20L/RS485 M-Bus level converter with RS485 for 20 meters NT013 Power supply 24VDC, 15W, DIN rail, input voltage 85 .. 264 VAC, 47 .. 63 Hz...

This manual is also suitable for:

Pw20l/rs232
