Enter Start Control ID and click Setup, so control ID of channels will start from the Start
Control ID.
Step 3 Click OK.

Appendix 2.2 Adding Video Walls

Procedure
Step 1 Log in to the NVD webpage.
Step 2 Select Setup > Display Management > Video Wall Setup, and then click Add Video
Wall.
Step 3 Configure the layout.
1) Customize Video Wall Name and Description.
2) Click icons at the bottom of the window to add single screen and split screen quickly.
Press and hold the left mouse button to drag the screen to the desired position.
No.
1
2
3
4
5
6
7
8

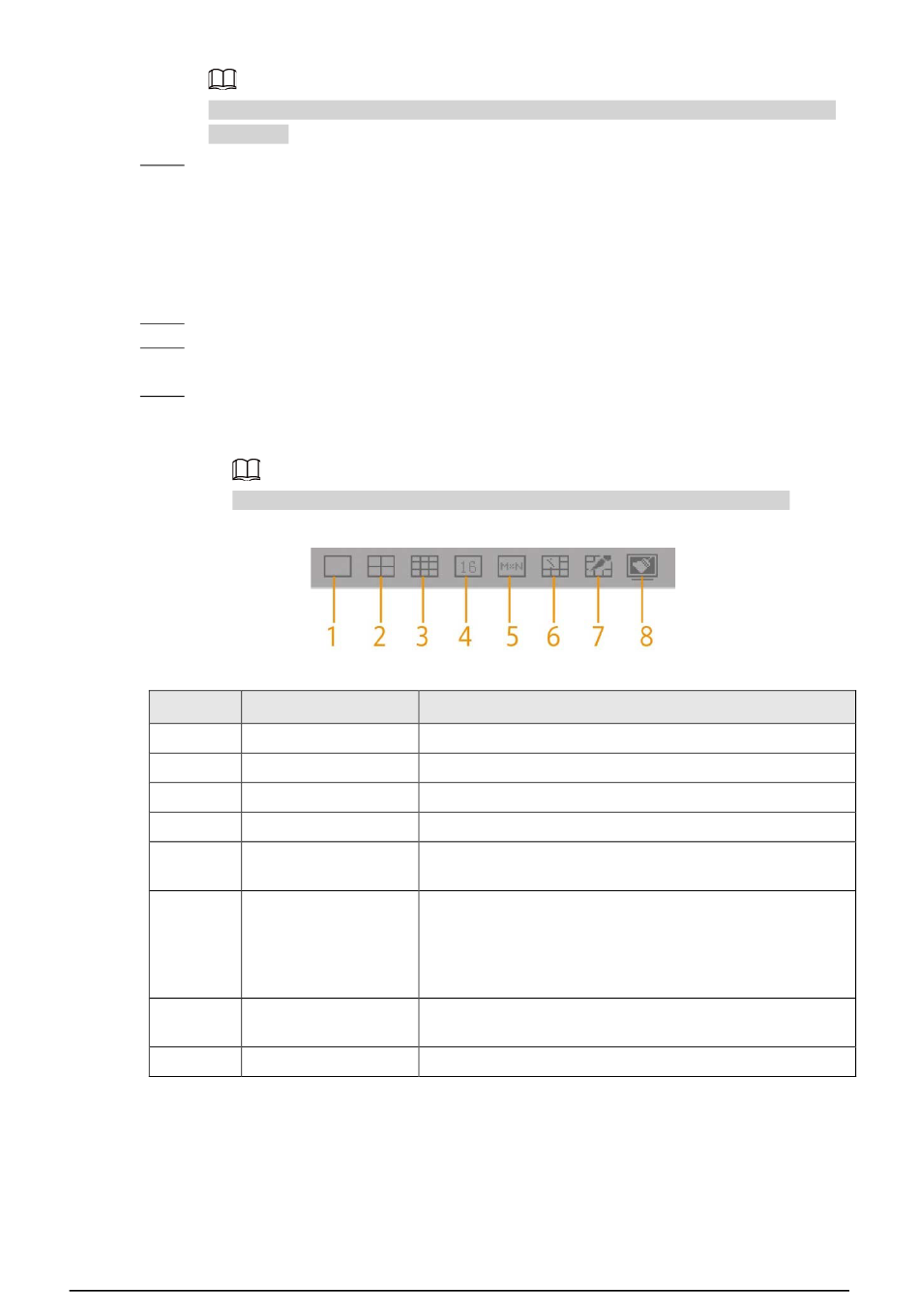

Appendix Figure 2-5 Add screen
Appendix Table 2-2
Name
Single Screen
4-split Screen
9-split Screen
16-split Screen
Custom
Splicing
Cancel Splicing
Clear Screen
Description
Click to add single screen.
Click to add a 4-split screen.
Click to add a 9-split screen.
Click to add a 16-split screen.
Click the icon, and enter the row and column number in
the User Custom window to add a custom screen.
Select separate screens, and click this icon to splice them.
● Splicing screen cannot be selected.
● Single screens shall be connected horizontally or
vertically.
Select splicing screens, and click this icon to cancel their
splicing.
Clear all screens on the video wall.
37
