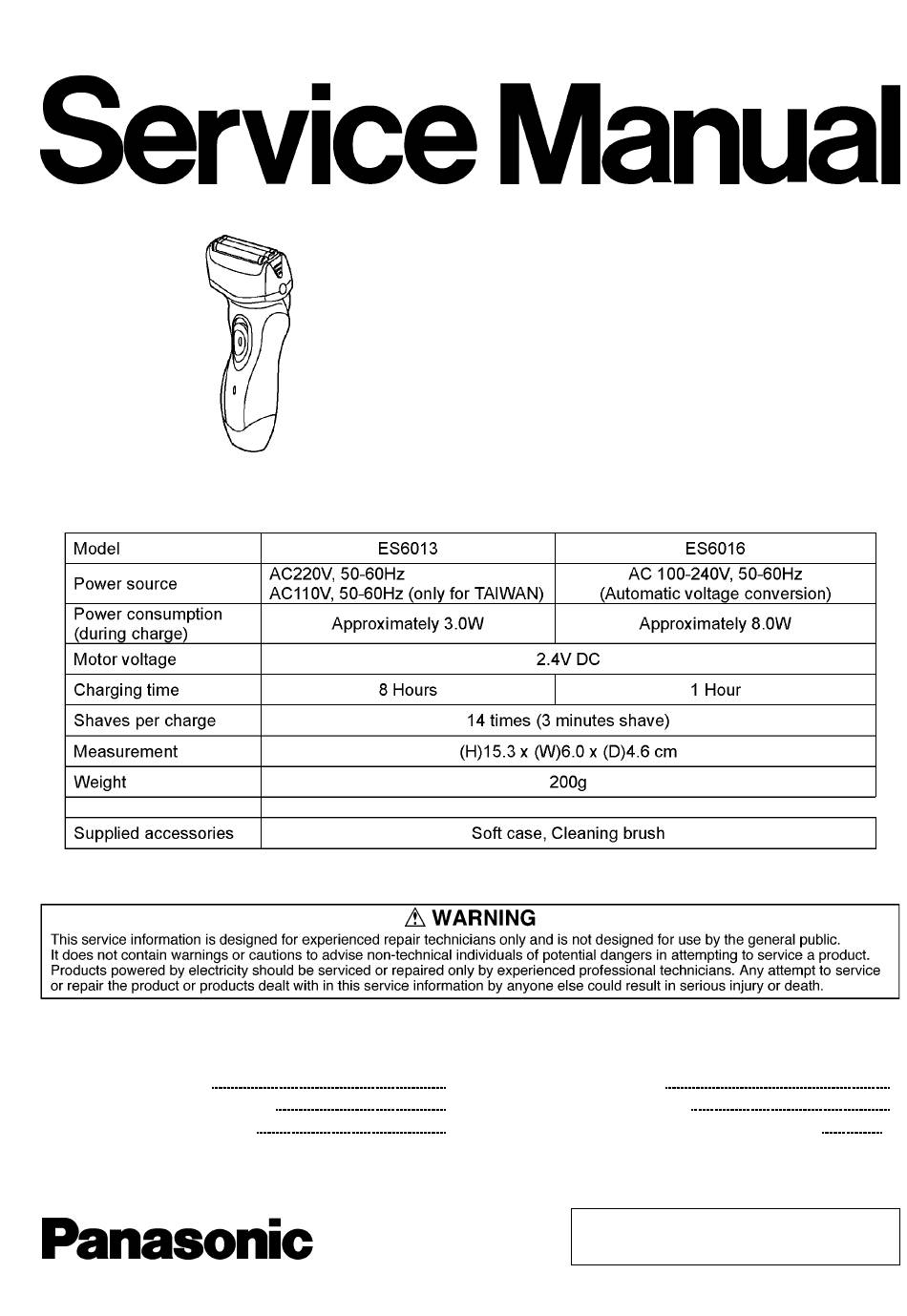

AC/Rechargeable Shaver
ES6013-A3
ES6016-A3
Page
2
2
3
© 2006 Matsushita Electric Works, Ltd. All rights
reserved. Unauthorized copying and distribution is a
violation of law.
ORDER NO. SD0606A40CE
Page
6
9
10

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ES6013-A3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Panasonic ES6013-A3

  • Page 1: Table Of Contents

    ORDER NO. SD0606A40CE AC/Rechargeable Shaver ES6013-A3 ES6016-A3 SPECIFICATIONS CONTENTS Page Page 1 SCHEMATIC DIAGRAM 4 CAUTION IN ASSEMBLY 2 WIRING CONNECTION DIAGRAM 5 TROUBLESHOOTING GUIDE 3 DISASSEMBLY INSTRUCTION 6 EXPLODED VIEW & REPLACEMENT PARTS LIST © 2006 Matsushita Electric Works, Ltd. All rights reserved.
  • Page 2: Schematic Diagram

    ES6013-A3 / ES6016-A3 1 SCHEMATIC DIAGRAM 2 WIRING CONNECTION DIAGRAM...
  • Page 3: Disassembly Instruction

    ES6013-A3 / ES6016-A3 3 DISASSEMBLY INSTRUCTION Follow the procedure below to disassemble the main unit. 1. Remove the cap, the outer foil with foil frame and the inner blade. 2. Slide the trimmer handle up to open the trimmer and unhook the trimmer handle by inserting something like a slotted screwdriver or plastic spatula into a slit.
  • Page 4 ES6013-A3 / ES6016-A3 4. To remove the trimmer driving bar or the slit blade driving bar, press bars outward. 5. Loosen a screw and remove the bottom cover. 6. Slide down the side panels for both sides. 7. Loosen two screws on front and four screws on the back...
  • Page 5 ES6013-A3 / ES6016-A3 8. Take out the housing B. 9. Remove the motor assembly and tube holder. 10. And take out the battery assembly from housing A. 11. Remove the battery o-ring and washer in each battery. Take out the rechargeable batteries from the chassis.
  • Page 6: Caution In Assembly

    ES6013-A3 / ES6016-A3 4 CAUTION IN ASSEMBLY NOTE: When reassembling, replace the new waterproof rubber. Make sure whether there is NO foreign substance sticking around a part covered with water seal. 4.1. Motor Insert the motor and press fit the waterproof tube neatly under the tube holder.
  • Page 7 ES6013-A3 / ES6016-A3 4.3. Module Align the projection of switch select button on housing A with the groove of switch plate on module. 4.4. Driving bars Set the trimmer driving bar and the slit blade driving bar. 4.5. Screw Tighten two screws with 1.5kgf-cm in order to prevent the breakage of housing or making a crevice in the housing.
  • Page 8: Side Panel

    ES6013-A3 / ES6016-A3 4.6. Side panel Set the side panel on the body and slide it up until clicking the hook of panel at three locations. NOTE: Make sure that the left and right side panels are firmly fitted on both rear and front side.
  • Page 9: Troubleshooting Guide

    ES6013-A3 / ES6016-A3 5 TROUBLESHOOTING GUIDE (Refer to WIRING CONNECTION DIAGRAM) <TROUBLE> <CHECK.> <REMEDY> Motor does not rotate. <CHECK CHARGING ADAPTOR.> NO Replace charging → → → → Connect the rated voltage to the normal main unit by the charging adaptor.
  • Page 10: Exploded View & Replacement Parts List

    ES6013-A3 / ES6016-A3 6 EXPLODED VIEW & REPLACEMENT PARTS LIST 6.1. ES6013 NOTE: *A=available as an optional accessory *B=only available as set *C=available individually Ref. No. Part No. Part Name & Description Remarks Per Unit WES7043X7158 PROTECTIVE CAP (BG) WES9085E...
  • Page 11 ES6013-A3 / ES6016-A3 6.2. ES6016 NOTE: *A=available as an optional accessory *B=only available as set *C=available individually Ref. No. Part No. Part Name & Description Remarks Per Unit WES7043X7158 PROTECTIVE CAP (BG) WES9085E OUTER FOIL WES7046S0047 OUTER FOIL FRAME (BG)
