Technaxx
* User Manual

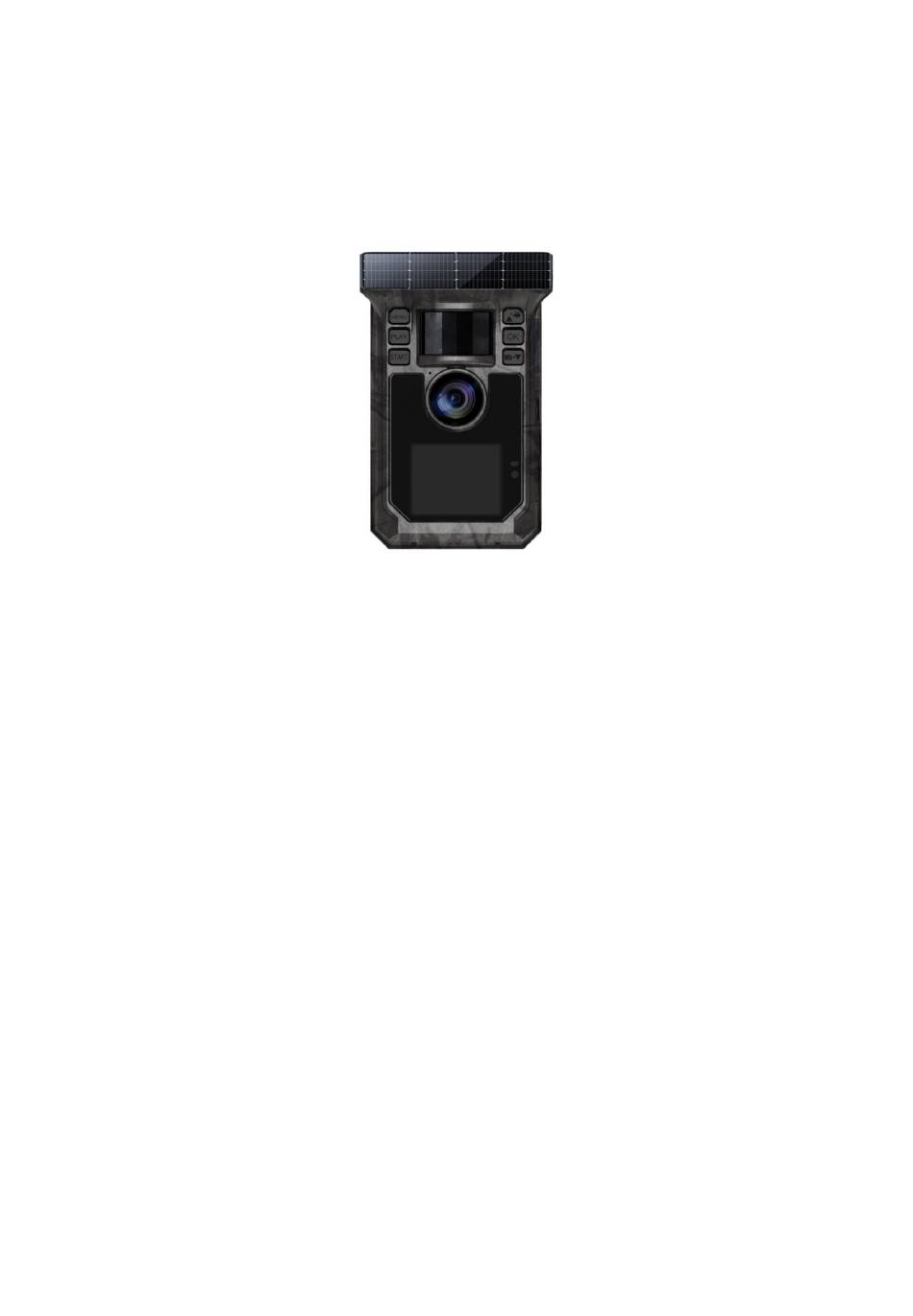

Solar WiFi Wildcam TX-326
Before using the appliance for the first time, please read the instructions
for use and safety information carefully.
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capacities, or by persons lacking in
experience or knowledge, unless they are supervised or instructed on the
use of this device by a person responsible for their safety. Children should
be supervised to ensure they do not play with this device.
Keep this user manual for future reference or product sharing carefully. Do
the same with the original accessories for this product. In case of warranty,
please contact the dealer or the store where you bought this product.
Enjoy your product. * Share your experience and opinion on one of
the well-known internet portals.
Specifications are subject to change without notice - please be sure to use
the latest manual available on the manufacturer's website.
1
Model: TX-326 Article No. 5269, 11/2024
Advertisement
Table of Contents
Related Manuals for Technaxx TX-326
Summary of Contents for Technaxx TX-326
- Page 1 Enjoy your product. * Share your experience and opinion on one of the well-known internet portals. Specifications are subject to change without notice - please be sure to use the latest manual available on the manufacturer's website. Model: TX-326 Article No. 5269, 11/2024...
-
Page 2: Table Of Contents
⚫ The cable is sheathed and insulates the current. Do not place any objects on the cable, as this could cause the protective function to be lost. Avoid placing excessive stress on the cable, especially at sockets and plugs. Model: TX-326 Article No. 5269, 11/2024... -
Page 3: Warnings
Surveillance in the workplace is subject to particularly strict conditions in Germany. ⚫ Delete recordings: Photos or videos of recorded people whose consent you do not have or that have not been informed, must be deleted immediately. Model: TX-326 Article No. 5269, 11/2024... -
Page 4: Disclaimer
Disclaimer ⚫ In no event shall Technaxx Deutschland be liable for any direct, indirect punitive, incidental, special consequential danger, to property or life, improper storage, whatsoever arising out of or connected with the use or misuse of their products. -
Page 5: Product Overview
START Button PIR indicator light Microphone WiFi Indicator light Left night vision light Display Solar panel Speaker Up button/recording USB Type-C OK Button Reset button PIR Lens SD card slot Down Button/Photo OFF/ON switch Model: TX-326 Article No. 5269, 11/2024... -
Page 6: Button Definition
(max. 70m). Via App you can connect to the Wildcam by Bluetooth to wake up the WiFi directly. The data transmission is executed by the Access Point (AP). You can change settings or download photos/videos to your Smartphone without removing the SD card. Model: TX-326 Article No. 5269, 11/2024... -
Page 7: Quick Start Guide
After turning on the camera, use the up and down buttons together with the OK button to complete the language setting, time and date setting and format the SD card to complete the boot interface. Model: TX-326 Article No. 5269, 11/2024... -
Page 8: Function Settings
10 seconds and the camera will enter monitoring mode. If you need to reset the parameters, press the START button again to wake up the camera. START-hunting camera enters monitoring working mode. Model: TX-326 Article No. 5269, 11/2024... -
Page 9: Video/Photo Mode
You can press the START button to enter the monitoring mode again. Video/Photo mode Video recording interface Photo interface Video recording mode Photo mode Video resolution Photo resolution Remaining recording time Number of photos remaining Battery SD card Current date Current time Model: TX-326 Article No. 5269, 11/2024... -
Page 10: Playback/Delete Mode
Delete all files Use this function to delete all pictures or videos in the camera memory card. In playback mode, press the MENU button, select "Delete All", and press the OK button to confirm. Model: TX-326 Article No. 5269, 11/2024... -
Page 11: System Menu Settings
Photo Burst 1/2/3/4/5 photos, you can select the desired number of continuous shots, which is the number of photos the camera will take in sequence each time it is triggered. Model: TX-326 Article No. 5269, 11/2024... - Page 12 There are three options (Far, Medium, Near) Camera Name Can modify the camera name WiFi LED It is on by default. The indicator light flashes during the WiFi connection process, and you can see the current status of the camera. Model: TX-326 Article No. 5269, 11/2024...
- Page 13 You can set a 4-digit power-on password, which can be set between 0 and 9, to protect your camera. If you forget the password, press and hold the Up button and the OK button to turn on the camera, and the camera will be unlocked. Model: TX-326 Article No. 5269, 11/2024...
-
Page 14: App Download And Installation
"Connect Other Cameras". Select the Bluetooth name you want to connect and the device will automatically connect. As shown in (Figure 3). Figure 1 Figure 2 Figure 3 Model: TX-326 Article No. 5269, 11/2024... - Page 15 (Figure 8). 9. Click the setting icon to enter the parameter setting interface, where you can set the time, working mode, video/photo mode, etc. (Figure 9). Model: TX-326 Article No. 5269, 11/2024...
-
Page 16: Installation And Positioning
3. Fasten the fixing kit as shown in the picture. 4. Place the camera in the location of your choice and secure it in the location of your choice. 5. If you want to put the camera in a tree. Model: TX-326 Article No. 5269, 11/2024... -
Page 17: Usb Connection And Card Reader Use
Alternatively, you can insert the memory card into a card reader on your computer. FAQs Important information ⚫ Do not submerse the unit in water. Although the unit is waterproof and dust resistant to IP65 rating, it is not intended for use under water. Model: TX-326 Article No. 5269, 11/2024... - Page 18 A3: If you use a USB lead other than the one supplied, remember that some USB leads are wired for charging only. Use a USB lead suitable for data transfer. Always replace a worn or damaged lead with a new USB lead. Model: TX-326 Article No. 5269, 11/2024...
-
Page 19: Technical Specifications
Time Lapse 5 second up to 24 hours Auto-distinguish Color images in daytime/black & white night images images PC interface USB-C Speaker & Microphone Built in External: SD** card (up to 128GB, Class10) [**not Memory included in delivery] Model: TX-326 Article No. 5269, 11/2024... -
Page 20: Support
Languages EN, DE, FR, ES, NL, IT, PL Weight & Dimensions 270g / (L) 13.5 x (W) 8.5x (H) 6.5cm Solar WiFi Wildcam TX-326, USB cable, Package contents Mounting bracket, Mounting belt, User Manual continuous = the needed storage was calculated by continuous recording. -
Page 21: Care And Maintenance
Declaration of Conformity Technaxx Deutschland GmbH & Co. KG hereby declares that the radio equipment type TX-326 Prod. ID.:5269 is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following internet address: www.technaxx.de/reseller... - Page 22 Made in China Distributed by: Technaxx Deutschland GmbH & Co. KG Konrad-Zuse-Ring 16-18, 61137 Schöneck, Germany Solar WiFi Wildcam TX-326 Model: TX-326 Article No. 5269, 11/2024...
