Summary of Contents for Jason.L Heron Mesh Ergonomic Drafting Chair

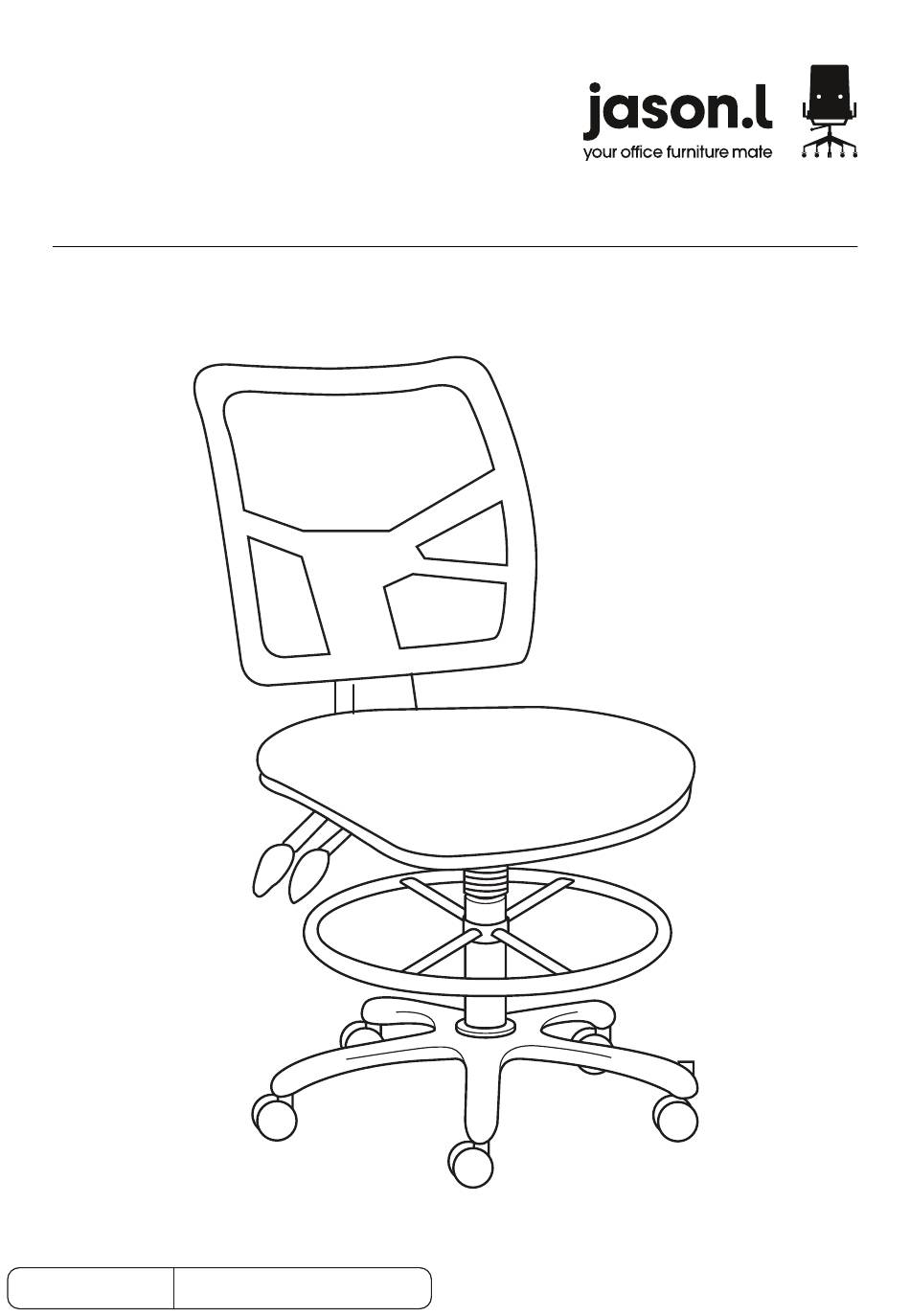

- Page 1 Heron Mesh Ergonomic Drafting Chair www.jasonl.com.au Need help! 2 of 4 1300 527 665 Call us on...
- Page 2 Heron Mesh Ergonomic Drafting Chair Drafting Base Assembly STEP 1 Insert castors into base. Base with STEP 2 gas inserted. Insert gas cylinder into base. STEP 3 Insert drafting ring over gas as shown. Base assembly complete ! www.jasonl.com.au Need help! 2 of 4 1300 527 665 Call us on...
- Page 3 Heron Mesh Ergonomic Drafting Chair Back Assembly STEP 4 Identify the stem of the chair back inside the square back bellow Leave elastic inplace. This keeps the two sections of the back bellow in place. STEP 5 STEP 6 Insert the stem firmly into Assembly Done mechanism at the back bottoms out.
- Page 4 Heron Mesh Ergonomic Drafting Chair Height adjustable arms Assembly STEP 1 Adjustable arm and armpad comes assembled STEP 2 STEP 3 Tip chair seat upside down. Rest seat Attach arm using 6 x M6*35mm (3 on corner of a table. Attach arm to on the left armand 3 on the right chair seat using B spacer on the one arm).
