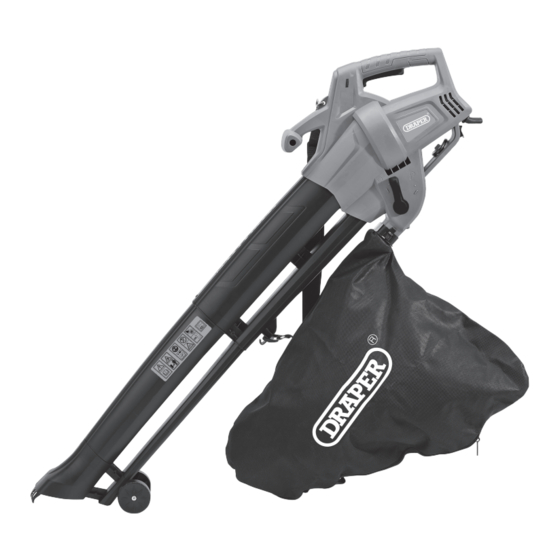

- Page 1 Original Instructions Version 2 - February 2025 230V 3000W GARDEN VACUUM BLOWER & MULCHER 94794...
-
Page 2: Product Reference
All photographs and drawings within this manual are document is part of the product; retain it for the life supplied by Draper Tools to help illustrate correct of the product, passing it on to subsequent holders. operation of the product. -
Page 3: Table Of Contents
2. Contents 1. Preface 1.1 Product Reference 1.2 Revisions 1.3 Understanding the Safety Content of This Manual 1.4 Copyright © Notice 2. Contents 3. Product Introduction 3.1 Intended Use 3.2 Specification 4. Health and Safety Information 4.1 Health and Safety Warnings for Garden Tool Use 4.2 Connection to the Power Supply 4.3 Residual Risk 5. -
Page 4: Product Introduction
This product is intended for domestic and infrequent will be considered misuse. light-duty trade use. Read this manual in full before Draper Tools accepts no responsibility for improper use attempting to assemble, operate or maintain the product of this product. -
Page 5: Health And Safety Information
4. Health and Safety Information Important: Read all Health and Safety instructions • Before use check the supply and extension cord for before attempting to operate, maintain or repair this signs of damage or wear. If the cord becomes product. Failure to follow these instructions may result in damaged during use, disconnect the cord from the injury or damage to the user or the product. -
Page 6: Connection To The Power Supply
Exercise common sense and caution when using this • If the power supply cord is damaged, it must be product and protect against any additional conceivable replaced by Draper Tools, an authorised service agent risks. or similarly qualified personnel in order to avoid a hazard. -
Page 7: Identification And Unpacking
If any part is damaged or missing, do not attempt to use examine it for any signs of damage that may have the product. Please contact the Draper Helpline; contact occurred during shipment. details can be found at the back of this manual. -
Page 8: Preparation Instructions
6. Preparation Instructions Important: Before preparing or adjusting this product, read and understand all the safety instructions listed in this manual. Unplug from the power supply before carrying out any adjustment or assembling. Important: Remove the label from the front of the impeller and assemble and fit the chute BEFORE operating this blower/vacuum. -
Page 9: Fitting The Collection Bag
6. Preparation Instructions 6.2 Fitting the Collection Bag (Fig.5 - Fig.6) 1. Push the two side lugs into the slots in the housing until they click into place. 2. Ensure the collection bag is fitted securely and the bag is clipped to the chute. Fig. -
Page 10: Operating Instructions
7. Operating Instructions Important: Before operating this product, read and understand all the safety instructions listed in this manual. Ensure that the product is fully assembled and correctly prepared for use. 7.1 ON/OFF Switch Operation (Fig.8) • To activate – fully press and hold the trigger (4). • To deactivate - release the trigger. -
Page 11: Basic Operation
7. Operating Instructions 7.4 Basic Operation • When using blower mode, it is important to keep the chute further from the ground, as air is sucked up the chute before being blown out through the blower tube. Allowing the chute to be near the ground could cause debris to enter the chute and be blown out through the blower tube or cause the machine to block. -
Page 12: Maintenance And Troubleshooting
8. Maintenance and Troubleshooting Important: Unplug from the power socket before carrying out any adjustment, servicing or maintenance. • Regular inspection and cleaning will reduce the necessity for maintenance operations and will keep your machine in good working condition. • The motor must be correctly ventilated during operation. For this reason, avoid blocking the air inlets. • Keep all nuts, bolts and screws tight to be sure the appliance is in safe working condition. -
Page 13: Spares, Returns And Disposal
Draper Tools Product Helpline for details of your nearest authorised agent. • Draper Tools will endeavour to hold any spare parts, if applicable, for seven years from the date that it sells the final matching stock item. -
Page 14: Explanation Of Symbols
10. Explanation of Symbols Pay attention that bystanders are not Read the instruction manual injured through foreign objects thrown from the machine. WARNING!: Keep a safe distance from Warning! the machine when operating Wear suitable eye and face protection Switch off and unplug from the power socket before adjusting, cleaning or carrying out maintenance, or if the cord is entangled, cut or damaged and before... - Page 15 Notes – 15 –...
-
Page 16: Contact Details
Product Helpline: +44 (0) 23 8049 4344 Telephone Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 Please contact the Draper Tools Product Helpline for repair and servicing enquiries. © Published by Draper Tools Limited © Published by Draper Tools Limited...
