Summary of Contents for Draper 70526
- Page 5 As part of our core range, this product is suitable for enthusiasts and tradespeople alike. Any application other than that it was intended for, is considered misuse. 4.2 SPECIFICATION Stock No ......................... 70526 & 92425 Part No ....................... D20G/LBS & D20G/LB Revolutions per minute (no load): ..................13,000r/min Air flow speed (Blowing) Speed 1 ............
-
Page 9: Health And Safety Information
– Before charging, read the instructions. – For indoor use. Do not expose to rain. – Only use Draper D20 battery packs with this product. Consult your Draper stockist for details. – Do not charge any other manufacturer’s battery packs using Draper chargers. Any other application is considered misuse. - Page 10 HEALTH AND SAFETY INFORMATION 5.5 CONNECTION TO THE POWER SUPPLY (CHARGER) Caution: Risk of electric shock. Do not open. This appliance is supplied with an approved plug and cable for your safety. The value of the fuse fitted is marked on the pin face of the plug. Should the fuse need replacing, ensure the substitute is of the correct rating, approved to BS1362 and ASTA or BSI Kite marked.
-
Page 11: Technical Description

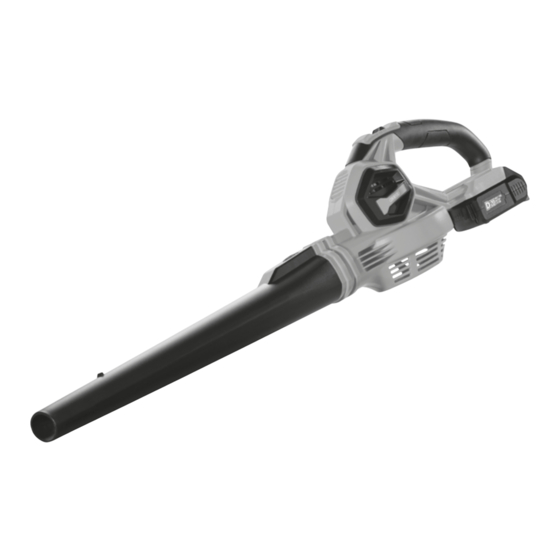

TECHNICAL DESCRIPTION 6.1 IDENTIFICATION (1) Extension tube lock. (2) 2 speed / power switch. (3) Soft grip. (4) Battery slot. - 11 -... -
Page 12: Unpacking And Checking
Lay the contents out and check them against the parts shown below. If any part is damaged or missing, please contact the Draper Help Line (the telephone number appears on the Title page) and do not attempt to use the product. - Page 17 11. DISPOSAL 11.1 DISPOSAL - At the end of the machine's working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. - Contact your local authority for details of collection schemes in your area. In all circumstances: •...
-
Page 18: Explanation Of Symbols
12. EXPLANATION OF SYMBOLS 12.1 EXPLANATION OF SYMBOLS Single value noise marking. Read the ;nstruct;on manual. (Maximum declared A-Weighted sound power level in decibels). - Wear face mask and safety Class I construction glasses. WEEE- Wea, gloves Waste Electrical & Electronic Equipment. - Page 19 NOTES - 19 -...
