IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY TO ENSURE THE
SAFE AND EFFECTIVE USE OF THIS PRODUCT.
INSTRUCTIONS
These instructions accompanying the product are the original instructions. This document is part of the product,
keep it for the life of the product passing it on to any subsequent holder of the product. Read all these
instructions before assembling, operating or maintaining this product.
This manual has been compiled by Draper Tools describing the purpose for which the product has been
designed, and contains all the necessary information to ensure its correct and safe use. By following all the
general safety instructions contained in this manual, it will ensure both product and operator safety, together
with longer life of the product itself.
AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the
product.
Whilst every effort has been made to ensure the accuracy of information contained in this manual, the Draper
Tools policy of continuous improvement determines the right to make modifications without prior warning.

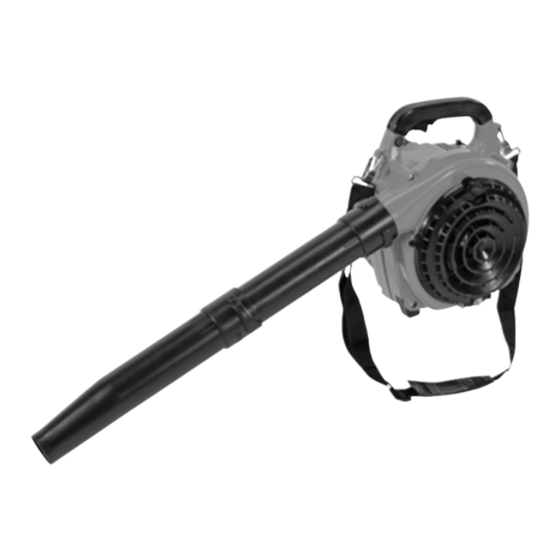

PETROL
BLOWER/
VAC
32301

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 32301 and is the answer not in the manual?

Questions and answers

Related Manuals for Draper 32301

Summary of Contents for Draper 32301

  • Page 1 AlI photographs and drawings in this manual are supplied by Draper Tools to help illustrate the operation of the product.

  • Page 2: Introduction

    Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Draper Tools Limited. In all cases this copyright notice must remain intact.
  • Page 3 CONTENTS 1. TITLE PAGE 1.1 INTRODUCTION......................2 1.2 REVISION HISTORY ....................2 1.3 UNDERSTANDING THIS MANUAL ................2 1.4 COPYRIGHT NOTICE ....................2 2. CONTENTS 2.1 CONTENTS ........................3 3. GUARANTEE 3.1 GUARANTEE ....................... 4 4. INTRODUCTION 4.1 SCOPE......................... 5 4.2 SPECIFICATION ......................

  • Page 4: Guarantee 3.1 Guarantee

    This guarantee applies in lieu of any other guarantee expressed or implied and variations of its terms are not authorised. Your Draper guarantee is not effective unless you can produce upon request a dated receipt or invoice to verify your proof of purchase within the guarantee period.

  • Page 5: Introduction 4.1 Scope

    This product is designed for blowing fallen leaves and other loose green matter prior to collection. This product is designed for use in the domestic environment only. 4.2 SPECIFICATION Stock No: ..........................32301 Part No: ..........................BVP26 Engine displacement ....................... 25.4cc Maximum revolutions per min.

  • Page 6: Health And Safety Information 5.1 Specific Safety Instruction For Petrol Blower/Vac's

    HEALTH AND SAFETY INFORMATION 5.1 SPECIFIC SAFETY INSTRUCTIONS FOR PETROL BLOWER/VAC’S Warning! For your safety, please read and understand these instructions before assembling, operating or maintaining this machine. – Never attempt to modify or operate a modified machine. Fully assemble this machine, including all relevant guards, before operating.
  • Page 7 HEALTH AND SAFETY INFORMATION – Storing fuels in closed containers. Keeping in mind that fuels may evaporate at room temperature and collect on the floor of closed rooms (risk of explosion). – Start the device at least nine metres away from any stored fuels or flammable liquids. Fuels are toxic, they contain substances that have an immediate toxic effect and may cause permanent damage to your health.

  • Page 8: Technical Description 6.1 Identification

    TECHNICAL DESCRIPTION 6.1 IDENTIFICATION Petrol motor unit. Recoil starter cord. Carry handle. Air filter cover. Throttle trigger. Fuel tank cap. Fuel tank. ON/OFF/Ignition switch. Blower nozzle. Side handle. Blower tube. Exhaust. Vacuum air intake. Spark plug cap. Carry strap. Fuel primer bulb. Choke lever.

  • Page 9: Unpacking And Checking 7.1 Packaging

    Lay the contents out and check them against the parts shown below. If any part is damaged or missing; please contact the Draper Helpline (the telephone number appears on the Title page) and do not attempt to use the machine.
  • Page 10 ASSEMBLING THE PETROL BLOWER/VAC Important: This petrol blower vac can switch from blowing to suction functions. This is achieved by connecting the tubes to the correct mounting. – For blowing function, the tube is fitted to the front outlet (see section 8.1: assembling the blower tubes).

  • Page 11: Assembling The Vacuum Tubes

    ASSEMBLING THE PETROL BLOWER/VAC 8.2 ASSEMBLING THE VACUUM TUBES – FIGS. 4 – 7 Warning! Stop the engine and put the switch to STOP position before installing parts, making adjustments, cleaning or when not in use. Failure to do so could result in possible serious injury. Unscrew the retaining knob on the vacuum intake cover...

  • Page 12: Attaching The Collection Bag

    ASSEMBLING THE PETROL BLOWER/VAC 8.3 ATTACHING THE COLLECTION Fig.8 BAG – FIGS. 8 – 10 Warning! Stop the engine and put the switch to STOP position before installing parts, making adjustments, cleaning or when not in use. Failure to do so could result in possible serious injury. Slide the collection bag intake tube over the discharge port...
  • Page 13 ASSEMBLING THE PETROL BLOWER/VAC The carry strap is attached by threading each of the 2 sprung loaded buckles through the holes in the 2 attachment points . Fig.12 9.1 FUELLING – FIGS. 13 – 15 This petrol blower vac is equipped with a 2 stroke air cooled petrol engine.

  • Page 14: Cold Starting The Engine

    OPERATING INSTRUCTIONS Fig.16 9.2 COLD STARTING THE ENGINE – FIGS. 16 – 20 Rest the blower/vac on a stable surface. Press the ON/OFF/IGNITION switch to the ‘I’ (ON) position. Pull the choke lever upwards to the (closed) position. Pump the primer eight times until fuel flows in and out of the discharge line with no air...

  • Page 15: Warm Starting The Engine

    OPERATING INSTRUCTIONS Once the motor has started, allow the motor to warm up for a few minutes before commencing operation. 5 sec Fig.20 2 – 3 mins 9.3 WARM STARTING THE ENGINE – Fig.21 FIGS. 21 – 23 Rest the blower/vac on a stable surface. Press the ON/OFF/IGNITION switch to the ‘I’...

  • Page 16: Stopping The Engine

    OPERATING INSTRUCTIONS 9.4 STOPPING THE ENGINE – FIG. 24 Fig.24 To stop the engine, move the stop switch the “stop” position. Note: If the blower/vac has been running at full speed for a prolonged period allow the engine to idle for a few minutes before stopping. The engine must be stopped while carrying out any other operation such as: –...

  • Page 17: Using The Blower/Vac

    OPERATING INSTRUCTIONS 9.6 USING THE BLOWER/VAC – FIGS. 27 – 29 Note: As a general rule, try to operate the machine using the lowest throttle setting necessary for the task in hand. Blower Operation – Figs. 27 – 28 Note: To set up the machine for blowing applications, refer to Section 8: Assembling The Petrol Blower/Vac.

  • Page 18: Spark Plug Maintenance

    10. MAINTENANCE AND TROUBLESHOOTING Regular maintenance tasks must be carried out at specific intervals to retain the engine's performance. 10.1 CLEANING THE AIR FILTER – FIGS. 30 – 32 A dirty, clogged air filter will restrict the air flow in to the engine and will cause rough running.

  • Page 19: Cleaning The Fuel Filter

    10. MAINTENANCE AND TROUBLESHOOTING Using the spark plug box spanner supplied Fig.34 , turn the spark plug anticlockwise to remove it. Clean the spark plug and check the electrode gap. Maintain a gap of 0.6 to 0.7mm. – If required, replace the spark plug with a L7T 0.6mm to 0.7mm coded plug, or equivalent, gapped to 0.6 –...

  • Page 20: Cleaning And Maintenance Overview

    10. MAINTENANCE AND TROUBLESHOOTING 10.4 TROUBLESHOOTING GUIDE (continued) Fault Possible cause Remedy The motor does not 1. The air filter is dirty. 1. Clean the air filter. reach its maximum 2. The spark plug is dirty. 2. Clean the spark plug. speed.

  • Page 21: Explanation Of Symbols 11.1 Explanation Of Symbols

    11. EXPLANATION OF SYMBOLS 11.1 EXPLANATION OF SYMBOLS Single value noise marking. (Maximum declared Warning! A-Weighted sound power level Hot surface. in decibels). Warning! Danger! Wear suitable gloves. Risk of flying debris. Warning! Fuel/2-stroke oil mixture ratio. Wear suitable foot protection. Warning! Strictly no naked flames or Wear suitable eye/face mask...

  • Page 22: Disposal 12.1 Disposal

    12. DISPOSAL 12.1 DISPOSAL – At the end of the machine’s working life, or when it can no longer be repaired, ensure that it is disposed of according to national regulations. – Contact your local authority for details of collection schemes in your area. In all circumstances: •...
  • Page 23 NOTES - 23 -...
  • Page 24 ©Published by Draper Tools Limited. No part of this publication may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical photocopying, recording or otherwise without prior permission in writing from Draper Tools Ltd.
