Summary of Contents for Westbo Nobel

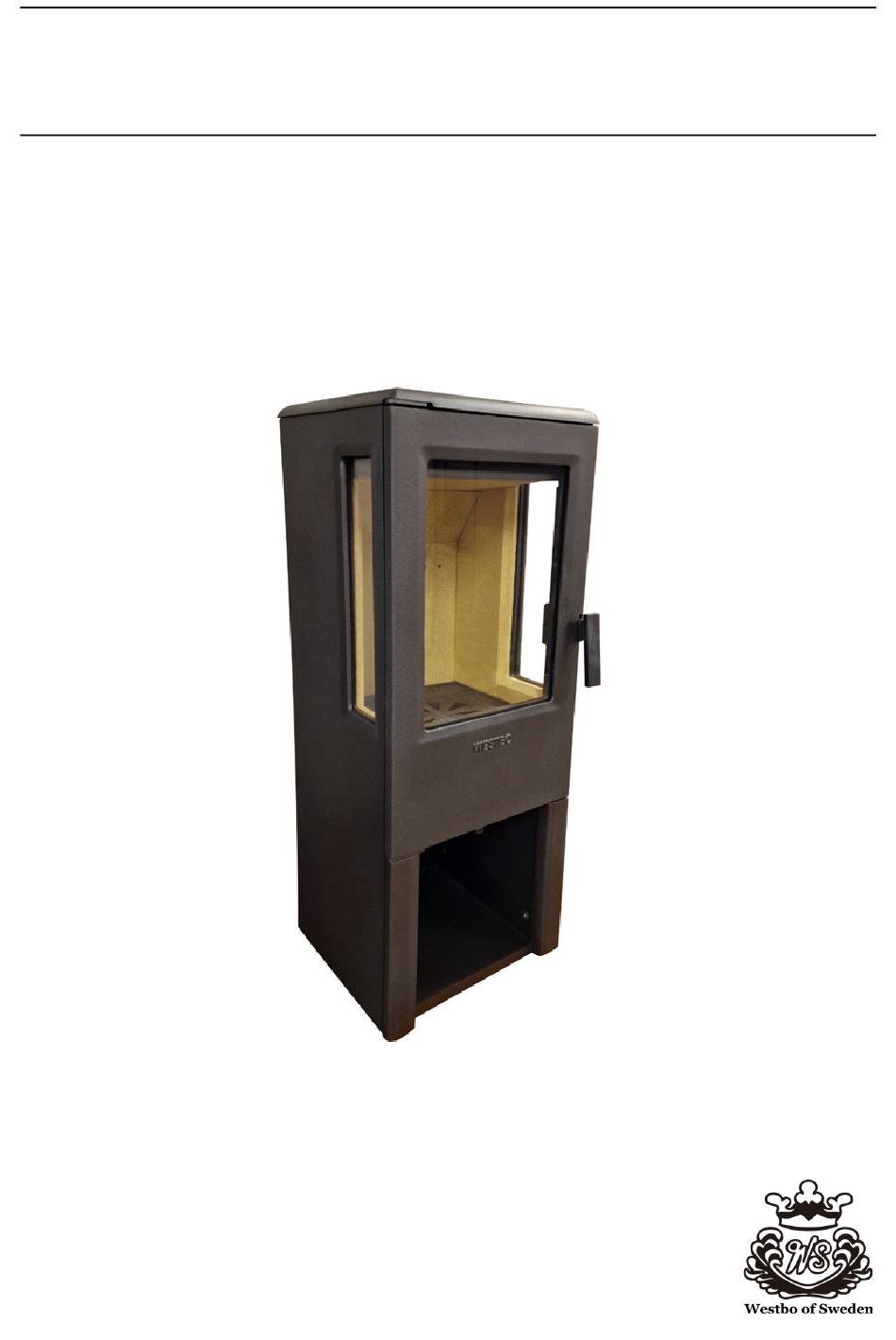

- Page 1 MANUAL AND INSTRUCTION WESTBO Nobel...
- Page 2 Westbo Nobel General advise Building notification Before installation of the fireplace and construction of a chimney, it is a demand to do a building notification. For piece of advise, contact your local authorities. When receiving the stove When the stove is received it is important to check the goods to see that the stove is not damaged during the transport.
- Page 3 Westbo Nobel General advise Westbo Nobel can as standard only be connected backwards. The collar is 125 mm in diameter. For connection back/top a special adapter must be purchased. The Westbo Nobel have four adjustable feet located under the stove.
-
Page 4: General Instructions
Westbo Nobel General instructions Fire up We recommend that you use fire starters that you find at your dealer. By using them it will be a quick fire of the wood and a cleaner combustion. Never use ignition fluid. By the first fire the handle for air supply should be completely open. - Page 5 Westbo Nobel Wood handling Storage The splitted wood logs should be stored for 1-2 years before usage. If the wood is put in piles it will dry faster. Before use, store the wood in room temperature. Please keep in mind that the wood during Autumn and Winter absorbs moist from the air.
- Page 6 Westbo Nobel Change of glass Replace the side glass To be able to change glass the interior must be removed. A support must also be made that the stove can stand on when removing interior. 1. Start by taking out fire bricks according to the instruc- tions on the next page.
- Page 7 Westbo Nobel Assembling/removal of vermiculite 2. Then remove the big Open the door to access 1. Start with the front rear side-brick by first lift the fire chamber. Remove side-bricks closest to the front buffel plate that the front brick.
-
Page 8: Technical Data
Westbo Nobel Technical data 119/124 119/124 Weight 100 kg Height 916 mm Widh 355 mm Deep 326 mm Smoke pipe 120/125 mm Size of the combustion chamber high/width/depth 360 mm/260 mm/225 mm Material Cast iron Nominal output 4,6 kW Efficency... -
Page 9: Declaration Of Performance
Type Wood burning stove Trade name Westbo Nobel Intended area of use Heating of rooms in residential buildings Fuel Wood Westbo of Sweden AB MANUFACTURER Industrigatan 8 , 333 75 Reftele, Sweden Name Address info@westbo.net www.westbo.net VERIFICATION According to AVCP... -
Page 10: Declaration Of Conformity
Westbo Nobel Declaration of conformity EC declaration of conformity The Manufacturer WESTBO OF SWEDEN AB Industrigatan 8 , 333 75 Reftele, Sweden declates under our responsibility that “room heater for in residental buildings without hot water preparation” with trade name... -
Page 11: Warranty
Westbo Nobel Warranty WARRANTY Westbo of Sweden has a 15 year stove casting warranty and a 1 year warranty concerning natural wear and tear of articles of consumption such as firebricks, vermiculite, grates, glass, handles and rope seal. The warranty is only valid if the stove has been used in a proper way according to the instructions and will not be valid if any extreme or careless handling has occurred like overheating, wrong fuel or too much wood etc.
