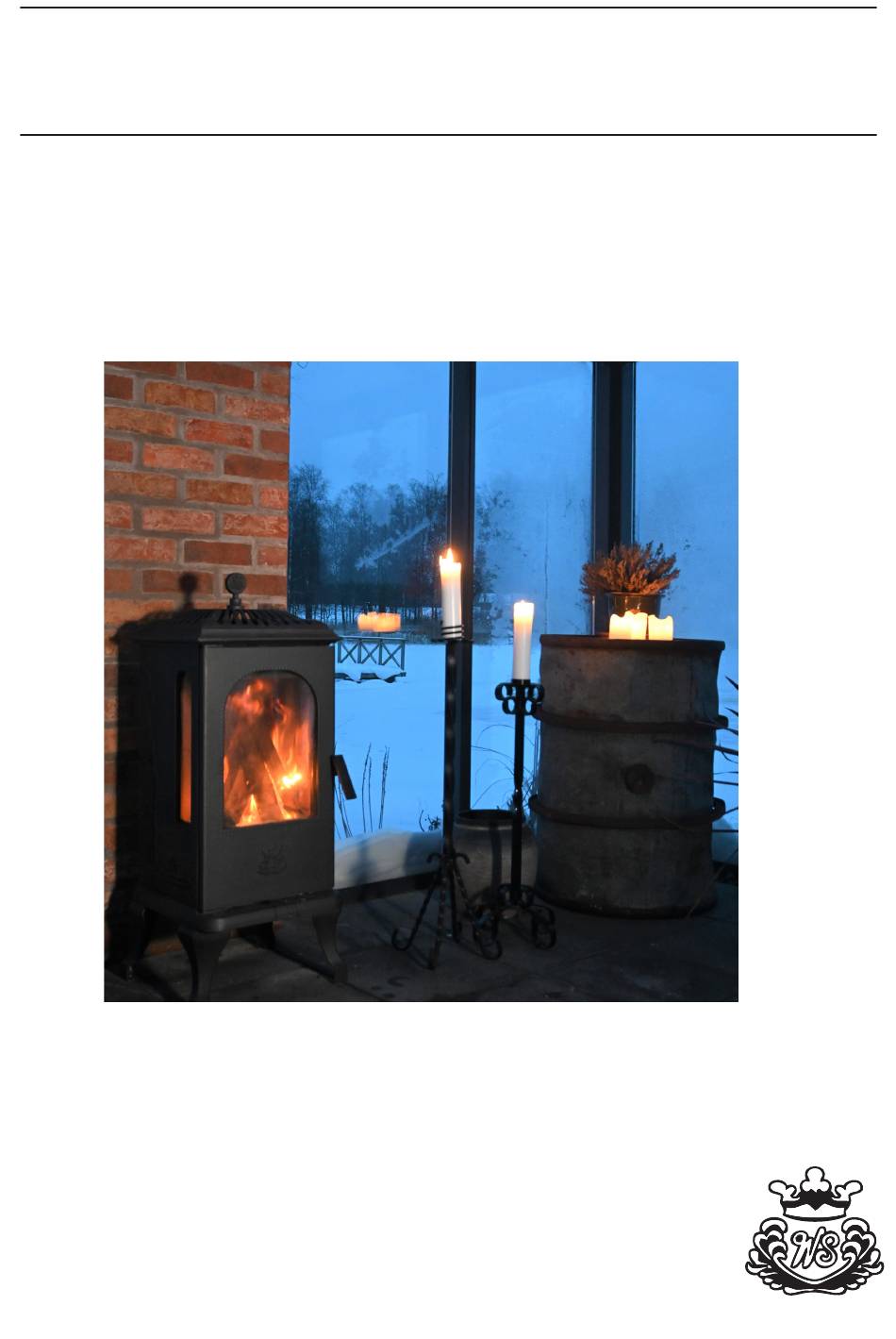

MANUAL AND INSTRUCTION
WESTBO VICTORIA 100
Westbo of Sweden

Advertisement

loading
Need help?

Need help?

Do you have a question about the VICTORIA 100 and is the answer not in the manual?

Questions and answers

Related Manuals for Westbo VICTORIA 100

Summary of Contents for Westbo VICTORIA 100

  • Page 1 MANUAL AND INSTRUCTION WESTBO VICTORIA 100 Westbo of Sweden...
  • Page 2 The Westbo Victoria 100 6. Contact the chimney sweeper for inspection. have adjustabele feets. Westbo Victoria 100 is preassembled at the factory with the connection to the rear. Westbo of Sweden...

  • Page 3: General Instructions

    Westbo Victoria 100 General instructions How to use Air controls Westbo Victoria 100 is equipped with one air control and it is located under the stove, see picture on the right. Fire up We recommend you to use fire starters or equivalent.
  • Page 4 Westbo Victoria 100 Replace side glass Replace the side glass 1. Start by taking out fire bricks ac- cording to the instructions on the next page. 2. Remove the grate bottom. The lever of the rust is assembled with a nut that can be accessed through the opening for the ash tray.
  • Page 5 Westbo Victoria 100 Assembling/removal of vermiculite Open the door to access the 1. Start with the small 2. Then remove the big fire chamber. side-brick. side-brick by first lift the roof-brick that locks the big side-brick. 3. Take down the roof-brick.

  • Page 6: Technical Data

    Westbo Victoria 100 Technical data Weight 90 kg Drawn Date 2022/3/9 Material Cast iron Checked Doc.Nr Medium power 4,6 kW Sheet V100 Efficiency 81 % Size CE-approved EN 13240 Distance to combustable: Back 150 mm Side 450 mm Window in the front...
  • Page 7 Westbo Victoria 100 Wood handling Preparation We recommend a diameter of 6-10 centimetre and that the wood logs are 6 centimetre shorter than the fireplace. This will help the air to circulate in the best possible way. If the diameter is bigger, the wood logs must be splitted. Wood logs that are splitted will dry better.

  • Page 8: Warranty

    Westbo Victoria 100 Warranty WARRANTY Westbo of Sweden has a 15 year stove casting warranty and a 1 year warranty concerning natural wear and tear of articles of consumption such as firebricks, vermiculite, grates, glass, handles and rope seal. The warranty is only valid if the stove has been used in a proper way...
