Summary of Contents for Westbo Carl 95

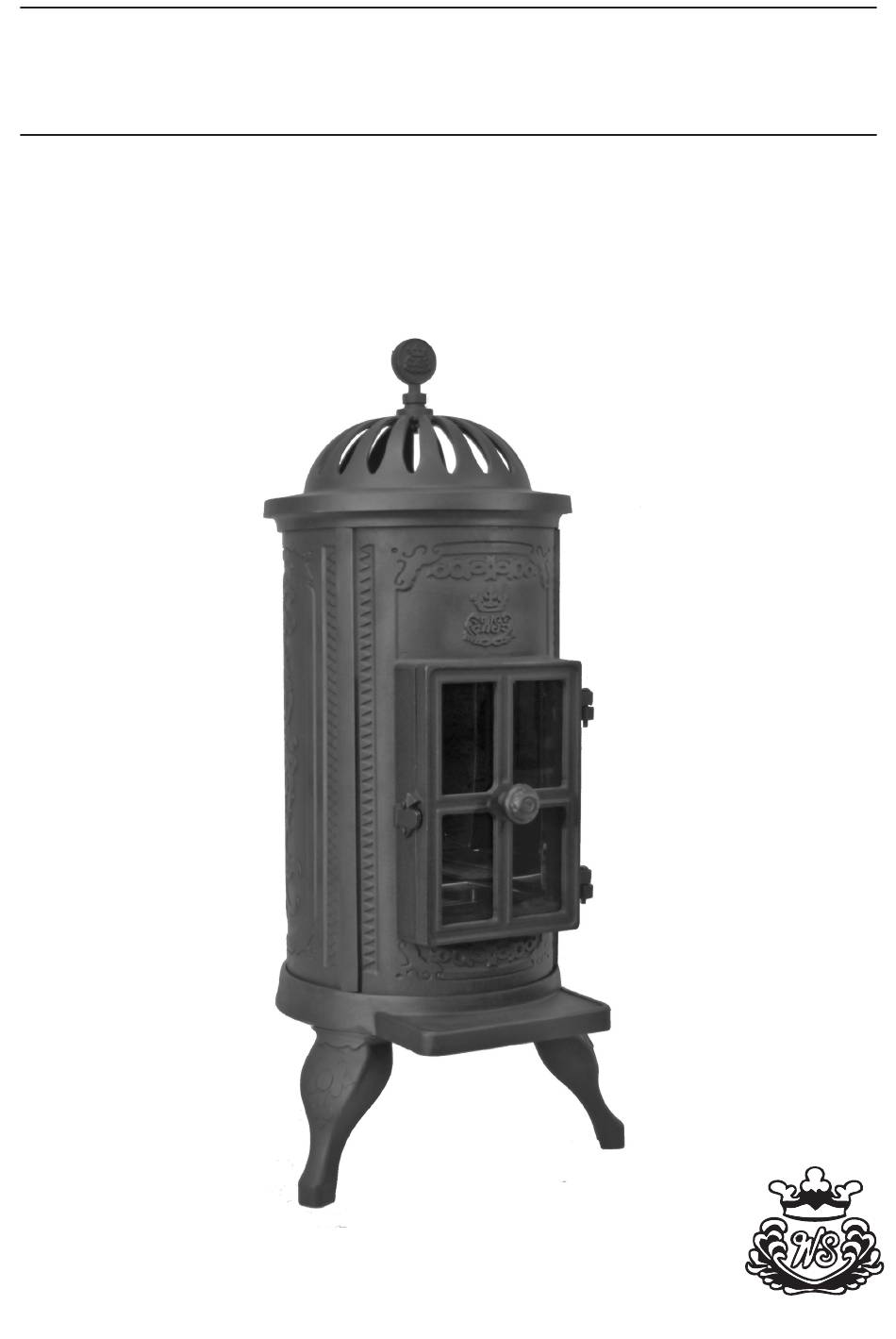

- Page 1 MANUAL AND INSTRUCTION WESTBO CARL 95 Westbo of Sweden...
-
Page 2: General Instructions
Westbo Carl 95 General instructions Building notification Before installation of the fire place and construction of a chimney, it is a demand to do a building notification. For piece of advise, contact your local authorities. When receiving the stove When the stove is received it is important to check the goods to see that the stove is not damaged during the transport. - Page 3 Connection to existing chimney Before starting interventions in the smoke channel, it is impor- Westbo Carl 95 could be connected to the back as original. Top connection can be purchased as extras. tant to let an expert check and inspect. This to be sure that it is Adapter is 120 mm in diameter.
- Page 4 Westbo Carl 95 Change of glass, handling of ashes Change of front glass Open the cover and remove the brackets in the corners inside the stove. The seal between the glass and the door must be checked. In some cases it needs to be replaced.
- Page 5 Westbo Carl 95 Assembling/removal of vermiculite Use this fitting instruction if the vermiculite details needs to be changed. 1. Remove the crown. 2. Remove the cooking plate and the ring. 3. Remove the deflector in steel and 4. Remove the three screws on each 5.
- Page 6 Westbo Carl 95 General Instructions How to use the stove Note! It is important to get a quick flashover of the wood, do Air controls not close the glass hatch before the wood has started to The stove is equipped with a handle for air supply to the burn.
- Page 7 Westbo Carl 95 Wood handling Preparation We recommend a diameter of 6-10 centimetre and that the wood logs are 6 centimetre shorter than the fireplace. This will help the air to circulate in the best possible way. If the diameter is bigger, the wood logs must be splitted. Wood logs that are splitted will dry better.
-
Page 8: Technical Data
Westbo Carl 95 Technical data Technical data Weight 65 kg Drawn Date Height 9530 mm 2022/3/10 Checked Doc.Nr Widh 443 mm Deep 431 mm Sheet Carl 95 Smoke channel 120 mm Size Material Cast iron Medium power 4,0 kW Efficency... - Page 9 Westbo Carl 95...
-
Page 10: Product Fiche
Westbo Carl 95 Product fiche... - Page 11 Westbo Carl 95 Technical documentation...
- Page 12 Westbo Carl 95 Technical documentation...
- Page 13 Westbo Carl 95 Technical documentation...
