TP Toys Everest Square Wood Swing Frames Manual
TP Toys Everest Square Wood Swing Frames Manual

TP Toys Everest Square Wood Swing Frames Manual

Single, double & triple wooden swing frames, double wooden swing frame & extension

Advertisement

Quick Links

Instructions for assembly, maintenance and safe use.
We constantly strive to improve our assembly instructions. To see the most current
version of this instruction for assembly, maintenance and safe use. Please visit the
product page at tptoys.com
Robovision Ltd t/a TP Toys
Unit 11, Enterprise Way, Flitwick, Bedfordshire, MK45 5BX England
TP Everest - Square Wood Swings In0745-A 25.04.22.indd 1
TP Everest - Square Wood Swings In0745-A 25.04.22.indd 1
Single, Double & Triple Wooden Swing Frames
Double Wooden Swing Frame & Extension
Single
Triple

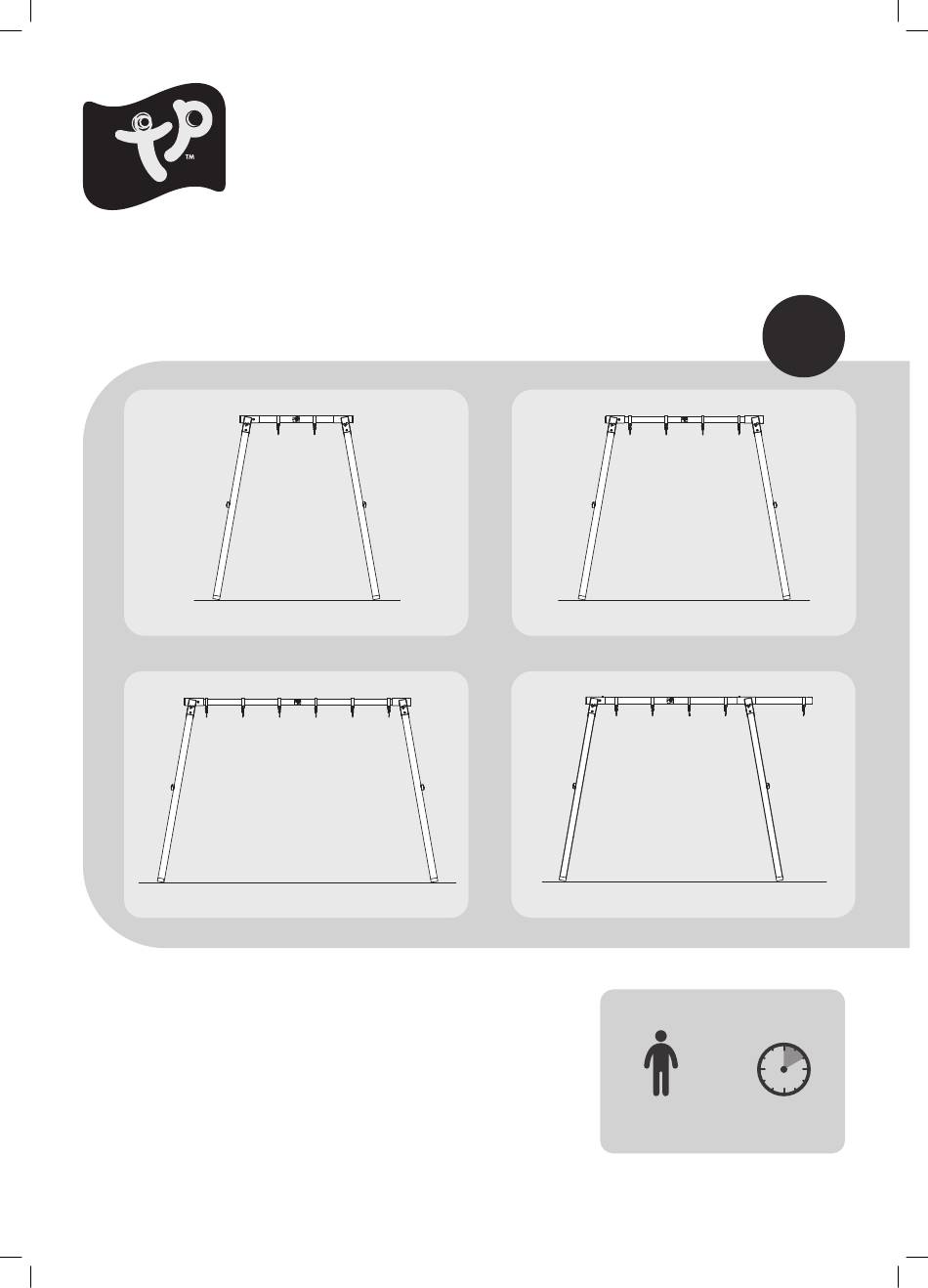

Everest Square Wood
Swing Frames
Double with Extension
x2 Person build
1
3yrs+
Double
2hr Build time
tptoys.com
25/04/2022 10:09
25/04/2022 10:09

Advertisement

loading
Need help?

Need help?

Do you have a question about the Everest Square Wood Swing Frames and is the answer not in the manual?

Questions and answers

Summary of Contents for TP Toys Everest Square Wood Swing Frames

  • Page 1 Please visit the product page at tptoys.com 2hr Build time x2 Person build Robovision Ltd t/a TP Toys tptoys.com Unit 11, Enterprise Way, Flitwick, Bedfordshire, MK45 5BX England TP Everest - Square Wood Swings In0745-A 25.04.22.indd 1 TP Everest - Square Wood Swings In0745-A 25.04.22.indd 1...
  • Page 2 WARNINGS! • THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM AGES 3+ YEARS. • CHILDREN MUST NOT USE THE EQUIPMENT UNTIL PROPERLY INSTALLED. • THIS PRODUCT CONTAINS SMALL PARTS AND IS NOT SUITABLE FOR CHILDREN UNDER 36 MONTHS. • REMOVE ALL PACKAGING BEFORE GIVING TO YOUR CHILDREN. CONTAINS SMALL PARTS.
  • Page 3: Safe Play Area

    2 Know about wood Know about wood Connaître le bois Unlike steel, wood is a natural, organic material and each piece will be Contrairement à l’acier, le bois est un matériau naturel et organique, unique, bearing its own knots, cracks and variations in colour and, unlike chaque pièce est unique et porte ses propres nœuds, fissures et variations steel, wood will react significantly to changes in atmospheric conditions.
  • Page 4 Tools - You will need: / Outils - Vous aurez besoin de : Also Required: Également requis : Combi Drill Mallet Tape Measure Step Ladder Spirit Level Not Supplied Screwdriver Bit Shovel Sockets Wrench Screwdriver Spanner 10 & 13mm 10 & 13mm 5mm - Drill Bit Single, Double, Triple and Double with Extension Portique à...
  • Page 5 Everest Square Wood Swing Frames Single Swing Frame / Portique à Balançoire Unique SQLP90 x2 MW9270 2700mm x2 MW3170 1500mm x1 SQSTB MW9150 x1 Double Swing Frame / Portique à Balançoire Double SQLP90 x2 MW9270 2700mm x2 MW3170 1500mm x1...
  • Page 6 Single, Double, Triple and Double Swing Frame / Portique à Balançoire Unique, Double et Triple M8 x25mm FA7184 60mm FA8361 IMPORTANT ASSEMBLY TIP CONSEIL DE MONTAGE IMPORTANT Make sure you thread the metal collars (PR5377) onto your top bar before securing the brackets to each end 10mm Assurez-vous d’enfiler les bagues métalliques (PR5377) à...
  • Page 7 Single Wooden Swing Frame - Seat Configuration 40mm Configuration du Portique à Balançoire - Unique FA8380 Single x2 With 1 Single Swing Seat 1500mm 490mm 445mm 490mm Swing position With 1 Glide Ride 1500mm 750mm 750mm Bracket for rigid downtube Glide Ride With 1 Roped Accessory 1500mm 735mm...
  • Page 8 Double Wooden Swing Frame - Swing Configuration 40mm Configuration du Portique à Balançoire - Double FA8380 Double x4 With 2 Single Swing Seats 2100mm 310mm 445mm 450mm 445mm 310mm Swing position Swing position With 1 Glide Ride & 1 Single Swing Seat 2100mm 310mm 445mm...
  • Page 9 Triple Wooden Swing Frame - Swing Configuration 40mm Configuration du Portique à Balançoire - Triple FA8380 Triple x6 With 3 Single Swing Seats 3000mm 450mm 277.5mm 445mm 450mm 445mm 445mm 277.5mm Swing position Swing position Swing position With 2 Single Swing Seats & 1 Glide Ride 3000mm 570mm 450mm...
  • Page 10 Double Wooden Swing Frame with Extension 40mm Portique Double Balançoire en Bois avec Extension FA8380 Double with Extension x6 With 2 Single Swing Seats & Roped Single Swing Accessory 3000mm 385mm 445mm 450mm 445mm 385mm 750mm 100mm Swing position Swing position Single Roped Accessory With 1 Nest Swing &...
  • Page 11 ø IMPORTANT ASSEMBLY TIP / CONSEIL DE MONTAGE IMPORTANT TP Everest - Square Wood Swings In0745-A 25.04.22.indd 11 TP Everest - Square Wood Swings In0745-A 25.04.22.indd 11 25/04/2022 10:09 25/04/2022 10:09...
  • Page 12 Single, Double, Triple and Double with Extension Portique à Balançoire Unique, Double, Triple, et Double avec extension MW7270 2700mm x2 M8 x25mm FA7184 50mm FA8359 x4 ASSEMBLY TIP CONSEIL DE MONTAGE Generic view of Top Bar only. Actual Top Bar will vary ø...
  • Page 13 MW3170 1500mm x1 M8 x25mm FA7184 60mm FA8361 ø ASSEMBLY TIP CONSEIL DE MONTAGE Generic view of Top Bar only. Actual Top Bar will vary depending on product purchased. Vue générique de la Barre Supérieure uniquement. La ASSEMBLY TIP Barre Supérieure en elle-même peut varier selon le CONSEIL DE MONTAGE produit acheté.
  • Page 14 TP Everest - Square Wood Swings In0745-A 25.04.22.indd 14 TP Everest - Square Wood Swings In0745-A 25.04.22.indd 14 25/04/2022 10:09 25/04/2022 10:09...
  • Page 15 M8 x25mm FA7184 60mm FA8361 PR5069 45° TP814 300mm 300mm 300mm ø Supplied. TP Everest - Square Wood Swings In0745-A 25.04.22.indd 15 TP Everest - Square Wood Swings In0745-A 25.04.22.indd 15 25/04/2022 10:09 25/04/2022 10:09...
  • Page 16 Attaching Swing Accessories Attacher les Accessoires de Balançoire Please refer to product instruction manuals supplied with swing accessories for assembly. Veuillez vous référer aux manuels d’instructions fournis avec les accessoires de balançoire pour le montage. IMPORTANT - Swing Accessories - Height adjustment IMPORTANT - Accessoires de balançoire - Réglage de la hauteur TP928 TP902/TP932...
  • Page 17 TP Everest - Square Wood Swings In0745-A 25.04.22.indd 17 TP Everest - Square Wood Swings In0745-A 25.04.22.indd 17 25/04/2022 10:09 25/04/2022 10:09...
  • Page 18 TP Everest - Square Wood Swings In0745-A 25.04.22.indd 18 TP Everest - Square Wood Swings In0745-A 25.04.22.indd 18 25/04/2022 10:09 25/04/2022 10:09...
  • Page 19 TP Everest - Square Wood Swings In0745-A 25.04.22.indd 19 TP Everest - Square Wood Swings In0745-A 25.04.22.indd 19 25/04/2022 10:09 25/04/2022 10:09...
  • Page 20 The TP logo is a UK Registered trademark. Robovision Ltd t/a TP Toys protects their unique designs worldwide with patents and design registrations. For full information on the intellectual property relating to TP products please visit www.tptoys.com/intellectualproperty Made in Poland TP Everest - Square Wood Swings In0745-A 25.04.22.indd 20...
