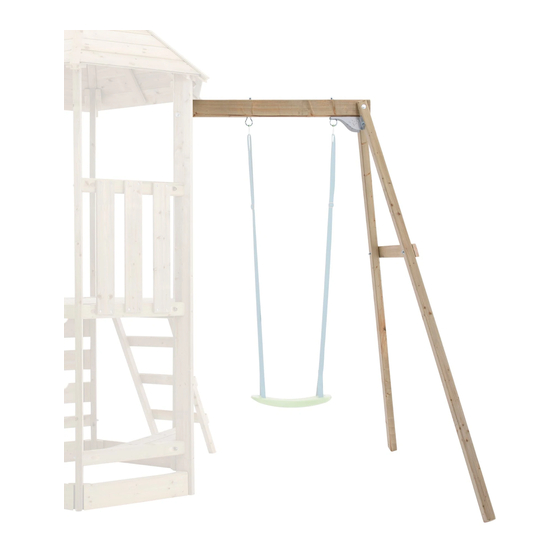

TP338 Castlewood Single Wooden Swing Arm
TP335 Castlewood Double Wooden Swing Arm
Instructions for assembly, maintenance and safe use.
Please retain for future reference.
We constantly strive to improve our assembly instructions. To see the most current version of this
instruction for assembly, maintenance and safe use. Please visit the product page at tptoys.com
TP338 Castlewood Single Wooden Swing Arm
(Swing Seat not included)
WARNINGS!
THIS PRODUCT CONTAINS SMALL PARTS AND IS NOT
SUITABLE FOR CHILDREN UNDER 36 MONTHS.
CONTAINS SMALL PARTS. CHOKING HAZARD.
ONLY FOR DOMESTIC USE.
FOR OUTDOOR USE.
ADULT SUPERVISION IS REQUIRED.
TOY MUST BE ASSEMBLED BY AN ADULT BEFORE USE.
CHILDREN MUST NOT USE THE EQUIPMENT UNTIL
PROPERLY INSTALLED.
TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 1
TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 1
2 Hrs
Build Time
x2
Robovision Ltd t/a TP Toys
Unit 11, Enterprise Way, Flitwick, Bedfordshire, MK45 5BX England
www.tptoys.com
TP335 Castlewood Double Wooden Swing Arm
(Swing Seats not included)
REMOVE ALL PACKAGING BEFORE GIVING TO YOUR
CHILDREN.
ANCHORS THAT ARE SUPPLIED WITH THIS PRODUCT MUST
BE FITTED BEFORE USE.
THIS PRODUCT IS INTENDED FOR USE BY CHILDREN FROM
AGES 3+ YEARS.
MAXIMUM USER WEIGHT UP TO 60KGS PER SEAT.
07/01/2020 09:31
07/01/2020 09:31

Advertisement

loading
Need help?

Need help?

Do you have a question about the Castlewood Single Wooden Swing Arm and is the answer not in the manual?

Questions and answers

Related Manuals for TP Toys Castlewood Single Wooden Swing Arm

Summary of Contents for TP Toys Castlewood Single Wooden Swing Arm

  • Page 1 TP338 Castlewood Single Wooden Swing Arm TP335 Castlewood Double Wooden Swing Arm Instructions for assembly, maintenance and safe use. Please retain for future reference. We constantly strive to improve our assembly instructions. To see the most current version of this instruction for assembly, maintenance and safe use.
  • Page 2 Important advice for assembly, maintenance and safe use Toys must be assembled by an adult before use exactly in accordance with the instructions. 2. Check all parts are present before you start to assemble the product. 3. Place small parts on a tray or similar, to ensure they are not lost. 4.
  • Page 3 375cm Dimensions 375cm TP338 270cm 270cm 153cm 153cm 183cm 208cm 183cm 208cm 375cm TP335 375cm 366cm 366cm 245cm 245cm 183cm 208cm 183cm 208cm 375cm 270cm 153cm Know About Wood 375cm Unlike steel, wood is a natural, organic material and each piece will be unique, bearing its own knots, cracks 183cm 208cm and variations in colour and, unlike steel, wood will react significantly to changes in atmospheric conditions.
  • Page 4 10mm & 13mm 10mm & 13mm TP338 Castlewood Single Wooden Swing Arm Pack 1 MW1235 2260mm MW1226 835mm MW2054 926mm MW1018 1168mm SP3338 4.5 x 50mm FA9705 M8 x 30mm FA5124 M8 x 70mm FA8439 PR7691 M6 x 70mm FA5170...
  • Page 5 TP335 Castlewood Double Wooden Swing Arm Pack 1 MW1235 2260mm MW1226 835mm MW2054 926mm MW1950 2100mm SP3335 4.5 x 50mm FA9705 M8 x 30mm FA5124 M8 x 70mm FA8439 PR7691 M6 x 70mm FA5170 FA9774 M8 x 140mm FA6203 M8 x 170mm FA8645 PM2001 M8 x 25mm M6 x 20mm...
  • Page 6 TP338 Single Swing Arm MW1018 1168mm PR7691 4.5 x 50mm FA9705 FA9774 TP Castlewood Single/Double Wooden Swing Arm TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 6 TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 6 07/01/2020 09:31 07/01/2020 09:31...
  • Page 7 TP335 Double Swing Arm MW1950 2100mm PR7691 4.5 x 50mm FA9705 FA9774 TP Castlewood Single/Double Wooden Swing Arm TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 7 TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 7 07/01/2020 09:31 07/01/2020 09:31...
  • Page 8 MW1235 2260mm M8 x 25mm FA7184 FA5174 M8 x 30mm FA5124 M8 x 140mm FA6203 TP338 Single Swing Arm TP335 Double Swing Arm TP Castlewood Single/Double Wooden Swing Arm TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 8 TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 8 07/01/2020 09:31 07/01/2020 09:31...
  • Page 9 M6 x 70mm FA5170 M6 x 20mm FA5192 FA5094 TP338 Single Swing Arm TP335 Double Swing Arm TP Castlewood Single/Double Wooden Swing Arm TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 9 TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 9 07/01/2020 09:31 07/01/2020 09:31...
  • Page 10 MW2054 926mm M8 x 25mm FA7184 M8 x 70mm FA8439 MW2054 MW2054 (905mm) (905mm) Check TP Castlewood Single/Double Wooden Swing Arm TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 10 TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 10 07/01/2020 09:31 07/01/2020 09:31...
  • Page 11 M8 x 25mm FA5174 FA7184 M8 x 170mm FA8645 TP338 Single Swing Arm TP335 Double Swing Arm 90° TP Castlewood Single/Double Wooden Swing Arm TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 11 TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 11 07/01/2020 09:31 07/01/2020 09:31...
  • Page 12 PM2001 M6 x 20mm TP81 FA5192 FA5094 M6 x 70mm FA5170 45° 45° 300mm 300mm 300mm TP Castlewood Single/Double Wooden Swing Arm TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 12 TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 12 07/01/2020 09:31 07/01/2020 09:31...
  • Page 13 TP338 Castlewood Single TP335 Castlewood Double Wooden Swing Arm Wooden Swing Arm M8 x 25mm M8 x 25mm FA7184 FA8163 FA7184 FA8163 M8 FA9774 M8 FA9774 TP338 Single Swing Arm or TP335 Double Swing Arm Refer to separate accessory instructions for correct seat fitting.
  • Page 14 TP Castlewood Single/Double Wooden Swing Arm TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 14 TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 14 07/01/2020 09:31 07/01/2020 09:31...
  • Page 15 TP Castlewood Single/Double Wooden Swing Arm TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 15 TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 15 07/01/2020 09:31 07/01/2020 09:31...
  • Page 16 Thank you Thank you for purchasing this product. Please register your new product on line at tptoys.com www.tptoys.com/customer/productregistration Find out about the guarantee for this product, visit www.tptoys.com/customer/pages/guaranteeinformation For customer services and help with your product, visit www.tptoys.com/customer/help Your TP Guarantee Number/Product Batch No is TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 16 TP335 Double TP338 Single CW TW SwingArm IN3358 Issue-A 07.01.20.indd 16 07/01/2020 09:31...
