DEFINITION
Select for
Transmit and CS
IT or COO
Controller Not
Connected or in
Test Mode
Full and Receive
Empty and
Transmit

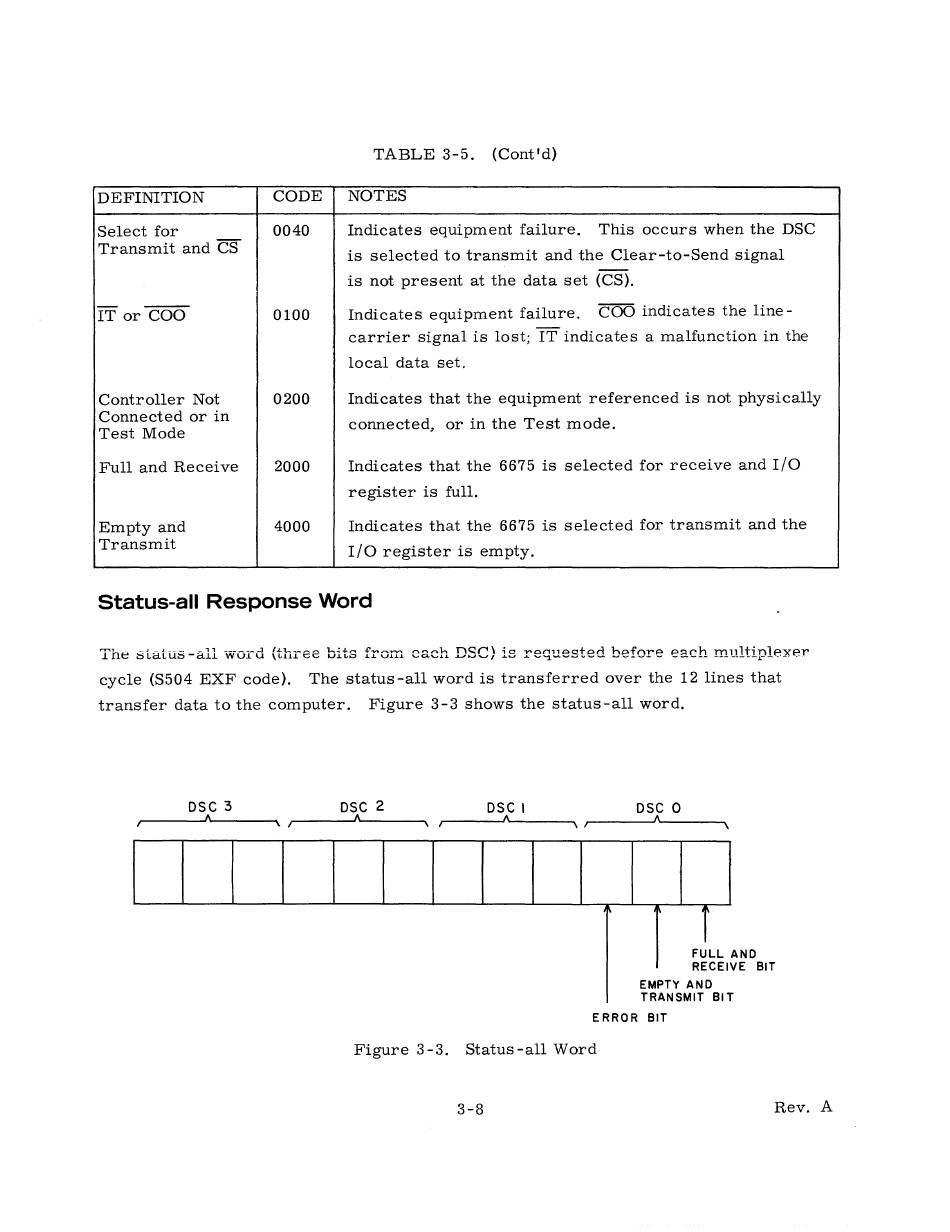

TABLE 3-5. (Cont'd)
CODE NOTES
0040 Indicates equipment failure. This occurs when the DSC
is selected to transmit and the Clear-to-Send signal
0100
0200
2000
4000
is not present at the data set (CS).
Indicates equipment failure. COO indicates the line -
carrier signal is lost;
IT
indicates a malfunction in the
local data set.
Indicates that the equipment referenced is not physically
connected, or in the Test mode.
Indicates that the 6675 is selected for receive and I/O
register is full.
Indicates that the 6675 is selected for transmit and the
I/O register is empty.
Status-all Response Word
The status-all word (three bits from each DSC) is requested before each multiplexer
cycle (S504 EXF code). The status-all word is transferred over the 12 lines that
transfer data to the computer. Figure 3-3 shows the status-all word.
DSC 3
DSC 2
DSC I DSC 0
T
FULL AND
RECEIVE BIT
EMPTY ANO
TRANSMIT Bl T
ERROR BIT
Figure 3-3. Status-all Word
3-8
Rev. A
