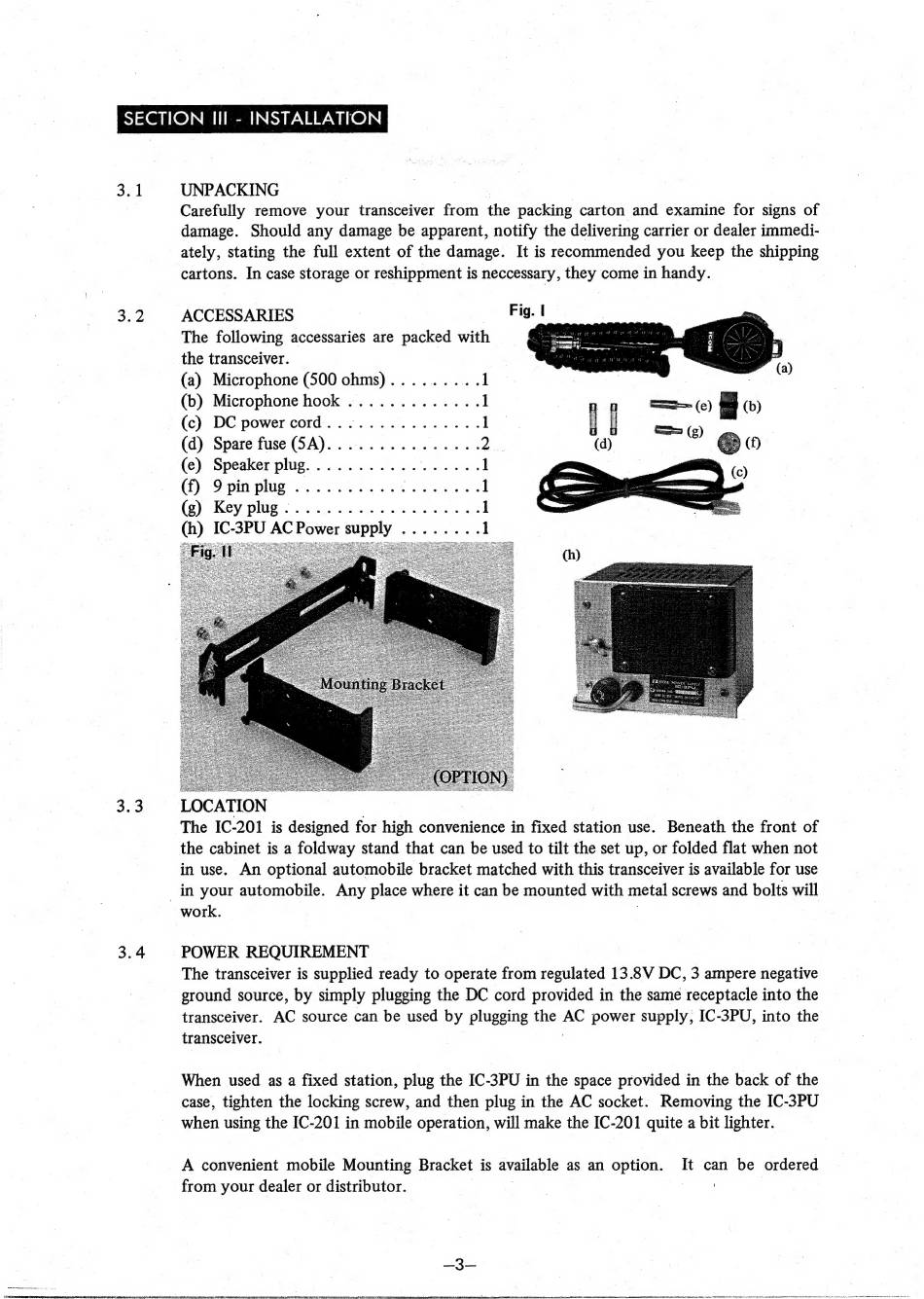

SECTION III - INSTALLATION
3.1
52
3.3
3.4
UNPACKING
Carefully remove your transceiver from the packing carton and examine for signs of
damage. Should any damage be apparent, notify the delivering carrier or dealer immedi-
ately, stating the full extent of the damage. It is recommended you keep the shipping
cartons. Їп case storage or reshippment is neccessary, they come in handy.
ACCESSARIES Fig. |
The following accessaries are packed with
the transceiver. " а)
(а) Microphone (500 ohms).........1 |
(b) Microphone hook ............. 1 = (e) g (b)
(c) DCpowercord............... 1 Got 2
(d) Spare fuse SA)............... 2
(e) Speaker plug........... ЖОЛГО 1
(f) 9pin plug ..........1.......1
(0) GJ SEE |
(h) IC-3PU AC Power supply ........1
LOCATION
The IC-201 is designed for high convenience in fixed station use. Beneath the front of
the cabinet is a foldway stand that can be used to tilt the set up, or folded flat when not
in use. Ап optional automobile bracket matched with this transceiver is available for use
in your automobile. Any place where it can be mounted with metal screws and bolts will
work.
POWER REQUIREMENT
The transceiver is supplied ready to operate from regulated 13.8V DC, 3 ampere negative
ground source, by simply plugging the DC cord provided in the same receptacle into the
transceiver. AC source can be used by plugging the AC power supply, IC-3PU, into the
transceiver.
When used as a fixed station, plug the IC-3PU in the space provided in the back of the
case, tighten the locking screw, and then plug in the AC socket. Removing the IC-3PU
when using the IC-201 in mobile operation, will make the IC-201 quite a bit lighter.
A convenient mobile Mounting Bracket is available as an option. It can be ordered
from your dealer or distributor. |
