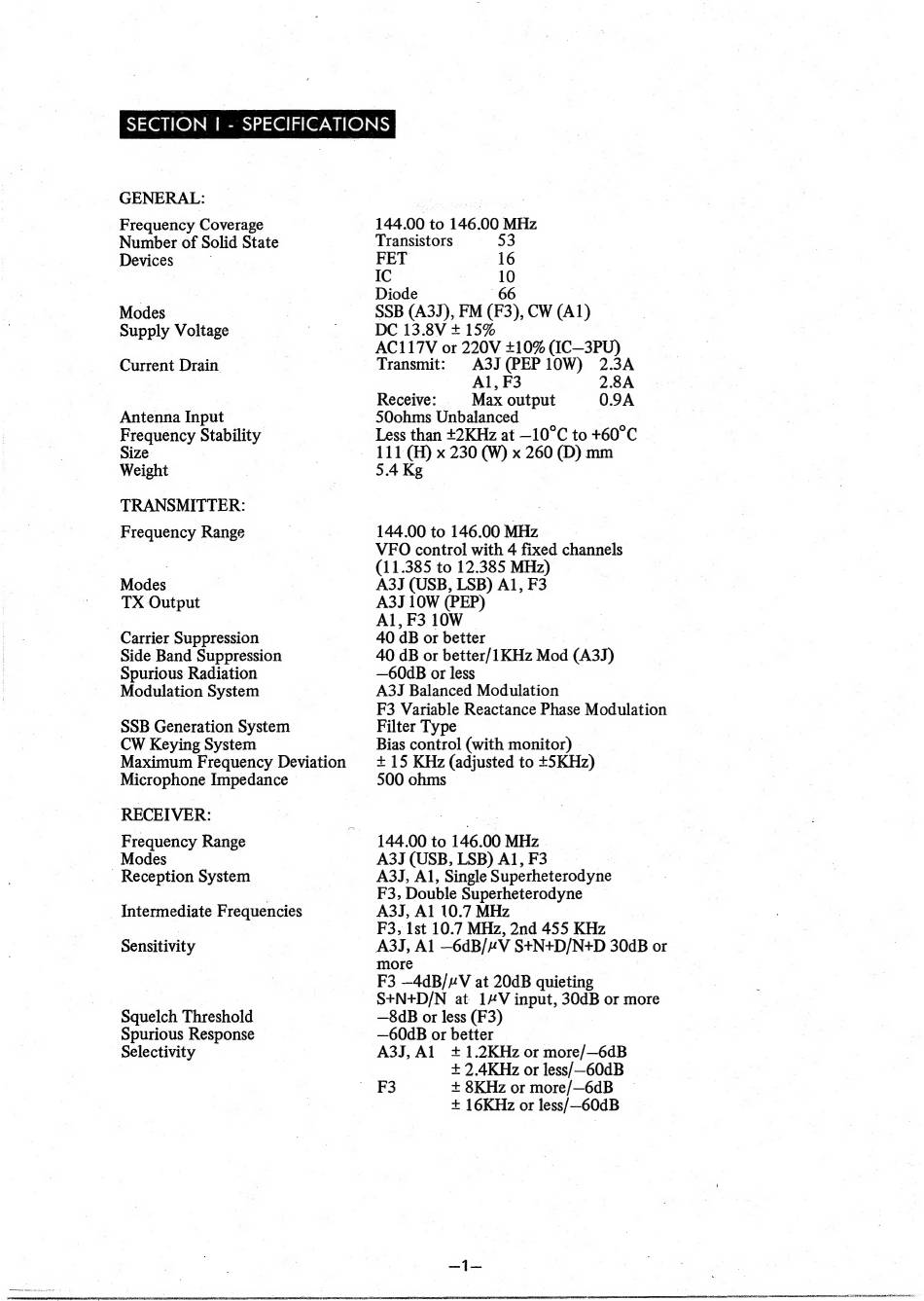

Section I - Specifications - Icom IC-201 Instruction Manual

GENERAL:
Frequency Coverage
Number of Solid State
Devices
Modes
Supply Voltage
Current Drain
Antenna Input
Frequency Stability
Size |
Weight
TRANSMITTER:
Frequency Range
Modes
TX Output
Carrier Suppression
Side Band Suppression
Spurious Radiation
Modulation System
SSB Generation System
CW Keying System
Maximum Frequency Deviation
Microphone Impedance
RECEIVER:
Frequency Range
. Modes
Reception System
Intermediate Frequencies
Sensitivity
Squelch Threshold
Spurious Response
Selectivity
SECTION I - SPECIFICATIONS
144.00 to 146.00 MHz
3
Transistors
FET 16
IC : 10
Рлоде 66
SSB (A3J), FM (F3), CW (Al)
DC 13.8V + 15%
_ AC117V or 220V +10% (IC—3PU)
Transmit: A3J(PEP10W) 2.3A
Al, F3 2.8A
Receive: Max output 0.9A
50ohms Unbalanced
Less than +2KHz at —10°C to +60°C
2111 (H) x 230 (W) x 260 (D) mm
5.4 Kg
144.00 to 146.00 MHz
VFO control with 4 fixed channels
(11.385 to 12.385 MHz)
АЗ] (USB, LSB) А1, ЕЗ
A3J 10W (PEP)
Al, F3 10W
40 dB or better
40 dB or better/1KHz Mod (A3J)
—60dB or less
A3J Balanced Modulation
F3 Variable Reactance Phase Modulation
Filter Type
Bias control (with monitor)
+ 15 KHz (adjusted to +5KHz)
500 ohms
144.00 to 146.00 MHz
A3J (USB, LSB) А1, ЕЗ
A3J, Al, Single Superheterodyne
F3, Double Superheterodyne
A3J, Al 10.7 MHz
F3, 1st 10.7 MHz, 2nd 455 KHz
A3J, Al —6dB/4V S+N+D/N+D 30dB or
more
ЕЗ —4dB/uV at 2088 quieting
S+N+D/N at 14V input, 30dB or more
—8dB or less (F3)
—60dB or better
A3J, A1 +1.2KHz or more/—6dB
+ 2.4KHz or less/—60dB
F3 + 8KHz or more/—6dB `
+ 16KHz or less/—60dB
