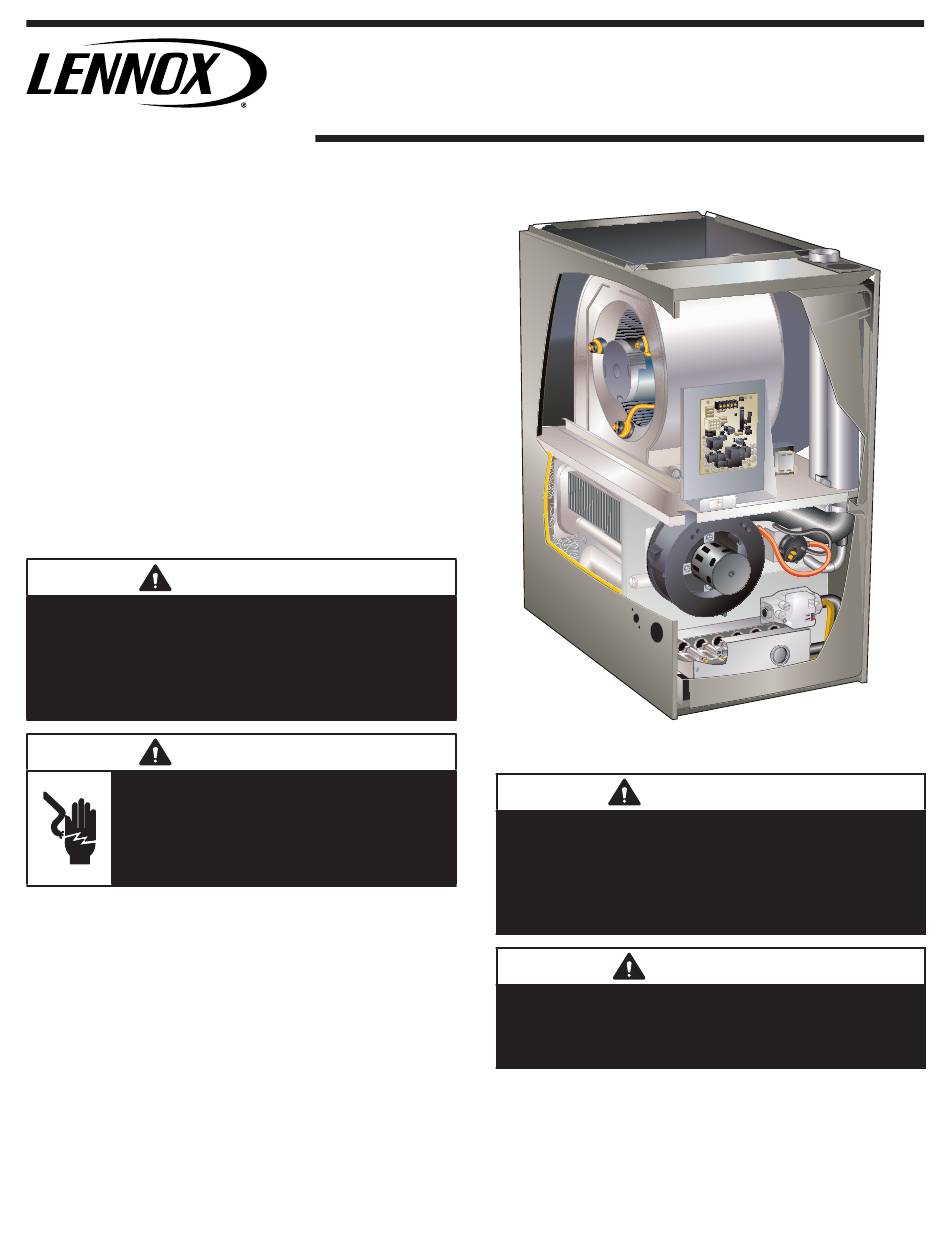

S e r v i c e L i t e r a t u r e
ML196DFEK series units are high-efficiency gas furnaces
manufactured with Lennox DuralokPlus aluminized steel
clamshell-type heat exchangers, with a stainless steel
condensing coil. ML196DFEK units are available in heat-
ing input capacities of 44,000 to 110,000 Btuh and cooling
applications from 2 through 5 tons. Refer to Product Spec-
ifications for proper sizing.
Units are factory equipped for use with natural gas. A kit
is available for conversion to LP/Propane operation. All
ML196DFEK units are equipped with a hot surface igni-
tion system. The gas valve is redundant to assure safety
shut-off as required by C.S.A.
The heat exchanger, burners and manifold assembly can
be removed for inspection and service. The maintenance
section gives a detailed description on how this is done.
All specifications are subject to change. Procedures out-
lined in this manual are presented as a recommendation
only and do not supersede or replace local or state codes.
WARNING
This furnace is equipped with an ignition control
factory enabled for use with A2L refrigerant systems.
Disabling the refrigerant detection functionality on
A2L system is prohibited by safety codes. Refer
to furnace installation instructions for refrigerant
system setup.
WARNING
Electric shock hazard. Can cause injury
or death. Before attempting to perform
any service or maintenance, turn the
electrical power to unit OFF at disconnect
switch(es). Unit may have multiple power
supplies.
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
. . . . . . . . . . . . . . . . . . . . . . . . . . 3
Twinning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
I-Unit Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
II-Placement and Installation . . . . . . . . . . . . . . . . . . . . 24
III-Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
IV-Heating System Service Checks . . . . . . . . . . . . . . 45
V-Typical Operating Conditions . . . . . . . . . . . . . . . . . 49
VI-Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
VII- Low GWP Application . . . . . . . . . . . . . . .. . . . . . . . . . 53
IX-Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
UNIT INFORMATION
UNIT INFORMATION
ML196DFEK WITH R454B SERIES UNITS
. . . . . . . . . . . . . . . . . . . . . . 4
. . . . . . . . . . . 56
100164
Improper
installation,
service or maintenance can cause property damage,
personal injury or loss of life. Installation and service
must be performed by a licensed professional HVAC
installer (or equivalent), service agency or the gas
supplier.
As with any mechanical equipment, contact with
sharp sheet metal edges can result in personal
injury. Take care while handling this equipment and
wear gloves and protective clothing.
Page 1
ML196DFEK
WARNING
adjustment,
CAUTION
alteration,
