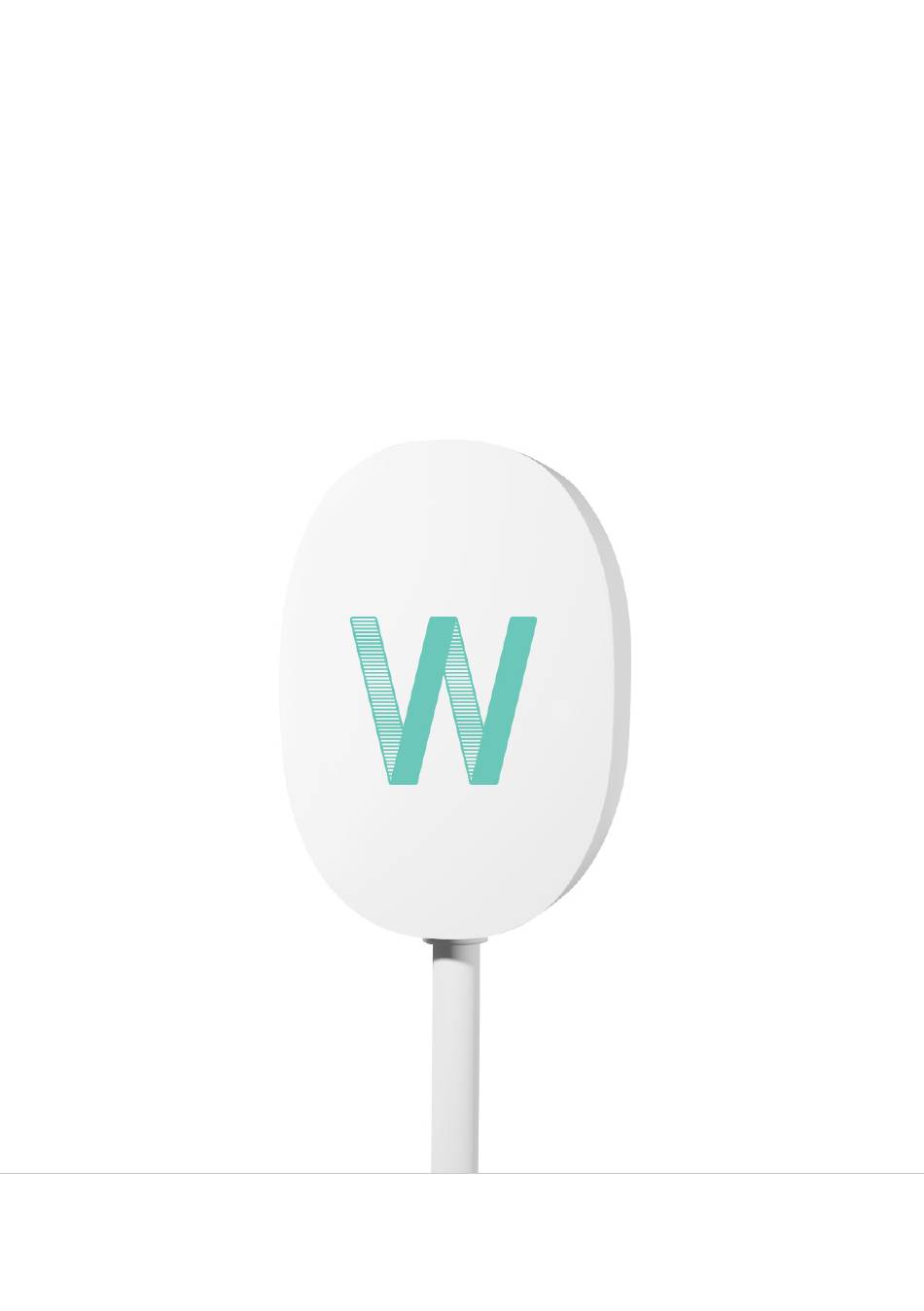

- Page 1 Airwallet PRO340 INSTALLATION GUIDE CONTACT US PHONE: (+45) 7870 9999 MAIL: CONTACT@AIRWALLET.NET...
- Page 2 Airwallet PRO340 Installation Guide...
-
Page 3: Table Of Contents
Step One Step Two Step Three Step Four III. Circuit Schematic IV. Tips and Troubleshooting The best location for the Airwallet PRO Problems and Solutions Learning More, Service and Support VI. Specifications and Safety VII. Regulatory Compliance Information Declaration of Conformity Disposal and Recycling Information... -
Page 4: Getting Started
4.2 the Airwallet PRO is compatible with both iOS and Android smartphones and tablets. When you install your Airwallet PRO ensure that it has been set up on the Airwallet Dashboard. If you have not set up the device beforehand you will not be able to test the installation when you are done. -
Page 5: Parts In The Package
Parts in the Package Airwallet PRO Serial number AWXXXXXXXXR1 Double-sided adhesive tape for mounting Cable length 90 cm. Airwallet PRO340 Installation Guide... -
Page 6: Additional Parts
Additional Parts Get Started Package Included only guaranteed when purchased directly from Airwallet Get started - Flyers m65 Installers & Technicians - Flyer Machine identifiers - Stickers No theft - Door sticker Airwallet PRO340 Installation Guide... -
Page 7: Ports On Your Airwallet Pro
Ports on Your Airwallet PRO Airwallet PRO has 12 internally ports where 8 of them has been wired out in the installation cable: Wire Internal Port Name Number Number No. 1 ACL- Power supply No. 2 ACN - Power supply No. -
Page 8: Airwallet Pro Status Lights
To reset the Airwallet PRO disconnect the power source for 15 seconds. If you want to change or delete information about the device, such as name, price, start signal or busy signal type, go to the Airwallet Dashboard and find the device under “Your Locations”. -
Page 9: The Airwallet Pro Network
The following illustration shows an Airwallet PRO connected to a commercial laundry machine. The machine supplies the Airwallet PRO with power and the Airwallet PRO can send start signals and know when the machine is busy when the user has paid. -
Page 10: Installing The Airwallet Pro
If you have a special machine type and are in doubt whether the Airwallet PRO will fit your needs do not hesitate to contact us at contact@airwallet.net To install the Airwallet PRO you need tools to gain access to the position on the machine where payment systems are installed according to the product manual. -
Page 11: Step Two
If you are in doubt, please go ahead and measure and test the terminals prior to installation. Do not try to install the Airwallet PRO on your product, if you cannot find the appropriate terminals. This can lead to short-circuiting the Airwallet PRO or the machine. -
Page 12: Step Three
NB: Is the feedback neutral and can’t be No. 5 input machine modified to line, then switch line/neutral feedback* power supply to the Airwallet PRO. (Optional) DC The DC input has to be within the No. 6 input machine 24VDC +- 2.4V... - Page 13 1. Connect the appropriate wires you want to use: a. Connect ACL and ACN from the Airwallet PRO to the neutral and line of the machine. These ports are often located near the payment ports or can be found at the machine’...
- Page 14 Start Permitted, Start Pulse, SigProg, Coin Checker, Coin Detector, or similar. c. Connect the busy signal from the Airwallet PRO to the busy signal port if you want to make the machine unavailable for purchases in the period the machine is in use. The busy...
-
Page 15: Step Four
Step Four Testing the Airwallet PRO • Open the Airwallet App and log in. If you do not have an account yet, you can create a new user by pressing ‘New user’. • When you have filled out your personal information you can go to the front page of the Airwallet App. -
Page 16: Circuit Schematic
The ‘24V In’ can be used to supply the device with 24V if AC isn’t available. The last two terminals in use are ACL and ACN. The schematic of the Airwallet PRO can be found on page 17. Airwallet PRO340... - Page 17 Circuit schematic of the Airwallet PRO: Airwallet PRO340 Installation Guide...
-
Page 18: Tips And Troubleshooting
The following recommendations can help your Airwallet PRO achieve the best wireless range and network coverage. • Place your Airwallet PRO in an open area where there are few obstructions, such as walls. • If possible we recommend placing the Airwallet Pro inside the machine cabinet. - Page 19 Airwallet PRO. 3. If a wrong feedback mode has been selected the Airwallet PRO will become available after 5 min. if ‘high in use’ is chosen.
- Page 20 3. Contact Airwallet on contact@airwallet.net 78709999. Airwallet PRO340 Installation Guide...
-
Page 21: Learning More, Service And Support
Obtaining Warranty Service • If your Airwallet PRO appears to be damaged or does not function properly, check the sections “Tips and Troubleshooting” for help and the online resources at https://airwallet.net. If your Airwallet PRO still does not function properly, contact support at contact@airwallet.net... -
Page 22: Specifications And Safety
• Length: 107 mm (4,2 inches) • Width: 73 mm (2,9 inches) • Height: 28 mm (1,1 inches) Airwallet PRO Safety Tips • The only way to completely shut off power to your Airwallet PRO is to disconnect it from the power source. Airwallet PRO340 Installation Guide... - Page 23 • Your Airwallet PRO is a high-voltage product. Do not open it for any reason, while it is connected to the power source. If your Airwallet PRO needs service, see “Learning More, Service, and Support” on page 21. • Avoid wet locations WARNING: To reduce the chance of shock or injury, do not »...
-
Page 24: Regulatory Compliance Information
We declare under our sole responsibility that the products, to which this declaration relates, conform with the Council Directives on the approximation of the laws of the EU Member States relating to the following: Directives: Radio Equipment Directive 2014/53/EU RoHS Directive 2011/65/EU Airwallet PRO340 Installation Guide... - Page 25 EN 50581:2012: Technical documentation for the assessment of electrical and electronic products with respect to the restriction of hazardous substances. Place of issue: Pakhusgården 28, 5000 Odense C, Denmark Date of issue: 13.06.2023 Name of Authorized Person: Christian Bonde Mortensen Co-Founder Signature of Authorized Person: Airwallet PRO340 Installation Guide...
-
Page 26: Disposal And Recycling Information
Disposal and Recycling Information This symbol indicates that your product must be disposed of properly according to local laws and regulations. When your product reaches its end of life, contact Airwallet or your local authorities to learn about recycling options. European Union—Disposal Information The symbol above means that according to local laws and regulations your product and/or its battery shall be disposed of separately from household waste. - Page 27 CONTACT US PHONE: (+45) 7870 9999 MAIL: CONTACT AIRWALLET.NET Airwallet PRO340 Installation Guide...
