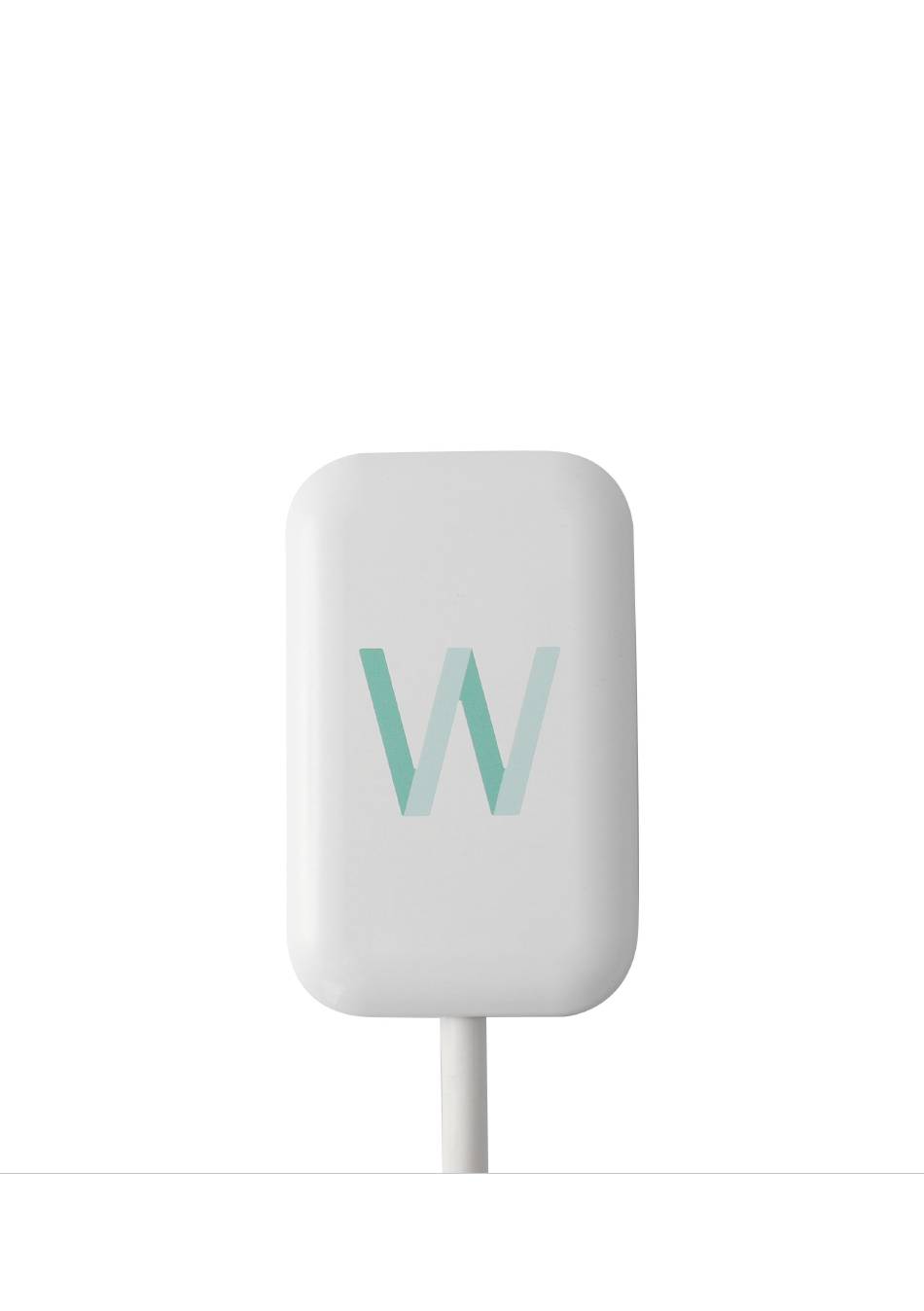

- Page 1 Airwallet PRO200 INSTALLATION GUIDE CONTACT US PHONE: (+45) 7870 9999 MAIL: KONTAKT AIRWALLET.DK...
- Page 2 Airwallet PRO200 Installation Guide...
-
Page 3: Table Of Contents
Step One Step Two Step Three Step Four III. Circuit Schematic IV. Tips and Troubleshooting The best location for the Airwallet PRO Problems and Solutions V. Learning More, Service and Support VI. S pecifications and Safety VII. R egulatory Compliance Information Declaration of Conformity... -
Page 4: Getting Started
Airwallet Dashboard. If you have not set up the device beforehand you will not be able to test the installation when you are done. To set up your Airwallet PRO locate the serial number on the back of the product. The serial number can be entered under ‘My locations’... -
Page 5: Parts In The Package
Parts in the Package Serial number Airwallet PRO Back of the box Cable length 90 cm. 230V AC power supply Airwallet PRO200 Installation Guide... -
Page 6: Additional Parts
Purchased separately Locking pin Adapter Holder 2 x adhesive foils Can be mounted with screws or adhesive foil (screws not included) Get Started Package Only included when bought directly from Airwallet News poster 5 step guide Sticker Airwallet PRO200 Installation Guide... -
Page 7: Ports On Your Airwallet Pro
Ports on Your Airwallet PRO Airwallet PRO has 10 internally ports where six of them has been wired out in the installation cable: Wire Internal Port Name Number Number No. 1 AC 1 - Power supply Black No. 2 AC 2 - Power supply Black No. -
Page 8: Airwallet Pro Status Lights
• As standard, the Airwallet PRO is wired out with a no-voltage relay normally open (NO), to send start signals to the machine. If the installation requires a normally closed (NC) relay the Airwallet PRO can be opened and the wire can be moved from the NO terminal to the NC terminal. -
Page 9: The Airwallet Pro Network
The following illustration shows an Airwallet PRO connected to a commercial laundry machine. The machine supplies the Airwallet PRO with power and the Airwallet PRO can send start signals and measure feedback when the user has paid. The Airwallet PRO is connected to the Airwallet Dashboard that stores information about all devices in the Airwallet network. -
Page 10: Installing The Airwallet Pro
Airwallet PRO will fit your needs do not hesitate to contact us at kontakt@airwallet.dk. • To install the Airwallet PRO you need tools to gain access to the position on the machine where payment systems are installed according to the product manual. -
Page 11: Step Two
• Carefully read the specifications of the available payment wiring terminals • Check if the product is compatible with the Airwallet PRO (The Airwallet terminal specification table can be found on page 12) • If the product is compatible with the Airwallet PRO the installation can be continued. -
Page 12: Step Three
Not wired Input GND For 24V DC circuit as GND reference. Output start Not wired For low start signal. signal - NC *Feedback options: High in use, low in use, end of cycle signal. Options are chosen on the Airwallet Dashboard. - Page 13 1. First, connect the appropriate wires you want to use: a. Connect AC 1 and AC 2 from the Airwallet PRO to the null and phase of the machine. These ports are often located near the payment ports or can be found at the machine’ s power supply.
- Page 14 2. When you have connected the Airwallet PRO to the appropriate terminals you can power up the installation. If the device does not appear in the Airwallet App check if the device has been created on the Airwallet Dashboard. Airwallet PRO200...
- Page 15 Mobile payment sticker The “MOBILE PAYMENT” sticker is intended to be pasted on the machine on which the Airwallet PRO is installed. In the white “name” field, handwrite the name you have called machine on the dashboard Airwallet PRO200...
-
Page 16: Step Four
Step Four Testing the Airwallet PRO • Open the Airwallet App and login. If you do not have an account yet, you can create a new user by pressing ‘Create new user’. • When you have filled out your personal information and credit card details you can go to the front page of the Airwallet App. -
Page 17: Circuit Schematic
They supply the power to the Airwallet PRO. The AC1 must the of the same polarity as the AC In, if the Airwallet PRO is installed with feedback. The AC2 must be of opposite polarity of AC1 and AC In. -
Page 18: Tips And Troubleshooting
The following recommendations can help your Airwallet PRO achieve the best wireless range and network coverage. • Place your Airwallet PRO in an open area where there are few obstructions, such as walls. • Avoid placing your Airwallet PRO inside the machine cabinet or close to any metallic surfaces. -
Page 19: Problems And Solutions
Airwallet Dashboard?: https://admin.airwallet.dk 2. If the installation is AC is the phase and null installed correctly in AC1 and AC2? The Airwallet PRO will not register the feedback signal if the AC wires have been switched. AC1 (Wire no. 1) must be the same polarity as the AC In feedback signal. - Page 20 C. The machine does not start when I have paid: 1. Has wire no. 3 been supplied with the desired start signal? 2. Has the correct start signal been selected on the Airwallet Dashboard?: https://admin.airwallet.dk 3. Did the transaction go through? Check the activity menu page 4.
-
Page 21: Learning More, Service And Support
• For the latest information about Airwallet PRO and version of this manual go to https://airwallet.net/support Obtaining Warranty Service • If your Airwallet PRO appears to be damaged or does not function properly, check the sections “Tips and Troubleshooting” for help and the online resources at https://airwallet.net. If your Airwallet PRO still does not function properly, contact support at https://airwallet.net/support. -
Page 22: Specifications And Safety
• Start Signal: Max. 220 VDC; Max. 250 VAC; Max. 60W • AC Feedback Signal: 100-240 VAC • DC feedback Signal: 24VDC +- 2.4V • Feedback mode can be set up on the Airwallet Dashboard Environmental Specifications • Operation Temperature: 0° C to 35° C (32° F to 95° F) •... - Page 23 Airwallet PRO Safety Tips • The only way to completely shut off power to your Airwallet PRO is to disconnect it from the power source. • Your Airwallet PRO is a high-voltage product. Do not open it for any reason, while it is connected to the power source. If your Airwallet PRO needs service, see “Learning More, Service, and...
- Page 24 • The product should be protected against short circuit with and external protection on building installation. The Airwallet PRO is only protected against overload, but it does not provide short-circuit backup protection. External protection on building installation should be used.
-
Page 25: Regulatory Compliance Information
VII. Regulatory Compliance Information Declaration of Conformity Manufacturer: Airwallet ApS Address: Klostervej 27B 3. Floor left. 5000 Odense, Denmark Product description: RF operated controller Product name: Airwallet PRO Declaration: We declare under our sole responsibility that the products, to which this declaration relates, conform with the Council Directives... - Page 26 Safety 2001/95/EU: EN 60950-1:2006 + EN 60950-1:2006 / A12:2011 Information technology equipment - Safety - Part 1: General requirements Place of issue: Airwallet, Cortex Park 26, Odense 5230, Denmark Date of issue: 02.01.2020 Name of Authorized Person: Christian Bonde Mortensen Co-Founder Signature of Authorized Person:...
-
Page 27: Disposal And Recycling Information
Disposal and Recycling Information This symbol indicates that your product must be disposed of properly according to local laws and regulations. When your product reaches its end of life, contact Airwallet or your local authorities to learn about recycling options. European Union—Disposal Information The symbol above means that according to local laws and regulations your product and/or its battery shall be disposed of separately from household waste. - Page 28 CONTACT US PHONE: (+45) 7870 9999 MAIL: KONTAKT AIRWALLET.DK Airwallet PRO200 Installation Guide...
