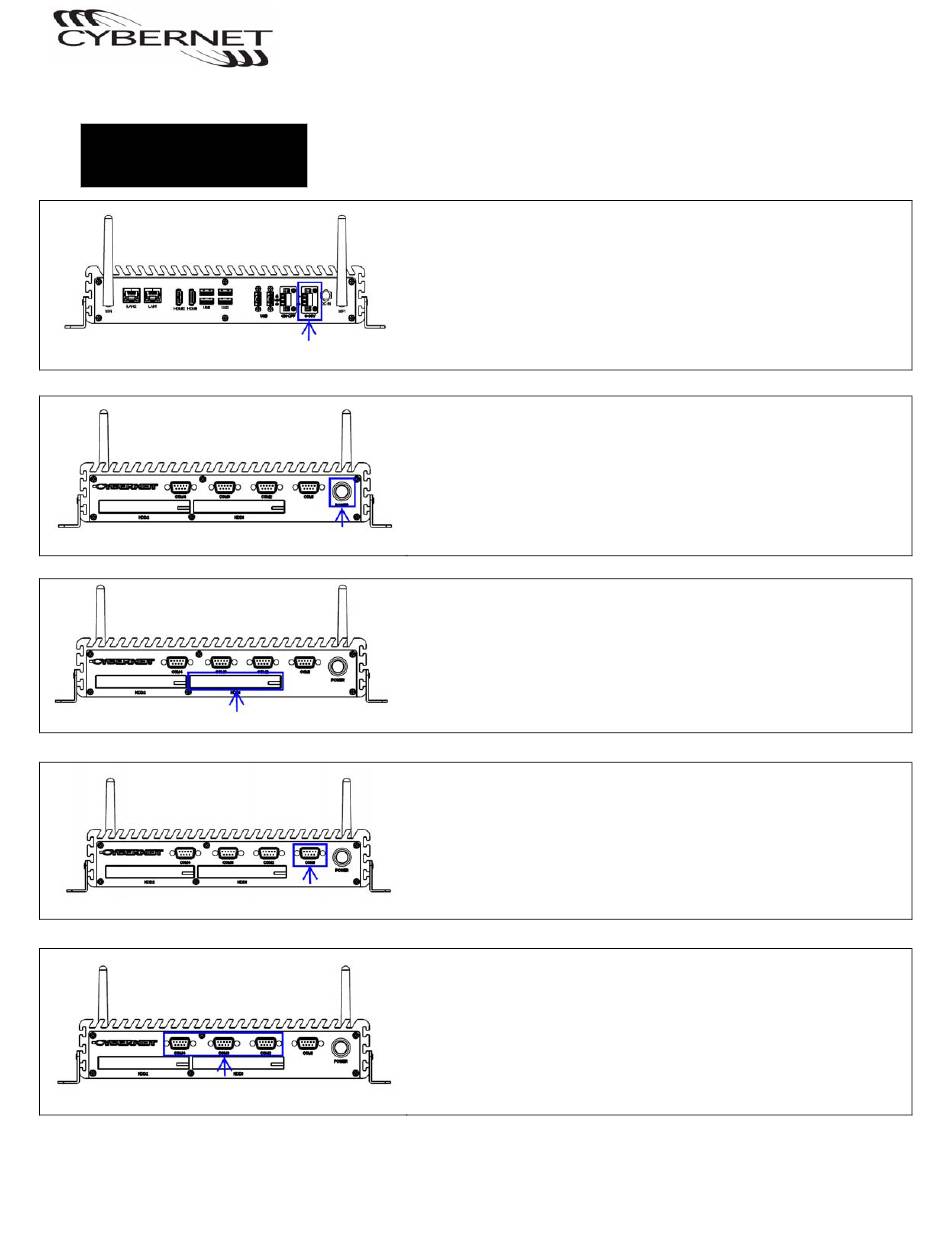

I/O Ports
The IPC-R2ix series offers 9 to 36 VDC power input using
standard notebook DC Jack Ø 5.5mm x 2.5mm and 3 PIN Pitch
=3.81mm terminal block connector from the external PSU.
There is a power button to switch on the System. The same
button also switches off the System when pressed for more than
4 seconds.There is a power LED around this power button to
light up a solid blue when the System is running. This LED will
blink when in Sleep mode.
The IPC-R2ix is designed with easy access 2.5 inch SATAII
HDD bays, which can be locked. The picture on the left
indicates the HDD1 bay. The HDD2 bay, with operating system
support, allows for hot swapping the hard drive, as long as data
is not being written to or read from the drive.
COM1 support RS-232/422/485
In the left picture from our Right to Left, we have COM2,
COM3, COM4 support RS-232 only.
