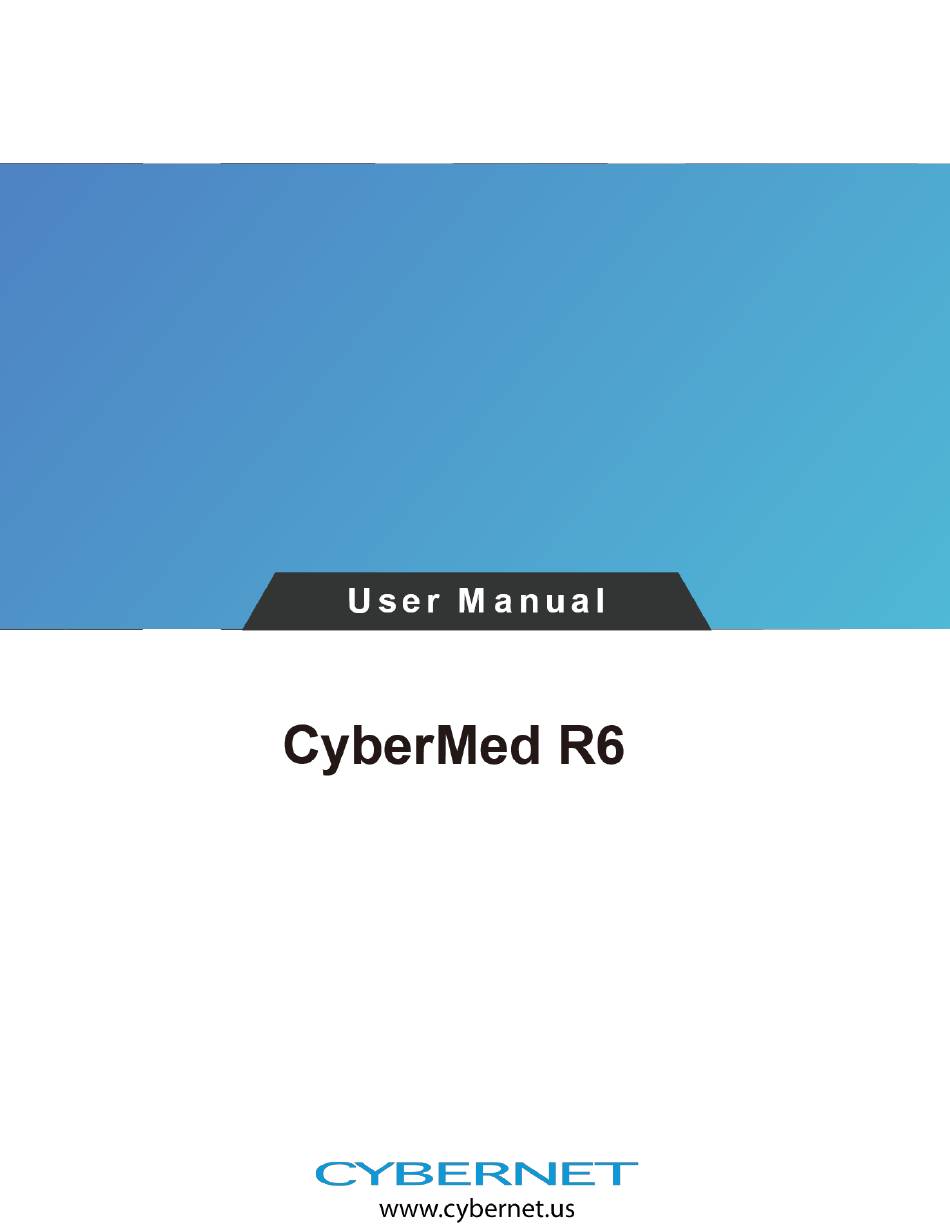

Cybernet CyberMed R Series User Manual

Slim medical pc

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CyberMed R Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Cybernet CyberMed R Series

  • Page 2: Declaration Of Conformity

    CyberMed-R6 User Manual Declaration of Conformity This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3: Safety Instructions

    Safety Instructions Always read the safety instructions carefully. Keep this equipment away from humidity. Lay this equipment on a reliable flat surface before setting it up. Confirm the voltage of the power source and adjust accordingly to 110/220V before connecting the equipment to the power inlet. Place the power cord in such a way that it cannot be stepped on.
  • Page 4: Weee Statement

    WEEE Statement (Waste Electrical and Electronic Equipment) The WEEE directive places an obligation on EU-based manufacturers, distributors, retailers and importers to take-back electronics products at the end of their useful life. A sister Directive, ROHS (Restriction of Hazardous Substances) compliments the WEEE Directive by banning the presence of specific hazardous substances in the products at the design phase.
  • Page 5: Table Of Contents

    CyberMed-R6 Back I/O View ................... 11 Power Management ..................... 12 Waking the System Up .................... 14 CyberMed-R6 BIOS introduction ................15 Appendices ........................16 A - Cybernet’s Recycling Program ................. 17 B - Getting Help......................17 DOC ID: 16001100 Page | 4...
  • Page 6: Introduction

    Caution: Warning, electricity Protective earth (ground) Operating Instructions Direct current Ready to use Alternating current Introduction Congratulations on your purchase of the CyberMed-R6. We are confident the CyberMed-R Series is the premier Slim Medical PC line on the market. With their sleek design and small form factor, these units can be quickly deployed anywhere they are needed and their easy-to-use, feature-packed interfaces offer an unparalelled user experience.
  • Page 7: Cybermed R6 Specifications

    CyberMed R6 Specifications Supports Intel Coffee Lake 8 & 9 Generation Processor, Socket LGA 1151 1 x DDR4 SO-DIMM sockets, up to 32GB combined Memory Supports memory data transfer rates of 2133MHz/2400 MHz for DDR4, un-buffered non-ECC DDR4 SO-DIMMs Serial ATA controller facilitates high-speed transfers up to 6Gbps Maximum 2 x 2.5”...
  • Page 8: Cybermed-R6 Overview

    RoHS 2.0 Energy Star 8.0 CyberMed-R6 Overview CyberMed-R6 Dimension DOC ID: 16001100 Page | 7...
  • Page 9: Cybermed-R6 Bottom View

    CyberMed-R6 Bottom View DOC ID: 16001100 Page | 8...
  • Page 10: Cybermed-R6 Front I/O View

    CyberMed-R6 Front I/O View Item Description Power Main power ON/OFF button. COM1 RS232/RS422/RS485 is selectable in the BIOS menu. COM2 5V/12V is selectable in the BIOS menu (100mA max). COM3 Supports RS232 only. COM4 DOC ID: 16001100 Page | 9...
  • Page 11: Rs232 Pinouts

    RS232 Pinouts Pin No. Definition Pin No. Definition NDCD- NDSR- NSIN NRTS- NSOUT NCTS- NDTR- +5V / +12V RS422 Pinouts Pin No. Definition Pin No. Definition TX(B) TX(A) RX(A) RX(B) +5V / +12V RS485 Pinouts Pin No. Definition Pin No. Definition +5V / +12V DOC ID: 16001100...
  • Page 12: Cybermed-R6 Back I/O View

    CyberMed-R6 Back I/O View Item Description DC-IN 12V / 19V / 24V DC input using 5.5mm x 2.5mm DC jack. 2 x USB2.0 interfaces supported with 480Mbit/s transfer rate / USB2.0 900mA output current and compatible with USB1.1. 2 x USB 3.0 interfaces supported with 5Gbit/s transfer rate / USB3.0 900mA output current and compatible with USB2.0 and USB1.1.
  • Page 13: Power Management

    Power Management Taking advantage of the power management options available on Windows OS can save you significant amounts of electricity and also provide environmental benefits.For better energy efficiency, turn off your display or set your PC to sleep mode after prolonged periods of user inactivity.
  • Page 14 For quick and convenient management of system power, the Shut Down Menu provides options for Sleep (S3) and Shut Down (S5). Power Management through ENERGY STAR qualified monitors (Not supplied with the CyberMed-R6) The power management feature allows the CyberMed-R6 to initiate a low-power or “Sleep”...
  • Page 15: Waking The System Up

    Waking the System Up The CyberMed-R6 can wake up from power saving mode in response to a command from any of the following: • the power button, • the network (Wake on LAN) • the mouse • the keyboard DOC ID: 16001100 Page | 14...
  • Page 16: Cybermed-R6 Bios Introduction

    CyberMed-R6 BIOS introduction The AMI BIOS provides a Setup utility program for specifying system configurations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the AMI BIOS is immediately activated. Pressing the <F2> or <DEL> key allows you to enter the Setup utility.
  • Page 17: Appendices

    Appendices DOC ID: 16001100 Page | 16...
  • Page 18: A - Cybernet's Recycling Program

    A - Cybernet’s Recycling Program B - Getting Help Corporate Headquarters UK & European Inquiries Cybernet Manufacturing Cybernet Europe 5 Holland #6, Groveland Business Centre Irvine, California 92618 Boundary Way Free: (888) 834-4577 Hemel Hempstead, HP2 7TE Phone: (949) 600-8000...
