IFYIL GT 15 Deluxe User Manual

Pellet boiler
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GT 25
GT 25
GT 15
Deluxe
Deluxe
Deluxe
Pellet Boiler
USERGUIDE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GT 15 Deluxe and is the answer not in the manual?

Questions and answers

Related Manuals for IFYIL GT 15 Deluxe

Summary of Contents for IFYIL GT 15 Deluxe

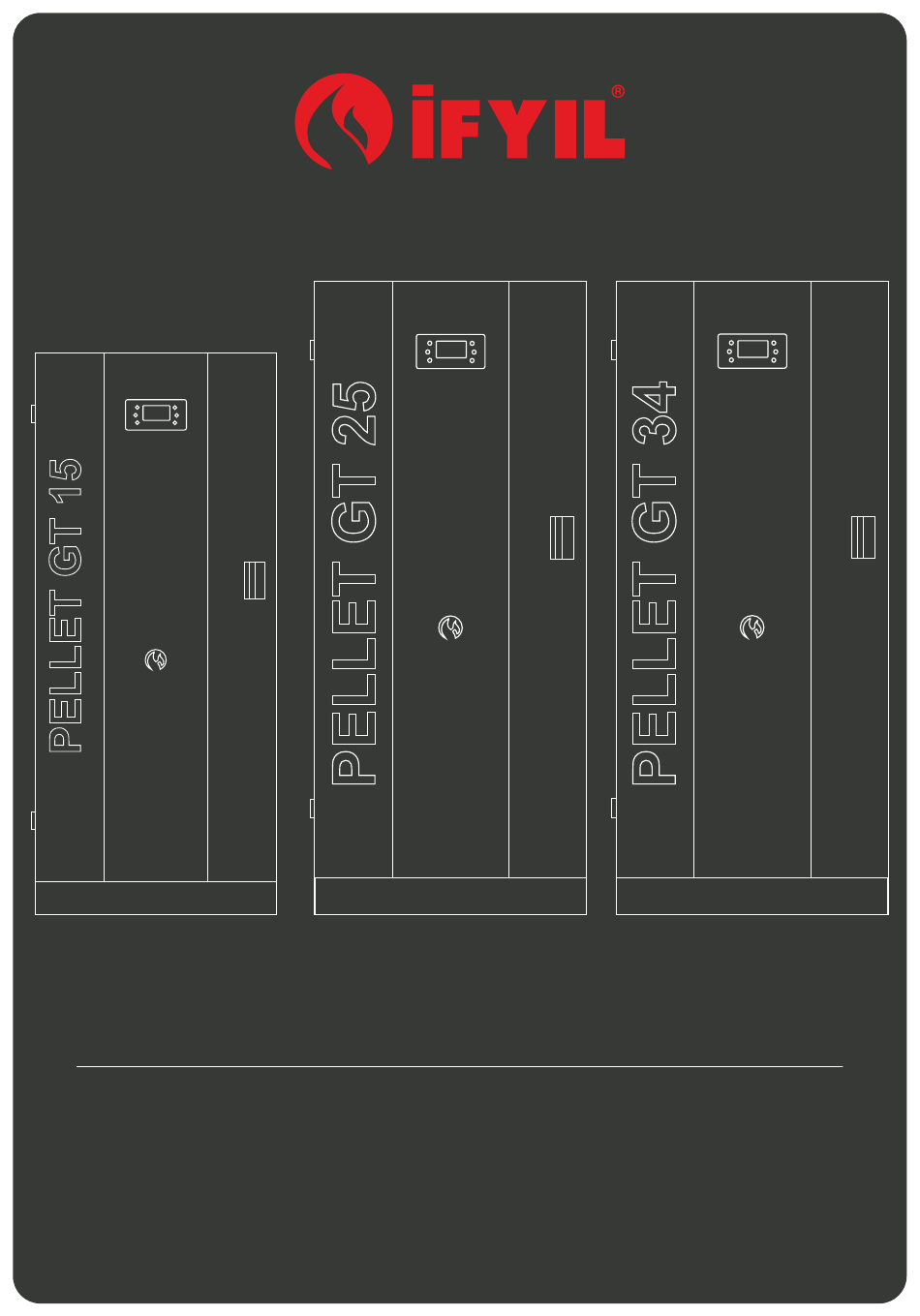

  • Page 1 GT 25 GT 25 GT 15 Deluxe Deluxe Deluxe Pellet Boiler USERGUIDE...
  • Page 2 İFYIL TERMO İKLİMLENDİRME SAN. ve TİC. LTD. ŞTİ. CONTACT INFO Web Site : www.ifyil.com.tr Phone: +90 (850) 346 0 362 Fax: +90 (362) 266 94 43 E-mail: info@ifyil.com.tr Adress: Kavak Organize Sanayi Bölgesi 3. Cad. No.11 Kavak/Samsun/TÜRKİYE...
  • Page 3 1-2 Operating Warnings 2- SAFETY DEVICE 3- FUEL SPECIFICATIONS 4- TECHNICAL SPECIFICATIONS 5- MAIN PARTS AND DIAMENTIONS 5-1 GT 15 Deluxe Diamentions 5-2 GT 25-34 Deluxe Diamentions 5-3 GT 15-25-34 Deluxe Parts 6- INSTALLATION 6-1 Operating Environment 6-2 Electrical Connections 6-3 4.3.
  • Page 4 6-6 Smoke Pipe Instructioons 6-7 Suitable Shapes Of Chimney 7- MOTHERBOARD CONNECTION SCHEMA 8- CONTROL PANEL 8-1 Information Menu 8-2 User Menu Screen -1 8-3 Chrono Setup Menu 8-4 User Menu Screen-2 8-5 Error Codes 9- OPERATING 10- FUEL CALIBRATION 11- PUMP WARNING LAMP 12- MAINTENANCE and CLEANIG 13- PROBLEMS, CAUSES and SOLUTIONS...
  • Page 5 INTRODUCTION Dear Friend of İFYIL; İFYIL TERMO İKLİMLENDİRME SAN. Ve TİC. LTD. ŞTİ. we manufacture the most efficient hydro pellet boiler with utmost care for our distinguished customers. So, please read this userguide carefully before starting to use our boiler and keep it as a reference in any case.

  • Page 6: Important Notice

    • The product should be installed in accordance with the legislation of the country in which it will be used and the necessary safety precautions should be taken. Otherwise IFYIL will not accept any responsibility. • This is a pellet boiler, so, please only use wood pellet as fuel.

  • Page 7: Operating Warnings

    • Check the smoke outlet channels periodically. • Frost protection measures must be taken. (Antifreeze) • To prevent freezing, the boiler room temperature should be kept above +10 oC. • The product should only be used as intended. Different uses cause hazards.
  • Page 8 • Our company does not accept any responsibility for problems due to installation of the boiler in unsuitable places. • If using room thermostat, it should be placed at least 1,5 m from the floor. It should not be placed where the temperature changes continuously and heat loss is observed.

  • Page 9: Safety Device

    Therefore, necessary precautions should be taken against lime. (Lime remover chemical) Customers not obeying the above requirements and schemas cannot claim any right for any problem. In any case, contact your dealer or IFYIL. 2- SAFETY DEVICE • On - Off Swich • Closed expansion tank •...

  • Page 10: Fuel Specifications

    3- FUEL SPECIFICATIONS Wood pellets are manufactured by hot-extruding compressed sawdust which is produced during the working of natural dried wood. The compactness of the material comes from the lignin which is contained in the wood itself, and allows the production of pellets without the use of glues or binders.
  • Page 11 0,002 In standby mode Tel. +90 850 346 0 362 Manufacturer: İFYIL TERMO İKLİMLENDİRME SAN. TİC. LTD. ŞTİ. www.ifyil.com.tr Kavak OSB 3. Cad. No: 11 Kavak/Samsun/TURKEY info@ifyil.com.tr ( ** ) Tank volume = 20 x Pr with Prindicated in kW *** ) For the preferred fuel Pn equals Pr (****) PM = par�culate ma�er, OGC = organic gaseous compounds, CO = carbon monoxide, NOX = nitrogen oxides...
  • Page 12 0,002 In standby mode Tel. +90 850 346 0 362 Manufacturer: İFYIL TERMO İKLİMLENDİRME SAN. TİC. LTD. ŞTİ. www.ifyil.com.tr Kavak OSB 3. Cad. No: 11 Kavak/Samsun/TURKEY info@ifyil.com.tr ( ** ) Tank volume = 20 x Pr with Prindicated in kW *** ) For the preferred fuel Pn equals Pr (****) PM = par�culate ma�er, OGC = organic gaseous compounds, CO = carbon monoxide, NOX = nitrogen oxides...
  • Page 13 Measured Values Technical Specifications GT 15 GT 25 GT 34 Deluxe Deluxe Deluxe 2,4-7,1 Fuel Consumption kg/h 1,05-3,5 1,7-5,7 Maximum Permissible Operating Minimum Maximum Operating Pressure Test Pressure Boiler Water Volume Recommended Flue pipe draft 12 + 2 Fuel Tank Capacity kg-lt 135-230 135-230...
  • Page 14 5- MAIN PARTS AND DIAMENTIONS 5-1 GT 15 Deluxe Diamentions...
  • Page 15 5-2 GT 25-34 Deluxe Diamentions...
  • Page 16 5-3 GT 15 - GT 25 - GT34 Deluxe Parts DEFINITIONS Front Cover Combustion Chamber Cover Manometer Top Cover Turbulator Rods Pelet tank Covers Primary combustion air inlet (ø60 mm) Pump Service Intervention Cover On/Off Hot Water Outler Mainboard Cover Heat Exchanger Connection Chimney Outlet (ø100 mm)

  • Page 17: Installation

    6- INSTALLATION 6-1 Operating Environment • If the boiler is placed on a flammable floor, appropriate insulation measures must be taken. • If the boiler is placed close to the flammable walls, the wall must be insulated. • The place where the device is to be placed should bear the weight of your device and ensure that the static conditions are appropriate.

  • Page 18: Electrical Connections

    6-2 Electrical Connections First insert the power cable into the back of the boiler, then insert the cable outlet. Opening the back of the boiler on / off switch to turn on O : Close your boiler, bringing the open position | : Open A voltage regulator using is required in areas O : Kapalı...
  • Page 19 Plumbing Connections * Example schema - 1 F İ * Example schema - 2 F İ...
  • Page 20 * Example schema - 3 F İ * Example schema - 4 F İ...

  • Page 22: Heating Circulation Pump

    6-3-2 Anti Condensation Valve Connection Schema Anti condensate valve; By automatically adjusting the temperature of the water entering the boiler to the calibration value (55 C), it prevents the condensation of water vapor in the smoke. Anti condensate valve is a system in which the boiler is circulated to the outlet water to bring it to the appropriate temperature.
  • Page 23 6-3-4 Gate Valve Anticondens should be applied to prevent the heating circulating pump from being damaged when the valve is closed. 6-3-5 Three Way Mixing Valve The mixing valve is a mixing valve that brings the hot water from the heating system to the desired temperature by mixing it with the cooling water in the heating system.
  • Page 24 Ways of avoiding them; • The chimney should be cleaned at least 2 times per year, depending on the fuel quality. • Correct and appropriate chimney selection should be made. • Ensuring that the sealing and smoke in the chimney pipe and must be made in isolation.

  • Page 25: Suitable Shapes Of Chimney

    • The minimum safety opening surface sections should be 15%. Slope in the horizontal section of the pipe should be 3-5%. (3-5 cm per meter). The horizantal chimney's duct should not be longer than 2 m. • The boiler chimney pipe inner diameter is 100 mm. •...
  • Page 26 Figure 5.3 Suitable chimney shapes Figure 5.4 Improper chimney shapes...
  • Page 27 HOUSES AND OFFICES NOT OBEYİNG THE ABOVE MENTIONED STANDARDS ARE POTENTIAL FOR FIRE AT ANYTIME AND CARBON MONOXIDE (CO) GAS LEAKAGE. PLEASE FOLLOW THE ABOVE MENTIONED INSTRUCTİONS! BY SO, CLIENT ACCEPTS IN ADVANCE THAT IN SUCH CASES MANUFACTURER DOESN’T HAVE ANY RESPONSIBILTIES CLIENT NOT FULFILLING ABOVE MENTIONED REQUIREMENTS IN SCHEMAS CANNOT CLAIM ANY RIGHT OR COMPENSATION.
  • Page 28 7- CONNECTION SCHEMAS...

  • Page 29: Control Panel

    In Plus models; The bridge located on the motherboard (on inputs 24-25 (MB100: IN 5 / NG01: IN 3)) can be removed and the room thermostat can be connected instead. (In Standard models, room thermostat cannot be connected.). 8- CONTROL PANEL Crona active Date and Clock Mon 14:26...

  • Page 30: Information Menu

    FUNCTION Exit the menu / Previous menu To switch the stove on or off (hold it for 3 seconds), to reset the fault (hold it down for 3 seconds) Pressing 1 times opens the User menu 1 screen, when pressed for 3 seconds, User menu 2 is opened, used to confirm the entered values.
  • Page 31 8-2 User Menu Display -1 Combustion This menu allows you to modify the combustion power of the system. It can be set in modality automatic or manual: in the first case, the system will choose the combustion power; in the second case, the user selects the power.
  • Page 32 Method Allows the selection of the desired method or disables all programming. Disable • Use the P3 button to enter the method menu in the timer Daily menu. Weekly • Select the desired method. (Daily, Weekly or Weekend) Weekend • With the P2 button, the timer method can be activated / deactivated.
  • Page 33 Summer-Winter This Menu allows you to modify the hydraulic plant functioning depending on the season. Contrast It allows you to adjust the screen contrast Minimum Brightness It allows you to adjust the screen brightness when not used Acoustic Alarm Menu that allows you to enable/disable the acoustic alarm Menu for the access to data for the authorized technical service.
  • Page 34 8.4 Error Codes System Description Code Phase Boiler water temperature too high error Blok Er01 (This alarm is activated when the system is Prosestat error Blok Er02 Extinguishing at low flue temperature Blok Er03 High water temperature extinguishing Blok Er04 High chimney temperature extinguishing Blok Er05...

  • Page 35: First Fire

    9- OPERATING First Fire • The pellets feeder, not provide the required amount of pellets in the tank is not full every first firing. So the pellets tank, make sure that the pellets fall into the pellets feeder. • If not successful after several test burn, make sure the correct positioning of the combustion pot.
  • Page 36 Press the "Set” button. Go to Loading menu and Set the status from “off" to "on" . The pellet feed will then be activated and the pellet will feed continuously for 3 minutes. At the end of this period, perform the loading again.
  • Page 37 GT 15 Plus GT 25 Deluxe GT 34 Deluxe Gr/10dk Gr/10dk Gr/10dk 1000 1000 1050 1050 1000 1100 1100 1050 1150 1150 1150 1200 1200 1250 1250 1250 1300 1300 1300 1400 1350 1350 1500 1400 1400 1550 1450 1450 1650 10,8 1500...
  • Page 38 11- PUMP WARNING LAMP If the product is equipped with a Wilo pump with frequency converter: DETAILED LED COLOUR MEAN DESCRIPTION The pump is operating Normal Operation normally. Solid Green Light Pump will try to take the air in the system for 10 minutes.

  • Page 39: Maintenance And Cleaning

    12- MAINTENANCE and CLEANING All cleaning of your stove, while your stove is not lit (when cold case) and make the electrical connection closed position. When cleaning your stove; Do not use Flammable, explosive, flammable etc chemicals that may pose a hazard. 5.
  • Page 40 Combustion Pot Cleaning; • When cleaning the combustion Pot, open the front cover (3) and the combustion chamber cover (4). • Move the grill table (5) back and forth. • Visually inspect the combustion crucible for slag build-up. Remove any slag. When cleaning the crucible, make sure it is completely cold. Ashtray Cleaning;...
  • Page 41 b.1. Time Switchı; The time switch controls the switching on and off of the circuit at predetermined intervals in increments of 2 hours for 7 days or 15 minutes for 24 hours. The time switch is shown in figure 11.2. b.2.

  • Page 42: Electrical Circuit Diagram

    b.3. Electrical Circuit Diagram Figure 11.3: Electrical Circuit Diagram The Electrical Circuit Diagram Elements are numbered in Figure 11.3. ( 1 )..Time Roles ( 2 )...Motherboard ( 3 )..Motor ( 4 )..Condenser Smoke Box Cleaning; • Unscrew the cleaning cover connection screws (7). Remove ashes from the smoke pipes.
  • Page 43 Cleaning \ Period 1 Day 2 Day 1 Month Turbulator – Smoke Pipe Combustion Pot Ashtray Smoke Box Table: Cleaning Periods Cleaning periods may vary depending on pellet quality. • After 200 hours of operation, please call the technical service for stove maintenance. •...
  • Page 44 AUTO CLEANING SYSTEM WARNINGS • The switch did not fully pass the position while the cleaning system was running and there was a power outage at that moment, the cleaning system may not be stable. In order to bring balance, the power failure alarm that appears on the screen is verified and the system menu is entered, the AUX 2 output (MB100 motherboard) and V2 output (NG01 motherboard) in the Test Outputs tab are activated with the "ON"...

  • Page 45: Problems, Causes And Solutions

    13- PROBLEMS, CAUSES and SOLUTIONS PROBLEMS POSSIBLE CAUSES SOLUTIONS Make sure that the product is plugged in and the on/off button is in the Boiler does not No power supply on position. start Blown fuse Check the fuse Combustion settings Check the parameters.
  • Page 46 Start-up isn’t completed Rerun the Start-up Power cut Wait the otomatic start The boiler runs a few minutes and then the switches Smoke of the duct Clean the smoke duct. Temperature sensor Call technical service problem Faulty of fan motor The smoke Call technical service Mainboard faulty...
  • Page 47 The ignition cycle is not Re-run the ignition cycle completed. (turn off). Boiler is working a Check and call technical Temperature sensors are few minutes and service for replace sensors defective or damaged. then off as necessary. Clean smoke duct. Smoke duct is clogged Check that it is edible by the boiler room constantly...

  • Page 48: Significiant Instructions For Effective Using

    Service Calls For technical service calls, please visit www.ifyil.com.tr Any right cannot be claimed due to the changes or modifications or wrong use of spare parts. IFYIL original spare parts must be used for any permitted change of spare part.

  • Page 49: Certificate Of Warranty

    Kavak OSB Kavak/ Production Date: SAMSUN/TÜRKİYE Warranty Time: Two Years +90 (362) 266 94 43 Max Reperation Time: Twenty Working Days Phone: Fax: +90 (362) 266 94 43 E-Mail: info@ifyil.com.tr Authorized Signature&Stamp IMPORTER / DEALER CUSTOMER Name: Name Surname: Address: Address: Phone:...

  • Page 50: Warranty Conditions

    WARRANTY CONDITIONS The warranty period starts from the delivery date of the product and is two (2) years. The product is fully in warranty, except for the glass and cast parts. In case the product is found to be defective, Article 11 of the Law No. 6502 on Consumer Protection;...
  • Page 51 Product will out of Warranty when installation/any change made by non authorised personnel or services. Warranty does not covers any damages due to set up ifyil pellet stoves in open air areas, wet places, humid places or any place which directly related to all these places.
  • Page 52 “Time to heat up most efficiently” WE LOVE WORLD FOUR PELLET POWERFUL SYSTEM ADVANTAGES CENTRAL HEATING STYLISH DESING HOT WATER MODERN HEATING STOVE&FIREPLACE SOLUTIONS... www. .com.tr...
