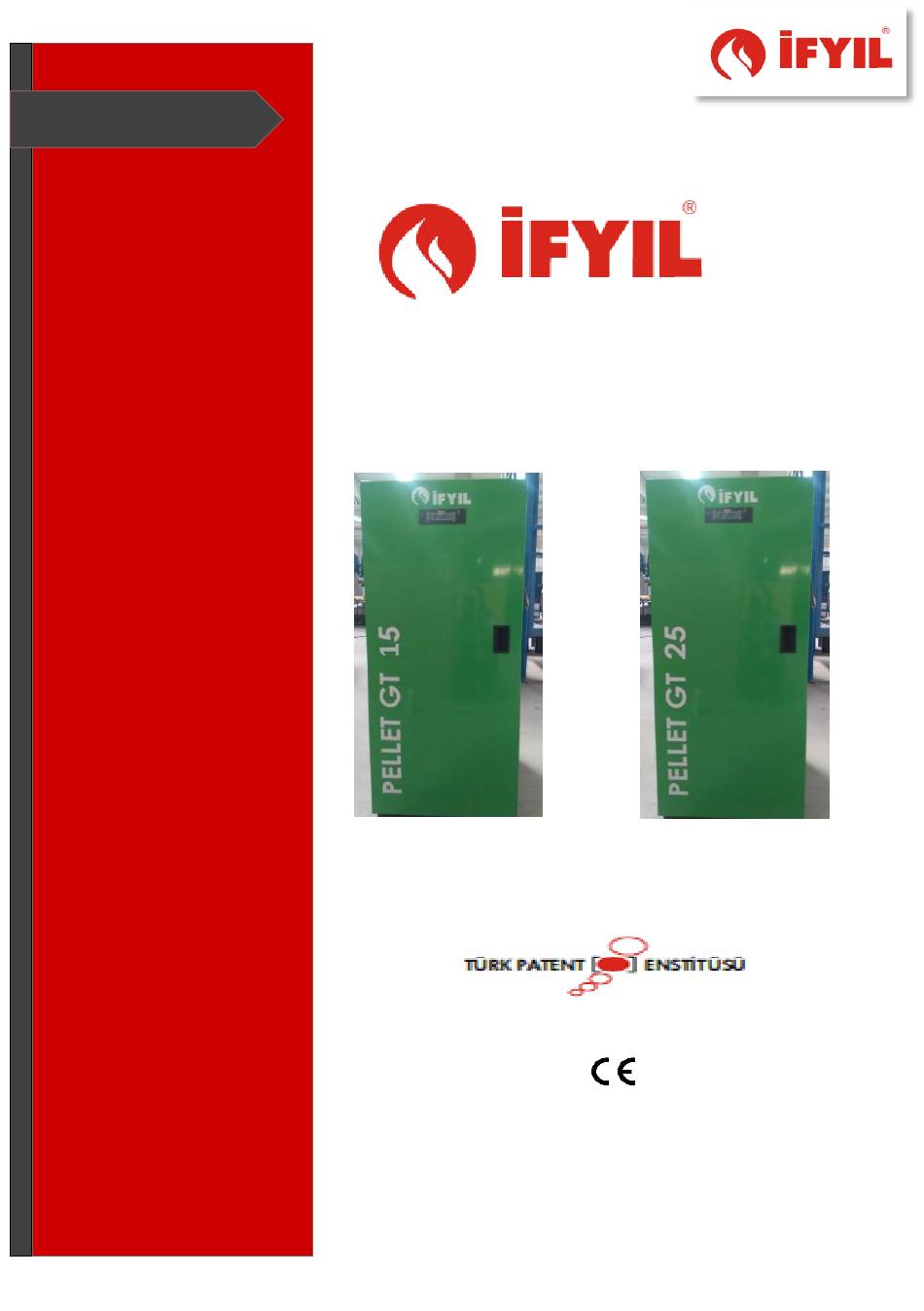

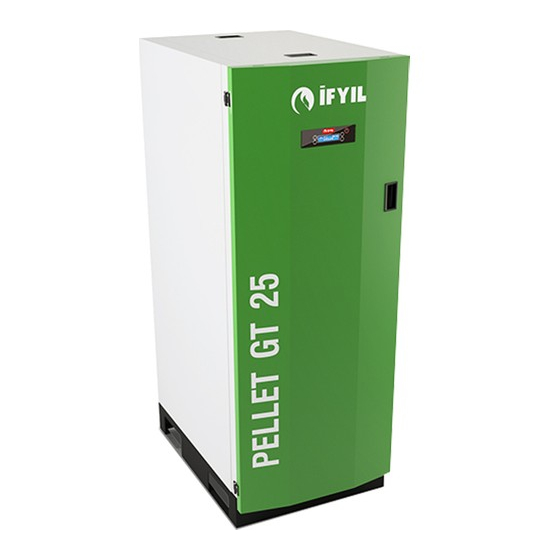

- Page 1 2017 PELLET BOILER USER GUIDE GT-15 GT-25...
-
Page 2: Table Of Contents
INDEX IMPORTANT NOTICE ..................4 GENERAL SAFETY WARNINGS ..............4 1.2 OPERATING INSTRUCTIONS ................7 TECHNICAL SPECIFICATIONS ................9 PELLETS ....................10 INSTALLATION AND ASSEMBLY ............... 11 Safe distance ................... 11 PLUMBING CONNECTION ................ 12 ELECTRIC CONNECTION ................13 BOILER PIPE INSTALLATION ................14 BOILER AND CHIMNEY WITH INSTRUCTIONS .......... - Page 3 5.3.1 Temperature/ Power fine setting ..........20 5.3.2 ECO Mode ..................20 ADVANCED FUNCTIONS ................20 5.4.1 Warnings ..................21 5.4.2 Water temperature menu .............. 21 5.4.3 Date menu ..................22 5.4.4 Sleep function ................. 22 5.4.5 Info Menu ..................22 5.4.6 Settings ....................
- Page 4 INTRODUCTION Dear Friend of İFYIL; İFYIL TERMO İKLİMLENDİRME TİC. SAN. Ve LTD. ŞTİ. we manufacture the most efficient hydro wood boilers with utmost care for our distinguished customers. So please read this userguide carefully before starting to use our boiler and keep it as a reference in any case.
-
Page 5: Important Notice
1. IMPORTANT NOTICE • This user guide has been prepared for products GT 15 and GT 25. 1.1 GENERAL SAFETY WARNINGS • Please, cerafully read a manuel to get best yield from the pellet boiler • This is a pellet boiler, so, please only use wood pellet as fuel. •... - Page 6 o Combustion pot holes obstructed or combustion pot deformed, due to lack of maintenance and conditions which can cause delayed ignitions, generating an anomalous production of unburned gases. o Insufficient combustion air due to a reduced or clogged air inlet duct. o Use of smoke ducts nonconforming to regulatory installation requirements, failing to guarantee an adequate draught.
- Page 7 o The accumulation of unburned pellets ensuing a failed ignition must be removed before repeating ignition. Also check that they are fed correctly and that the combustion air inlet/smoke outlet are regular. • If ignition fails repeatedly, immediately suspend use of the product and contact a qualified technician to check its operation.
-
Page 8: Operating Instructions
1.2 OPERATING INSTRUCTIONS • This device should be installed in accordance with the related regulation and EU standards. • Pellet boiler has been produced in accordance with TS EN 303-5 standards. • The pump flow should be in the direction of the return line. •... - Page 9 • Installation should definitely fill and drain valve. • Safety valves must be in the water outlet. • Boiler lit (off) the water pressure should be in the range of 1-1,5 bar. Otherwise drain / refill valve should be checked. •...
-
Page 10: Technical Specifications
2. TECHNICAL SPECIFICATIONS • This devices should be installed in accordance with the related regulation and EU standards. • Pellet boilers has been produced in accordance with TS EN 303-5 standards. Technical Specifications Measured Values GT–25 GT–15 Device type: BOILER Class Nominal Heat Power Minimum Heat Power... -
Page 11: Pellets
2.1 PELLETS Wood pellets are manufactured by hot-extruding compressed sawdust which is produced during the working of natural dried wood. The compactness of the material comes from the lignin which is contained in the wood itself, and allows the production of pellets without the use of glues or binders. The market offers different types of pellet with characteristics which vary depending on what mixture of woods is used. -
Page 12: Installation And Assembly
3. INSTALLATION AND ASSEMBLY 3.1 Safe distance Nonflamable walls GT-15 A=300 mm GT-25 B=600 mm C=1100 mm (radiation area) D=1000 mm E= 600 mm If the boiler is installed next to a flammable wall, isolation should be done for the Wall. -
Page 13: Plumbing Connection
3.2 PLUMBING CONNECTION 1- Radiator water outlet 2- Radiator water inlet 3- Anti-condensation valve 4- Safety valve evacuation 5- Power supply inlet 6- PC connection inlet 7- Chimney outlet 8- Exchanger hot water outlet 9- Exchanger cold water inlet 10- Boiler 11- Plumbing water unloading 12- Plumbing water loading valve valve... -
Page 14: Electric Connection
3.3 ELECTRIC CONNECTION... -
Page 15: Boiler Pipe Installation
4. BOILER PIPE INSTALLATION • Horizantal chimney's duct and vertical chimney's pipe connections are very important, therefore, it must be done carefully. Warranty of the smoke pipe connection should be made accordingly. • The minimum safety opening surface sections should be 15%. Slope in the horizontal section of the pipe should be 3-5%. - Page 16 • The boiler pipe connected to the horizontal chimney’s duct must not be longer than 2 m. Boiler pipe elbow should be used only until the chimney. (Site selection for boiler should be determined by the closest point where the chimney.) •...
-
Page 17: Suitable Shapes Of Chimney
4.2 SUITABLE SHAPES OF CHIMNEY The remaining portion of the chimney outside the home, it must be insulated. The smoke in the event of an electrical failure of your boiler with a natural drive capable threw out the chimney must be applied. figure 4-1 Chimney required isolation must be performed. -
Page 18: Control Panel
5. CONTROL PANEL 5.1 INTRODUCTION The display panel is a control panel intended for controlling pellet or biomass feeded furnaces or boilers, integrating a temperature sensor and a RTC used to turn on or off the controlled heater at preset hours; an IR remote control may be supplied separately. The panel is equipped with an on/off button with the corresponding I/O icon and 4 white circled keys whose function descriptions appear on the display, close to each of KEY5... -
Page 19: User Functions
5.2 USER FUNCTIONS 5.2.1 Heater Type Setting figure5-1- controlled type selection screen T y p e S t o v e T y p e > This screen will appear only in case the main board has not stored a correct heater type; by pressing Key 2 and Key 4 the system will return to the following or the previous controlled heater name set by the user, which will appear on the display upper line while, by pressing Key 3 (Enter), the chosen type will be confirmed. -
Page 20: Heater Firing Up/ Shutting Down
On the top line the current room temperature and the time are shown; if the controlled heater is a water boiler, the room temperature and the water temperature will alternate on the display (5s the room temperature and 2s the water temperature. On the bottom line the system alternates every 2s the text strings describing the controlled heater current status, the active functions and the active alarms, if any. -
Page 21: Temperature/ Power Fine Setting
5.3.1 Temperature/ Power fine setting figure5-8- ambient temperature setting screen If the controller is in auto mode, the requested temperature values are cycled by pressing the Temp/Fire key (key #2) (except when the storing tank or the room thermostat are set active; in this case the key is disabled). By holding the key pressed for 2s the selection screen will appear;... -
Page 22: Warnings
can be accessed by pressing the key Set (key #3). The arrow keys allow the user browsing through the various menu items. Whether a value is shown on the top line or not, to have the displayed function modified, the key Set (key #3) should be pressed: The value shown on the top line starts blinking to let the user being informed that it can now be changed, while “Set”... -
Page 23: Date Menu
5.4.3 Date menu Date and time menu contains a number of data and parameters. Set on the top line only writer has no value; # To access a sub-menu, press 3. The use of this menu is similar to the use of advanced FUNCTİON VALUE functions menu. -
Page 24: Settings
5.4.6 Settings Settings menu contains a number of data and images, such as the main menu. This works as described for the main menu . Function Value Language IT–EN–FR–ES–DE–PT–NL-GR-TR Eco mode On / Off Backlight On – 1200” (10” steps) Remote control On / Off °... -
Page 25: Technical Menu
5.4.6.3 Pump Activation "Pump enable" choice, boilers appear to be enabling position just off the panel at the pump. With this function the heating more quickly and with more water fills the operation of the circulation pump is provided. At the same time easier way drain valve with air bubbles ejected. - Page 26 İnfo brief description of the problem that occurs when pressing is seen on the screen. figure5-19– ALARM screen 3 " On the top line "info" instead of "ESC" appears, a brief description of the problem that occurred in the bottom line of text on the display FAULT displayed. pressing Esc will return to the previous screen.
-
Page 27: Chrono (Weekly Program)
5.6 CHRONO (WEEKLY PROGRAM) figure5-20– weekly program screen Chrono run at specified boiler on and off. This function is performed by opening and closing times set by the user. Set of 6 different opening and closing times. Chrono includes: 1. Enable opening and closing time is activated. Activation activated when the boiler on and off at certain times kapanır.6 opening and closing hours of the current one is not enabled chrono they are activated. - Page 28 Choose program Program 1 Press Set to access the setup menu. e s c S e t You can change the start time by pressing the Set. < P r o g > figure5-22- Program screen The desired start time using the buttons shown; set at 15 minute intervals Adjust time e s c S e t...
- Page 29 After confirmation the air temperature 'arrow' scroll using the keys. Here, set the room temperature setting is set. The system uses it only began working in automatic mode. If the system is in manual mode, this preference is not considered at this time. room temperature setpoint as set opening and closing times will be set and approved.
- Page 30 After approval exit the menu by pressing the escy. "Enable" is checked in the menu with the help of e keys. After opening and closing one program can be activated. Go to the first menu screen and enable selected to activate the chrono Chrono figure5-329- weekly programs reset screen Reset option will reset all the programs enabled with.
-
Page 31: Dimensions
6. DIMENSIONS GT-25 figure 8-1... - Page 32 GT-15...
- Page 33 1- Front cover 2- Combustion chamber cover 3- Ashpit cover 4- Manometer 5- Top cover 6- Turbulator rods 7- Pellet tank covers 8- Chimney outlet 9- Pump 10- Service intervention cover 11- Mainboard cover 12- ON-OFF switch 13- Hot water outlet 14- Heat exchanger connection 15- PC connection module...
- Page 34 1. Front cover 2. Combustion chamber cover 3. Ashpit cover 4. Manometer 5. Top cover 6. Turbulator rods 7. Pellet tank covers 8. Chimney outlet 9. Pump 10. Service intervention cover 11. Mainboard cover 12. ON-OFF switch 13. Hot water outlet 14.
-
Page 35: Safety Devices
7. SAFETY DEVICES 1. ON-OFF switch 2. Pellet tank over temperature sensor 3. Boiler body temperature sensör 4. Smoke pressure switch 5. Safty valve 6. Closed expansion tank 7. Air prufier (automatic) -
Page 36: Maintanence And Cleaning
8. MAINTANENCE and CLEANING All cleaning of your boiler, while your boiler is not lit (when cold case) and make the elctrical connection closed position. When the use of high quality pellet boiler can not be maintained at very frequent intervals. Maintenance and cleaning of the boiler according to the type of fuel used per year for at least 2 (two) times must be made. - Page 37 Turbulator Cleaning The covers (1, 5, 4) must be closed while the turbilator cleaning is being. Open the top cover, and you will see the tubilator rods. Move the turbilator rods up and down. Again the the moves until the turbilators are cleaned. Then open the front cover and ashpit cover(1,5).
-
Page 38: Pump Working
PUMP WORKING LED COLOUR MEAN DETAILED DESCRIPTION The pump is operating Normal operation normally. solid green light Pump will try to take the air in the system for 10 minutes. The pump then this process will not work if the maximum speed;... -
Page 39: Problems- Causes- Solutions
10. PROBLEMS- CAUSES- SOLUTIONS PROBLEMS POSSIBLE CAUSES SOLUTIONS Boiler does not start. No power supply. Check the main switch position ‘I’. Blown fuse. Check the fuse. Blocked the pellet sensor. Check the pellet sensor . Pressure switch faulty Check the water pressure Water temperature probe Check the water temperature probe. - Page 40 Boiler is shutting down The pellet tank may be empty Fill the pellet tank at the appropriate automaticly. level The ashtray cover may be open check the ashtray cover Bad pellet quality You must use qualiy pellet Pellet flow may be low Check the pellet flow Combustion room may be dirty Clean the combution room...
- Page 41 In automatic mod the Temperature probe problem Check the temperature sensor. boiler runs full-power. Degree of temperature on thermostat Set the degree of temperature Boiler is working a few The ignition cycle is not completed. Re-run the ignition cycle (turn off). minutes and then off There may be a temporary failure in the power Check the conditions indicating a top.
- Page 42 The pellet hopper is empty Fill the pellet hopper. Boiler fire in Pellet feeder does not work. Close the door or replace with original spare parts. self off and / or The pellet temperature Change to a type of pellet recommended by the the boiler stops manufacturer.
- Page 43 The pellets are comes insufficient combustion air. Check that it is edible by the boiler room constantly stacked into the fresh air. combustion bowl, The pellets could not damp or Check the gutters clean and clear the air duct of the cover glass gets dirty appropriate.
- Page 44 The display showed In any of the security elements Refer to the code description of the manual referring to the any alarm condition. on the boiler to be entered code of the alarm condition. Keys was inactive. Overheating On / off button while holding down the boiler's self-control switches off the boiler if the error corrected the boiler goes into shutdown.
-
Page 45: Significiant Instructions For Effective Using
11. SIGNIFICIANT INSTRUCTIONS for EFFECTIVE USING • Please, clean the ash and dross in combustion pot before igniting the boiler. • Please clean the inside and outside of the glazed models with the help of cleaner. • The insulated environment is recommended to use the boiler. •... -
Page 46: Suggestion And Feedback
12. SUGGESTION and FEEDBACK • Please read the installation schema and userguide carefully. • Please use wood pellet as fuel. • Once a year, the boiler should be checked by the authorized boiler. • Please do not run the boiler when the boilers door is open. •... -
Page 47: Warranty
WARRANTY T.C. MINISTRY OF SCIENCE INDUSTRY AND TECHNOLOGY Directorate General of Consumer Protection Market Surveillance WARRANTY The Issue Date and number of the document: In using this document; 4077 number Law on Consumer Protection and based on this act put into effect Warranty application in accordance with Regulation on Principles, T.C. - Page 48 13. The product is out of warranty if problems arise from foreign bodies being thrown out of the pellet fuel to the pellet tank Service Calls For technical service calls, distributor should contact with IFYIL regional sales representative. Any right cannot be claimed due to the changes or modifications or wrong use of spare parts.
