GigRig Distributor Manual

INTRODUCTION

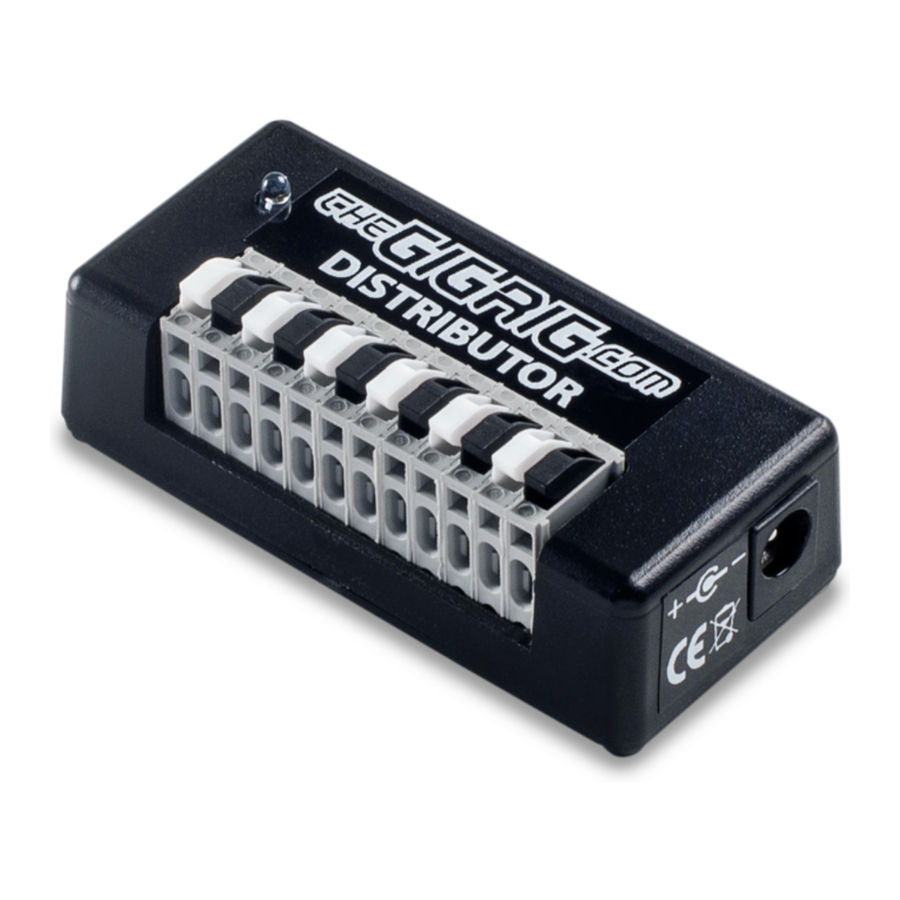

The GigRig Distributor works as part of our Modular Power Supply to distribute power across your pedalboard. The Distributor has six non-isolated 9v outputs that can deliver HUGE amounts of current when needed. Use The GigRig Generator to power your Distributor and from there you can add Isolators, High Current Adapters, Virtual Batteries and Cable Adapters to correctly power your DC powered equipment.

INSTRUCTIONS

Each Distributor is supplied with 6 x 1.5 metre length DC leads with right angled 2.1mm connectors to power your equipment. Follow the instructions listed in the diagram provided to correctly connect them.
Please note, we cannot guarantee the performance of the adapter from any other power supply.
