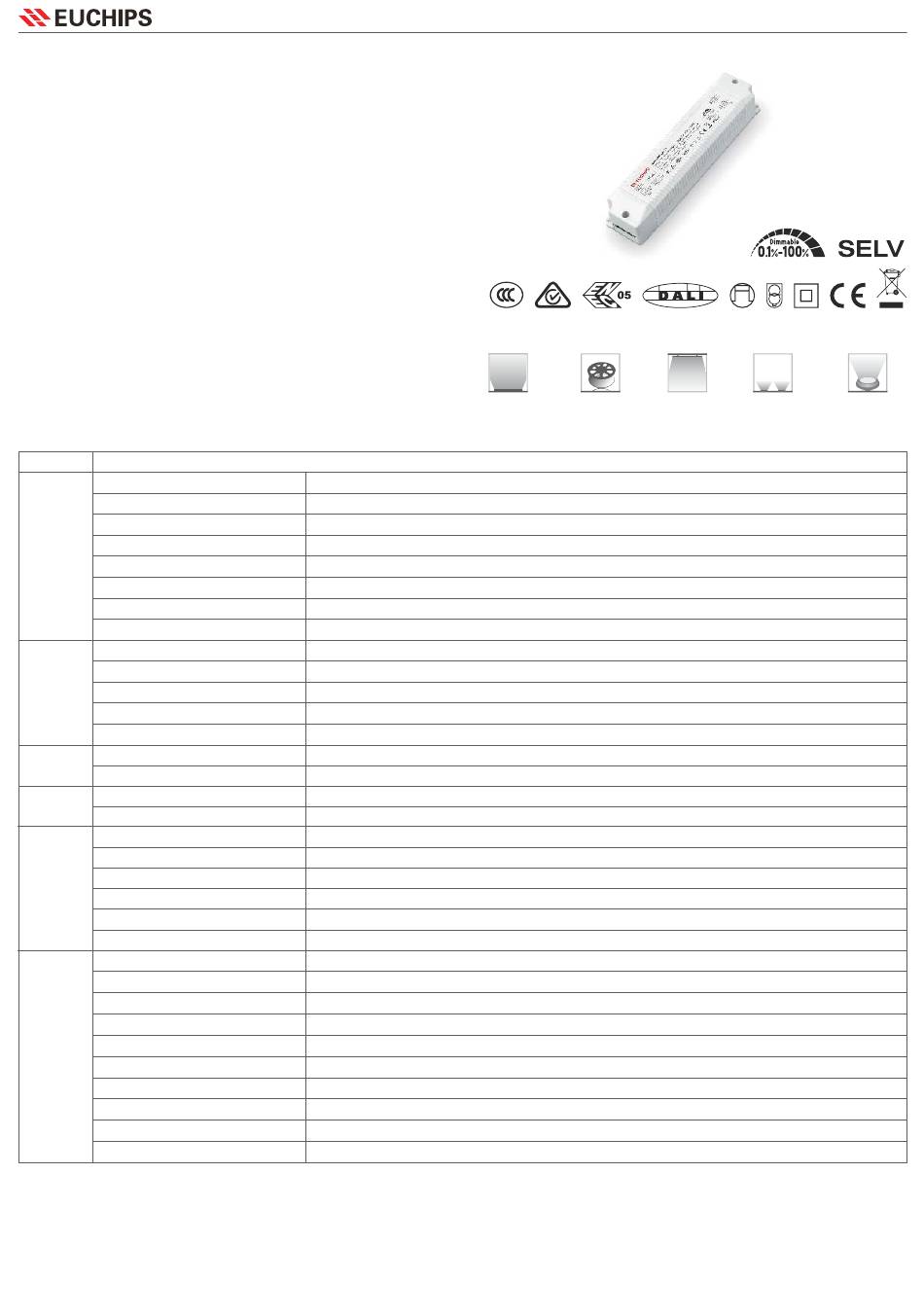

EUCHIPS LCP40AD-1H12V Quick Start Manual

LCP40AD-1H12V
Summary
LCP40AD-1H12V is a constant Voltage output mode LED driver. Support DALI dimming
function, Touch DIM (Push DIM) function, 0/1-10V Dimming function. The output and dimming
circuit are also completely in accordance with the new regulations with isolation to
ensure the users and luminaire system during installation.
Product Features
·Single channel output
·Support DALI-2 dimming function, Touch DIM (Push DIM) function, 0/1-10V Dimming function
·Dimming range: 0.1-100%， Dimming effect smooth, no flicker
·Protections: Short circuit, Over load
·Suitable for indoor LED lighting application
Technical Paramaters
Model
LCP40AD-1H12V
Efficiency
Voltage
Frequency Range(Hz)
Power Factor
Input
THD(full load)
AC Current(max)
Standby power
Inrush Current(max)
Current/Voltage/Power
Ripple Current
Output Channel
Voltage Tolerance
Turn on delay Time
Dimming Type
Function
Dimming Range
Short Circuit
Protection
Over Load
Surge
Withstand Voltage
Safety
DALI Standard
&
Safety Standards
EMC
EMC Eission
EMC Immunity
Working Temp., Humidity
Storage Temp., Humidity
Tc
Material
IP Rating
Others
Lifetime
Warranty Condition
Switch Cycle
Pack Information
Dimension
User's manual: 2024.02
Application
Wall Washer
≥85%@230VAC, Full load
220VAC-240VAC
50/60Hz
>0.95@230VAC, Full load
<10%@230VAC
≤0.27Amax@230VAC
<1W
Cold start, <30A@230VAC
3.35A/12V/40W
<3%
1
±5%
<0.5s, at 230Vac
DALI/Touch DIM/1-10V/Adjustable resistance /PWM
0.1%-100% Dimming to off
Connect the LED power positive output and LED negative output terminal, together
When the output voltage is exceeded, the output current decreases and, recovers automatically when the load is reduced.
L-N>1KV
I/P-O/P: 3750VAC/1min/10mA; I/P-E: 1875VAC/1min/10mA
IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI
EN61347-1, EN61347-2-13
EN55015, EN61000-3-2, EN61000-3-3
EN61000-4-2,3,4,5,6,8,11; EN61547
-20°C~50°C, 20-50%RH
-40°C~85°C, 5-70%RH
90°C
PC
IP20
50,000h@tc:80°C
5 Years
>25,000 tims
Net weight: 161g±5%/PCS; 50PCS/Carton; 8.1kg±5%/Carton; Carton Size: 430*306*168mm(L*W*H)
185*42.5*28.5mm(L*W*H)
1/2
Constant Voltage LED Driver
LED Strip Light
LED Tube Underground Light
AR111 Venture Light
