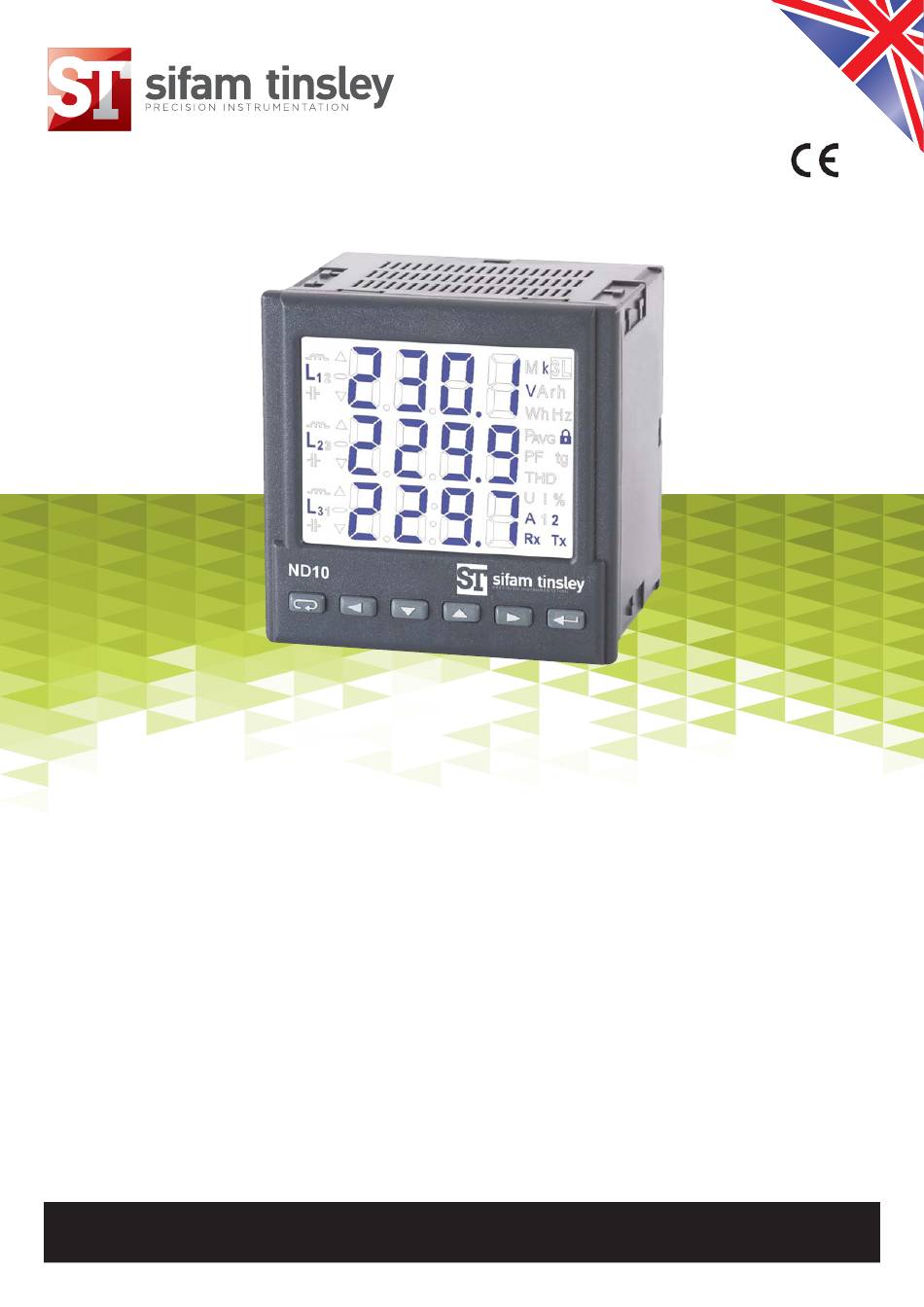

This manual superseded all previous versions – please keep for future reference
ND10
NETWORK PARAMETER METER
User Manual - Issue 1.0
SUBJECT TO CHANGE WITHOUT NOTICE
MULTIFUNCTION METER
ND10
www.sifamtinsley.co.uk
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sifam Tinsley ND10
Summary of Contents for Sifam Tinsley ND10
- Page 1 MULTIFUNCTION METER ND10 www.sifamtinsley.co.uk Multifunction Meters Transducers & Isolators Temperature Controllers Converters & Recorders ND10 Digital Panel Meters NETWORK PARAMETER METER Current Transformers Analogue Panel Meters User Manual - Issue 1.0 Shunts Digital Multimeters Clamp Meters Insulation Testers SUBJECT TO CHANGE WITHOUT NOTICE...
-
Page 2: Table Of Contents
12. MAINTENANCE AND GUARANTEE...................21 1. Application The ND10 meter is a digital programmable panel meter destined for the measurement of the 3- phase, 4-wire power network parameters in balanced and unbalanced systems. It is also capable of displaying measured quantities and their simultaneous digital transmission. The meter is also capable of controlling and optimization of the power electronic devices, systems, and industrial installations. -
Page 3: Meter Set
4. Installation ND10 Meter is adapted to be mounted to the panel with mounting brackets (see Fig. 1). Meter housing is made of plastic. Housing dimensions: 96 x 96 x 77 mm. On the outer side of the meter there are screw and tab terminal strips that can be used for connecting external wires with diameter up to 2.5 mm... -
Page 4: Meter Description
ND10 METER OF NETWORK PARAMETERS Fig. 2. Meter dimensions. 5. Meter Description 5.1. Current inputs All current inputs are galvanically isolated (internal current transformers). The meter is suited to operate together with external measuring current transformers. Displayed values of currents as well as their derivative values are automatically calculated using set ratio value of the external transformer. -
Page 5: Nd10 Meter Programming
3 current transformers and 3 voltage transformers in 4-wire network Caution: It is recommended to connect ND10 meters (RS- 485) to a computer with a shielded wire. A shield should be connected to ground in a single point. Shielded wire must be used in case there are many interferences in the environment. -
Page 6: Power-On Messages
ND10 METER OF NETWORK PARAMETERS 6.2 Power-on Messages After connection of voltage inputs the meter performs a display test and displays the ND10 meter name, build and current software version. where: r n.nn is a number of the current software version or special build number. b n.nn is a bootloader version number. -
Page 7: Operating Modes
When alarms are activated, symbols A1 and/or A2 are displayed. When alarms are deactivated and alarm signalization latch is turned on, flashing symbols A1 and/or A2 are displayed. 6.4 Operating Modes Fig. 6. ND10 meter operating modes. MULTIFUNCTION METER Issue 1.0... -
Page 8: Parameter Settings
ND10 METER OF NETWORK PARAMETERS 6.5 Parameter Setting ND10 meters are configured with the use of LPCon software available for free on the www.sifamtinsley.co.uk web site. Fig 7. Setup menu. Programming mode is enabled by pressing and holding button for about 3 seconds. To enable the programming user bust enter a correct access code. -
Page 9: Setting Of Output Parameters
ND10 METER OF NETWORK PARAMETERS 6.5.2 Setting of Output Parameters In Options choose the out mode and confirm your choice by pressing the button. Table 4 The write of the value ALon lower than ALoF switches the alarm off. Selection of the monitored value: Table 6 6.5.3 Setting alarm parameters... - Page 10 ND10 METER OF NETWORK PARAMETERS *Un, In – voltage and current rated values MULTIFUNCTION METER Issue 1.0...
- Page 11 ND10 METER OF NETWORK PARAMETERS a) n-on b) n-oFF c) On d) OFF Fig. 8. Alarm types (x – alarm no.): a),b) normal c) off d) on. MULTIFUNCTION METER Issue 1.0...
- Page 12 2500: 5A, voltage 230 V. Peak max power consumption 1,5 MW. Calculations: ND10 meter active rated 3-phase power: P = 3 x k u x U n x k I x I n = 3 x 1 x 230 V x 500 x 5A = 1,725 MW g100 %.
-
Page 13: Setting Date And Time
ND10 METER OF NETWORK PARAMETERS Set alarm as following: monitored quantity: A1_n = P_ord; alarm type: A1_t = n-on; A1on = 90,0, AL1oF = 89,9; delay time A1dt = 0 or 60 s; A1_s = 0; A1_b = 0. Parameters should be set as following: tr_I = 500; Syn = 15 or c_15, and Pord = 57.9. -
Page 14: Software Upgrades
7. Software Upgrade ND10 meter (with digital output) allows for firmware upgrade via PC with LPCon software installed. LPCon software is available as freeware on the www.sifamtinsley.co.uk web site. Upgrade is possible if PC is connected to RS485 to USB converter, such as PD10 converter. -
Page 15: Rs-485 Interface
ND10 meter register map ND10 meter has data contained in 16-bit and 32-bit registers. Process variables and meter parameters are placed in the address area of registers in a way depended on the variable value type. Bits in 16-bit registers are numbered from the youngest to the oldest (b0-b15). 32-bit registers include numbers of float type in IEEE-754 standard. - Page 16 ND10 METER OF NETWORK PARAMETERS MULTIFUNCTION METER Issue 1.0...
- Page 17 ND10 METER OF NETWORK PARAMETERS Bit 7 – „1” – reactive capacitive energy display Brackets [ ] contain, respectively: resolution or unit. Bit 6 – „1” – active exported energy display Energy is made available in hundreds of watt-hours (var-hours) in double 16-bit register, and for this reason, one must divide them by 10 when Bit 5 –...
- Page 18 ND10 METER OF NETWORK PARAMETERS MULTIFUNCTION METER Issue 1.0...
- Page 19 ND10 METER OF NETWORK PARAMETERS When lower limit is exceeded, a -1e20 value is displayed. Conversely, when upper limit is exceeded, a 1e20 value is displayed. MULTIFUNCTION METER Issue 1.0...
-
Page 20: Error Codes
ND10 METER OF NETWORK PARAMETERS 10. Technical Data 9. Error Codes Measuring Ranges and Admissible Basic Errors During the meter operation, error messages may be displayed. Following list shows causes of particular errors.- Table 11 Err1 – too low voltage or current during measurement: - PF , tgφ... - Page 21 ND10 METER OF NETWORK PARAMETERS Power consumption: ND10 meter complies with following standards: - in L1 and L2 voltage circuit ≤0.05 VA Electromagnetic compatibility: - in L3 voltage circuit ≤3 VA - interference immunity acc. to EN 61000-6-2 - in current circuits ≤0.05 VA...
-
Page 22: Ordering Codes
ND10 METER OF NETWORK PARAMETERS 12. Maintenance and Guarantee 11. Ordering Codes Table 12 The ND10 does not require any periodical maintenance. In case of some incorrect operations: ND10 - After the dispatch date and in the period stated in the guarantee... - Page 23 ND10 METER OF NETWORK PARAMETERS Contact Sifam Tinsley Instrumentation Ltd 1 Warner Drive Tel: 01376 335271 Springwood Industrial Estate E-mail: sales@sifamtinsley.com Braintree, Essex CM7 2YW www.sifamtinsley.co.uk MULTIFUNCTION METER Issue 1.0...
