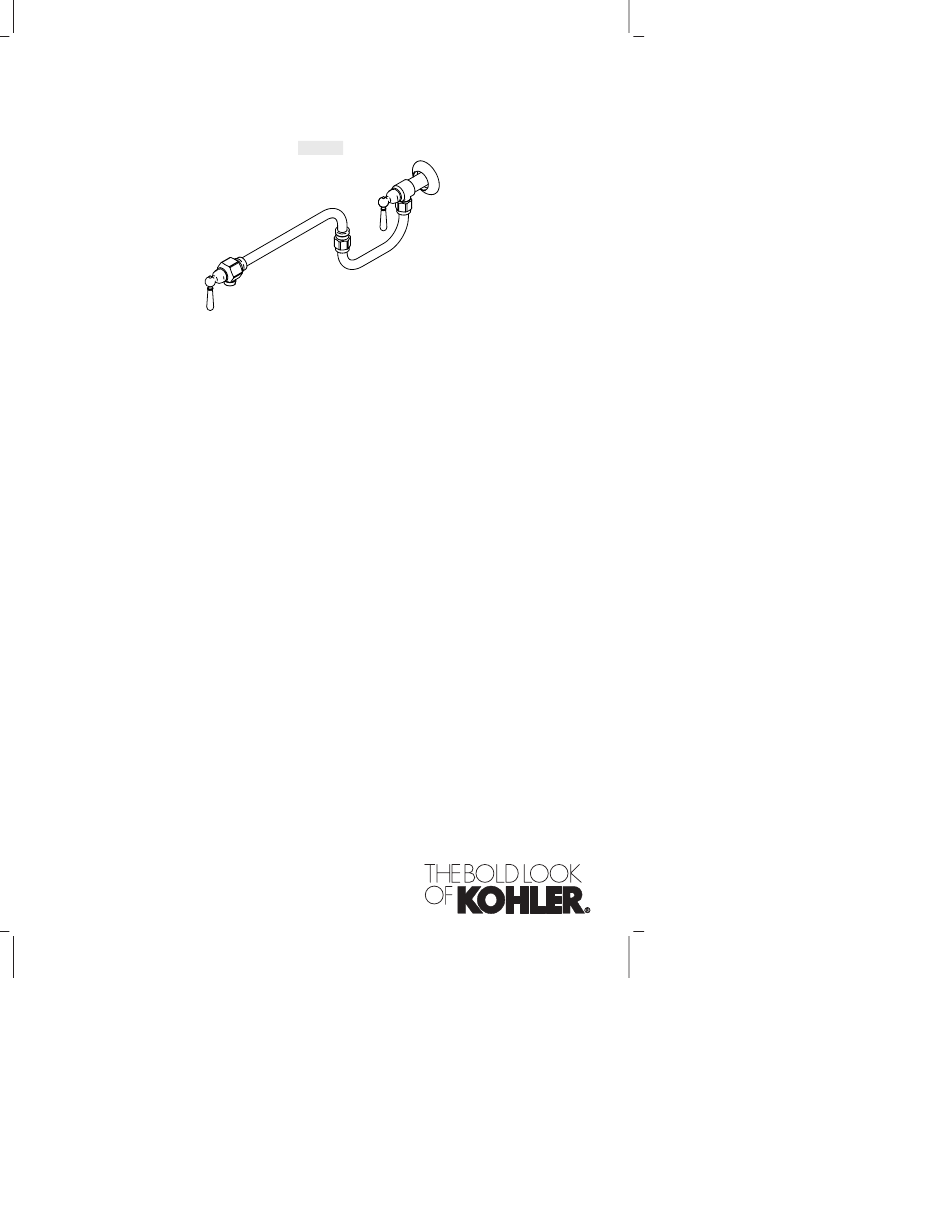

- Page 1 Installation Guide Wall-Mount Pot Filler K-7322 M product numbers are for Mexico (i.e. K-12345M) Los números de productos seguidos de M corresponden a México (Ej. K-12345M) Français, page “Français-1” Español, página “Español-1” 1047606-2-B...
-
Page 2: Tools And Materials
Do not use petroleum based products in this project; the only exception being the sealant between the wall and the back flange. Kohler Co. reserves the right to make revisions in the design of faucets without notice, as specified within the Price Book. -
Page 3: Prepare The Site
1/2″ (1.3 cm) beyond the finished wall surface. Install the wall board and finished wall material. Allow a 1-3/16″ (3 cm) diameter opening in the wall board and finished wall material for the faucet supply connection. Kohler Co. 1047606-2-B... - Page 4 Slide the gasket and mounting plate over the supply and up against the finished wall. Position the mounting plate so the setscrew hole is facing down. Line up the holes in the gasket and mounting plate with the anchors and secure with the four screws. 1047606-2-B Kohler Co.
- Page 5 Secure with the setscrew. Slide the escutcheon over the mounting plate. Position the escutcheon so the setscrew hole is facing down. Secure the escutcheon with the small setscrew. Kohler Co. 1047606-2-B...
-
Page 6: Installation Checkout
Check all connections for leaks; make any adjustments as needed. Allow water to run through the spout to remove any debris. Turn off the faucet by closing both valves. Remove any debris from the aerator and reinstall. 1047606-2-B Kohler Co.
