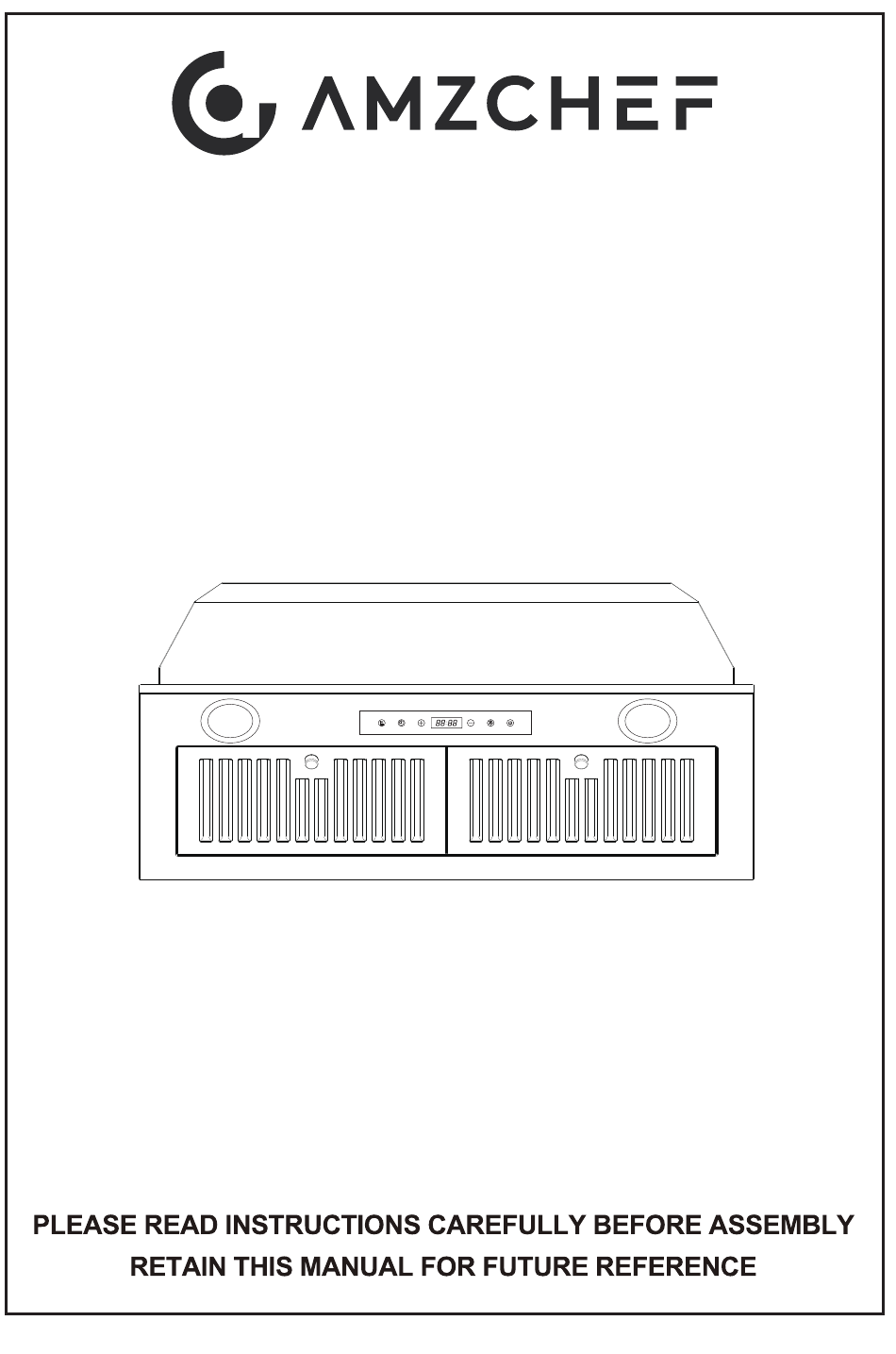

- Page 1 Instrution Manual RANGE HOOD Brand:amzchef Model:UL-21BIAM30-TS-PA 120V~ 60Hz 193W...
-
Page 2: Table Of Contents
IMPORTANT SAFEGUARDS PRODUCT INFORMATION PARTS INCLUDED AIR OUT LET INSTALLATION METHOD INSTALLATION INSTRUCTIONS OPERATION MAINTENANCE TO REPLACE LIGHT TO REPLACE FILTER TROUBLESHOOTING WARRANTY 5004880... -
Page 3: Important Safeguards
IMPORTANT SAFEGUARDS WARNING: 1.Installation Work and electric wiring (including switch location) must be done by the qualifed person(s) in accordance with local applicable codes and stan- dards,including fre-rated construction. 2 .This hood may have sharp edges.Becarefu to avoid cuts and abrasions during insallation and cleaning. - Page 4 4 . use an extinguisher ONLY if: . You know you have a Class ABC extinguisher, and you already know how to operate it; . The fre is small and contained in the area where it started; . The fre department is being called; .
-
Page 5: Product Information
PRODUCT INFORMATION Main Parts Name Hood Body Baffle filters Opening Size φ5.9"(150mm) 1.1"(28.5mm) 1.1"(27.7mm) 2.4"(62mm) 0.6"(15mm) Specifications Model UL-21BIAM30-TS-PA Item Model UL-21BIHD30-TS-PA/UL-21BIWF30-TS-PA/UL-21BIWM30-TS-PA Voltage 120V~ 60Hz Air exit 5.9” Duct Light 2*1.5W LED Motor power 190w Total power 193w Filter Baffle filter... -
Page 6: Parts Included
PARTS INCLUDED Parts List Tools Needed （not included）... -
Page 7: Air Out Let Installation Method
AIR OUT LET INSTALLATION METHOD INSTALLATION INSTRUCTIONS Warning... - Page 8 Installation Height Vent duct length Preparing the range hood Calculating Vent System Length...
- Page 10 installation procedure...
-
Page 13: Operation
OPERATION Electrify function After connecting to the power, the indicator will be power-on and off after 1 second. Display show up system time ( Default 00:00) and then enter to the shutdown mode. ON/OFF Key During shutdown mode, press , the indicator is on, and then enter into standby mode. -
Page 14: Motor Function
Motor function 1.When the motor is running, press to decrease the speed. During its low speed, press to back to standby mode, the motor stops running. 2.During the standby mode, press , motor will run at low speed. When the motor is running, press to increase the speed. -
Page 15: Maintenance
MAINTENANCE TO REPLACE LIGHT... -
Page 16: To Replace Filter
TO REPLACE FILTER... -
Page 17: Troubleshooting
TROUBLESHOOTING...
