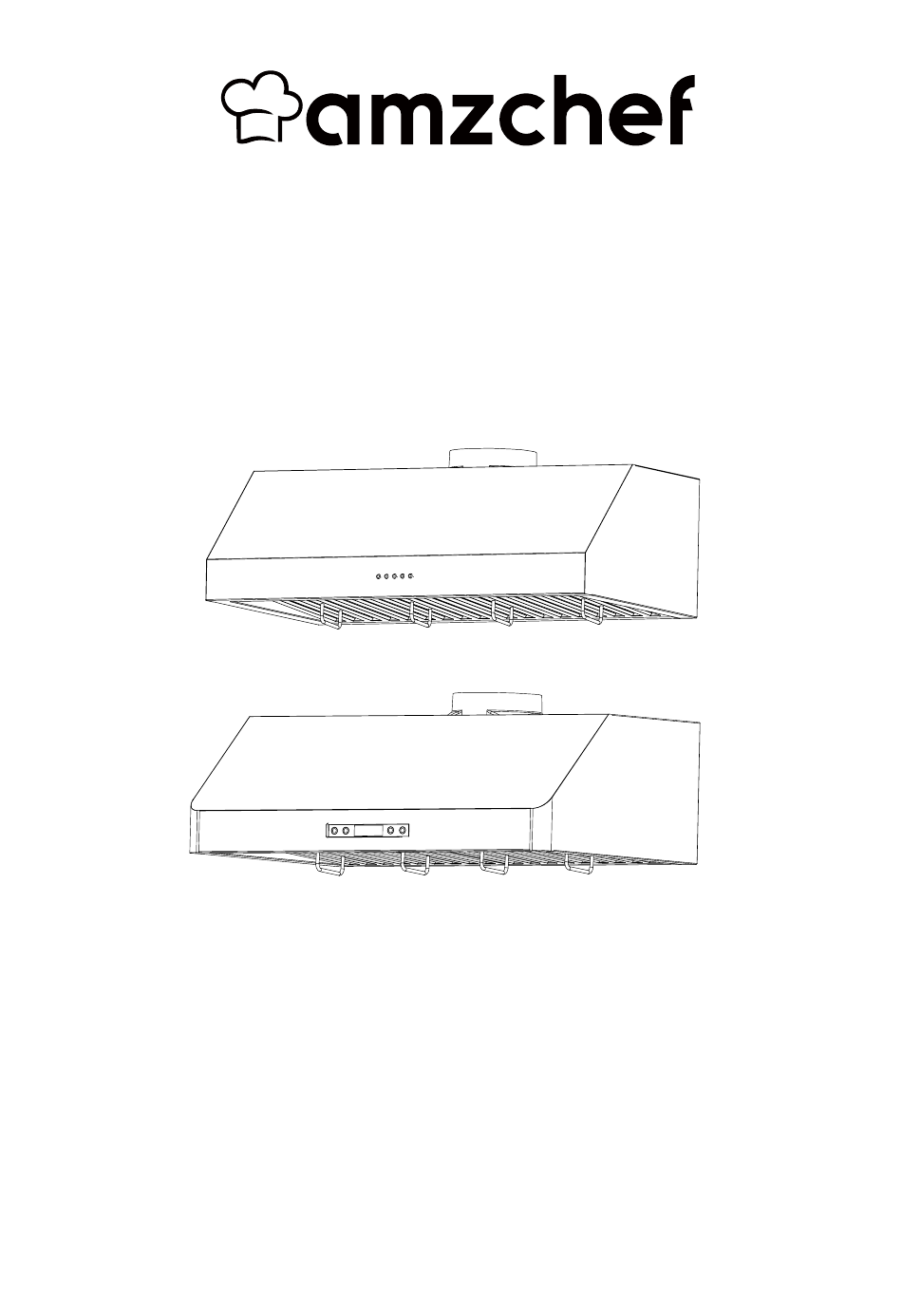

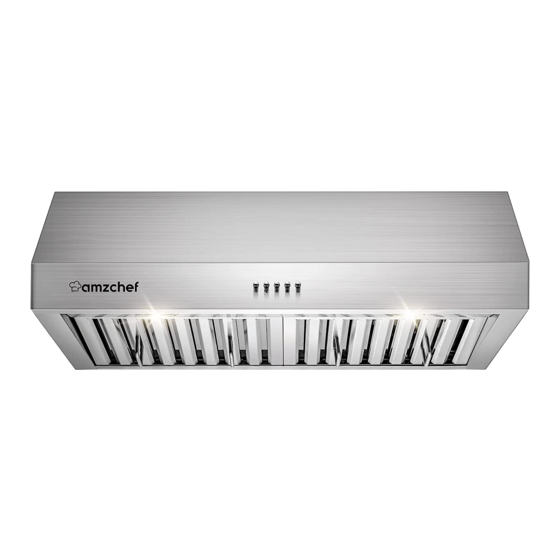

- Page 1 INSTRUCTION MANUAL RANGE HOOD BX2-H-J1EAM01 BX2-H-J1EAM02 AC 120V 60Hz 233W PLEASE READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY RETAIN THIS MANUAL FOR FUTURE REFERENCE READ AND SAVE THESE INSTRUCTIONS...
-
Page 2: Table Of Contents
Important safety instructions............2-3 Stainless steel baffle filters..............4 WARNING Parts diagram(BX2-H-J1EAM01) ...........5-6 1. Before servicing or cleaning unit, unplug or disconnect the rangehood from the power supply. Parts diagram(BX2-H-J1EAM02).............7-8 2. TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE: A. -
Page 3: Important Safety Instructions
IM PORTANT SAFETY INSTRUCTIONS STAINLESS STEEL BAFFLE FILTERS • Check to ensure your electricity supply matches that shown on the rating plate.The appliance must only be used as rated. • Please always supervise children and any other individuals that should be monitored while using this appliance. •... -
Page 4: Parts Diagram(Bx2-H-J1Eam01)
PARTS DIAGRAM PARTS DIAGRAM BX2-H-J1EAM01 30'' 12.20'' 12.87'' 10'' 10'' 26.34'' 20.47'' 30'' Back 20.47'' 6.28'' 8.66'' 12.20'' 3.19'' 1.8'' 9.48''... -
Page 5: Parts Diagram(Bx2-H-J1Eam02)
PARTS DIAGRAM PARTS DIAGRAM BX2-H-J1EAM02 30'' 6.28'' 10'' 12.87'' 26.34'' 30'' Back 20.47'' 6.28'' 8.66'' 12.20'' 3.19'' 1.8'' 9.48''... -
Page 6: Parts Included
PARTS INCLUDED PRE-INSTALLATION REQUIREM ENTS PARTS LIST A.12pcs-St6.0 screws B.12pcs-Wall Anchors C.1pcs-Remote Control PARTS NEEDED Me a suring ta pe Sa fe ty Glo ve s Le ve l Sa fe ty Go g g le s Ta pe Pe ncil Phillips scre wdrive r Fla the a d scre wdrive r Drill... - Page 7 INSTALLATION INSTRUCTIONS INSTALLATION INSTRUCTIONS WARNING TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug.
-
Page 8: Installation Instructions
OPERATING INSTRUCTIONS INSTALLATION INSTRUCTIONS BX2-H-J1EAM01 0 Off button It’s used for turning off the fan. Low Speed button It’s used for Ventilation on the kitchen. It is suitable for simmering and cooking which do not make much steam. Medium Speed button Airflow speed is ideally for ventilation in standard cooking operation. - Page 9 OPERATING INSTRUCTIONS OPERATING INSTRUCTIONS TIMER SETTING WORKING MODE , press & hold for 1 second, display flashing shows "00:00", enter the BX2-H-J1EAM02 TIMER SETTING MODE. In this state: pressing for increase 15 minutes pressing for decrease 1 minute. pressing for increase 1minute. If press key or without any operation in TIME SETTING MODE for 5 seconds, it will save the setting automatically and start to count down showing in display.
-
Page 10: Maintenance
M AINTENANCE TROUBLESHOOTING CAUTION: ALWAYS TURN OFF POWER AND UNPLUG THE APPLIANCE BEFORE TROUBLESHOOTING. PROBLEM POSSIBLE CAUSE & SOLUTION My range hood is Check inside the range hood if there is any noisy. loose debris and remove it A. The range hood and cooktop are too far away from each other. -
Page 11: Technical Information
TECHNICAL INFORMATION TECHNICAL INFORMATION For motor accessory Motor BX2-H-J1EAM01 Fan blower BX2-H-J1EAM02 Iron volute components Parts name Qty/hood Main Boby Iron volute air inlet net cover Light SS panel Filter fixing plate Bellows reinforcement plate 12μＦcapacitance Wiring board Electric control box base Electric control box upper cover 1.5W LED light...
