WoMaster WAC502G-L3 Manual

Indoor Wireless AP
Waterproof Wi-Fi 5 11ac
Wireless PTP Bridge
WAC502G-L3/WAC502G-L8
Waterproof WiFi 5 11ac Wireless PTP Bridge with built-in
Directional 15/18dbi Antenna
The WAC502G-L3 is a high-performance, long-distance wireless bridge, designed
for fast and reliable connectivity. It features high transmit power and a built-in 15dBi
high-gain dual polarization antenna, providing a point-to-point transmission distance
of up to 3KM. While WAC502G-L8 features a built-in 18dbi high gain antenna of up
to 8KM. The WAC502G series equips Qualcomm 802.11ac wave 2 chip for point to
point connectivity, supports up to 865Mbps peak rate. With passive 24V PoE power
input and a one-key master/slave pairing setting, installation is made simple. The
wireless security includes WPA/WPA2 encryption, Virtual AP and wireless user
isolation, along with CPE list and ping test tool to check PTP connectivity status. Its
compact size, wide operating temperature, IP65 housing and Level 3 ESD/Surge
protection (6K contact, 8K air, surge 2K/4K) ensure durability in various
environments. It's ideal for lite industrial applications in city surveillance, remote site
connectivity and monitoring, factory to factory, roadside and outdoor site installation.
866Mbps Directional
2x15/18dbi
High Throughput and Extended Range Wireless
Communication
• Powered by Qualcomm Wi-Fi 5 chip, compliant
with IEEE 802.11ac 2T2R MU-MIMO, provides
high-speed data rate of up to 866Mbps.
• WAC502G-L3 features a built-in 15dbi dual
polarization directional antenna, supports up to
3KM Long-distance transmission
• WAC502G-L8 features a built-in dual polarization
18dbi directional antenna, supports up to 8KM
Long-distance transmission
• Deliver up to 25±2dbm high transmit power
(depends on regional regulations)
• Supports Gigabit Ethernet Port to ensure that
Ethernet speed does not bottleneck of WLAN to
Ethernet forwarding
• Dual Gigabit Ethernet ports for uplink, while the
second port can be used for network extension
• Dual Ethernet wire connection allows to expand
the wireless range without bandwidth lost.
Wireless AP Features Summary
• Multi-SSID support: 3 SSIDs, 2 for virtual AP
• Hide SSID for added security
• Wireless Security: Supports Open, WPA, WPA2
PSK (TKIP/AES), WPA2 Enterprise
• Wireless Client Isolation: Improves wireless
stability by isolating wireless clients.
• Wi-Fi Time Scheduling: Allows on/off scheduling
to save energy.
• Adjustable RF Power: Enables tuning of RF
power based on the environment.
• MAC Filtering: Provides control over device
access.
Quick
Wireless Bridge
P2P
3KM/8KM

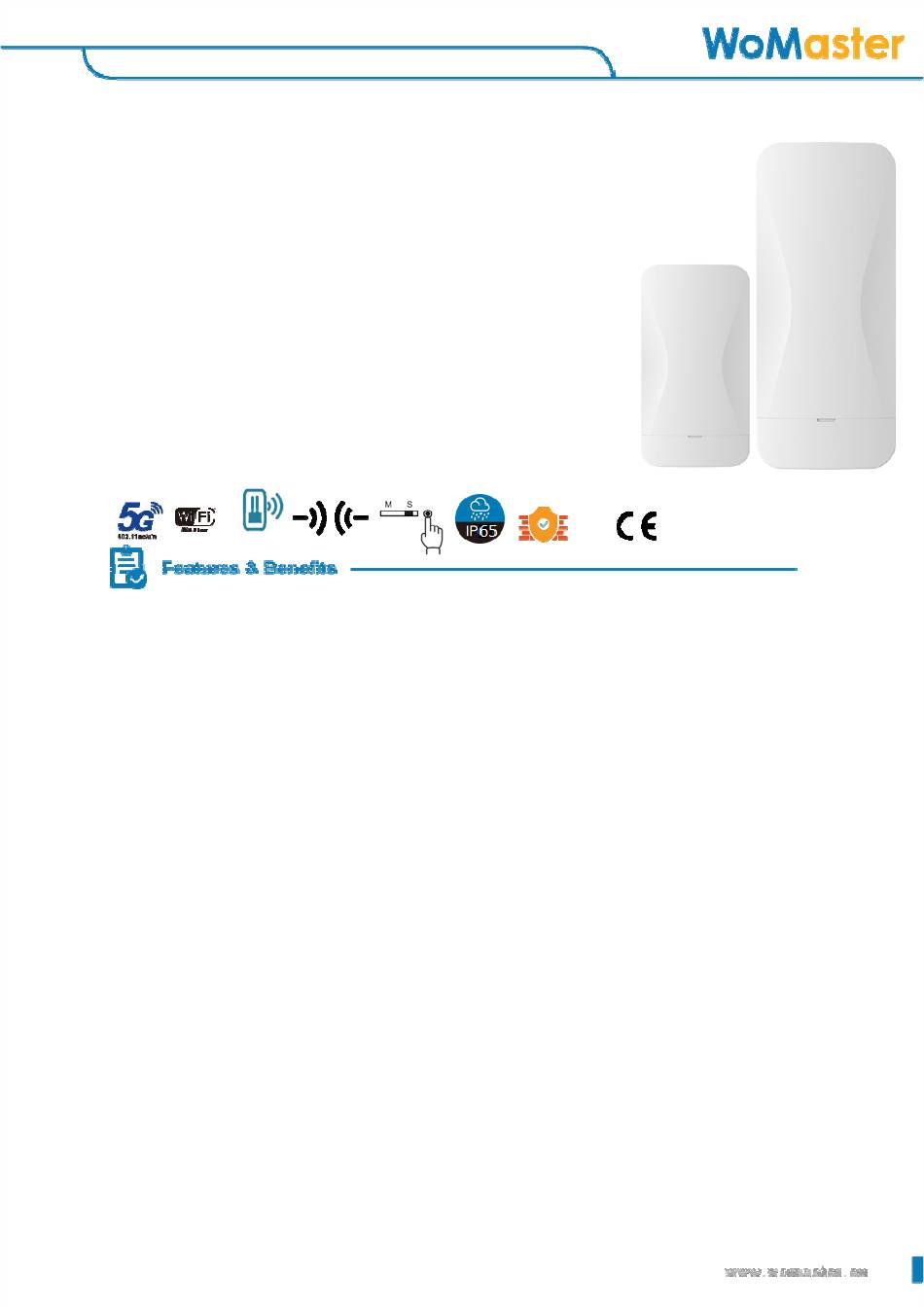

WAC502G-L3
NAT/
Router
Easy Point to Point Wireless Connectivity
• Working Modes: Supports both Access Point (AP)
modes and Repeater mode for CPE
• Simple Operation: A switch button to easily change
between AP/Master and CPE/Slave modes, and a
reset button for quick point-to-point configurations.
• Reset Button Functions:
 P2P Pairing: Press and hold for 2-5 seconds.
 Factory Reset: Press and hold for 10 seconds.
• Master AP can auto assign IP address to the
connected CPE APs
• Dashboard web GUI for configuration and status
monitoring
• Ping Test and traceroute for network diagnostic
• Signal Diagnostic LEDs:
 Five LEDs indicate signal quality.
 Three LEDs indicates System, LAN and WAN
• Configuration Backup and Restore
• Periodic Reboot: Options for immediate or
scheduled reboots.
Waterproof, Built-in Antenna for light Industrial
Applications
• Easy installation & Simplified Maintenance with the
built-in antenna design
• Level 3 ESD/Surge protection (6K contact, 8K air,
surge 2K/4K)
• Support passive 24VDC input through Ethernet port
• Support pole-mount and wall-mount
• IP65 Waterproof and -20˚C to 55˚C opeating
temperature, providing durable and cost-effective
soltion for light industrial and outdoor environments
WAC502G-L8
