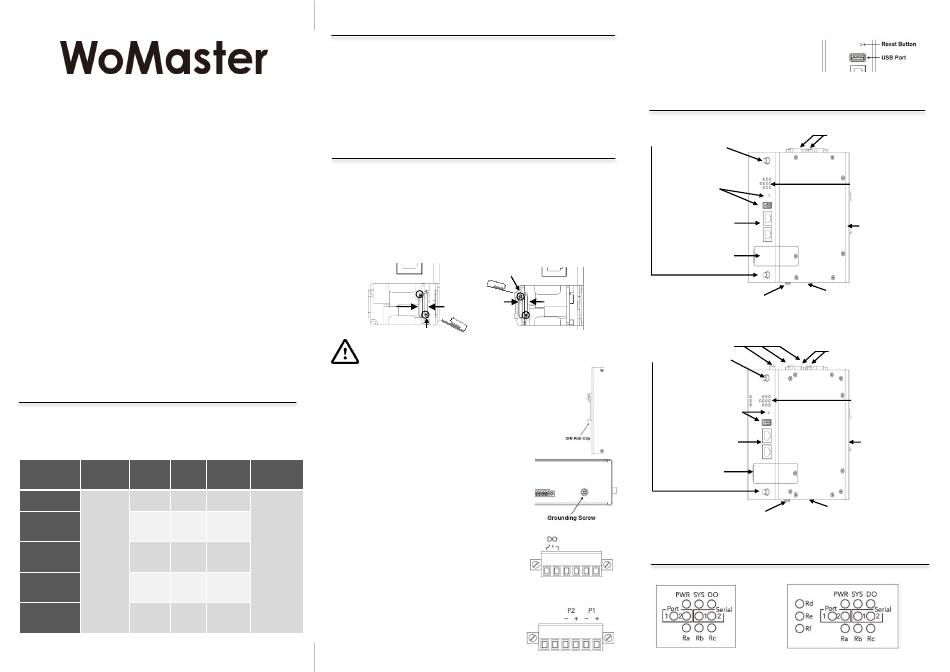

WoMaster WR322GR Series Quick Installation Manual

Quick Installation Guide
Industrial Secure Cellular Router
WR322GR Series
www.womaster.eu
・Overview
Innovative industrial secure LTE router WR322GR Series is designed for
IIOT applications by dual radio high-speed LTE routing and Wi-Fi
networks. Cyber redundancy includes wireless auto-offload, LTE/WAN
backup, redundant SIM ensure the best connectivity. Besides, WR322GR
supports GPS for IIoT applications.
100/1000 Radio Radio
Base-T 1 2
LTE or
WR312G-
-
LTE/WLAN Wi-Fi
WR312G- LTE
LTE (dual -
C Series SIM)
WR312G- LTE
LTE (dual -
2
D Series SIM)
LTE
WR322GR-
Wi-Fi (dual
WLAN+LTE
SIM)
WR322GR- LTE
Wi-Fi (dual
WLAN+LTE
SIM)
C Series
・Package Checklist
•
1 x Product Unit
•
1 x 6-pin Removable Terminal Connector
•
WR312G-LTE: 2 x LTE Antenna, Black
WR312G-WLAN: 2 x Wi-Fi Antenna, White
WR322GR-WLAN+LTE: 2 x LTE Antenna, Black + 2 x Wi-Fi Antenna,
White
•
1 x Din Clip
•
1 x Quick Installation Guide
Optional Accessory (for detailed information please refer to the Datasheet)
・Installation
SIM Card Slot
To install/uninstall SIM card:
1. Use screwdriver to loosen screws and remove SIM cover.
2. Insert a paper clip or a SIM-eject tool into the hole beside the SIM
socket. Push in towards the device, but don't force it.
3. (When install) Draw out SIM tray and install SIM card on top side of tray
(When uninstall) Draw out SIM tray and uninstall SIM card
4. Insert tray back to SIM socket and reattach SIM cover.
WR312G
SIM 2
Warning: Be careful when install the SIM Card, wrong
installation procedure will cause damage. Make sure the SIM
Card is facing the correct position.
DIN Rail mount
To mount the router on the DIN Rail track, insert the upper
end of the DIN‐Rail clip into the back of the DIN‐Rail track
from its upper side and lightly push the bottom of the
DIN‐Rail clip into the track. The DIN Rail should comply
with DIN EN50022 standard. Using wrong DIN rail may
cause unsafe installation.
Grounding Screw
RS232/
The grounding screw is located on the bottom side
Power
RS422/
of the router. For avoiding system damage by noise
input
RS485
or electric shock, establish a direct connection
between the ground screw and the grounding
2
surface prior to connecting devices.
Wiring the Relay Output
1
The relay output of the 2-pin terminal block
24V
connector are used to detect user-configured
(12~48VD
events. The two wires attached to the fault contacts
2
C)
form a close circuit when a user-configured event is
LVD Test
triggered. If a user-configured event does not occur,
in 24VDC
the fault circuit remains opened.
2
Wiring the Power Input
1) Insert the positive and negative wires into the V+
1
and V- contact on the terminal block connector.
2) Tighten screws when the wire is connected.
3) Connect the power wires to
suitable DC Switching type power supply.
WR322GR
Hole
SIM 2 SIM 1
SIM 1
Hole
USB Port (Not available for C Series)
Use the USB port in order to save or restore
the configuration and upload the firmware
upgrade file.
For further configurations, please refer to
User Manual.
・Appearance
WR312G
• 2 x SMA connectors
Easy System Management
• USB for Configuration/
Firmware Update (not for
C Series)
• Reset Button
Gigabit Ethernet
• 2-port 100/1000Base-T
• 2 x SIM Card Slot (LTE
Model)
Grounding Screw
WR322GR
Expansion Radio Board
• 5 x SMA Connectors
Easy System Management
• USB for Configuration/
Firmware Update (not for
C Series
• Reset Button
Gigabit Ethernet
• 2-port 100/1000Base-T
• 2 x SIM Card Slot
Grounding Screw
・LED Indication
WR312G WR322GR
Serial Port (1 Serial Port
for C Series)
• 2 x RS232/422/485, DB9
System LED
• 1 x Power
• 1 x System Status
• 1 x DO
• 2 x Ethernet Port
• 2 x Serial Port
• 3 x Radio Status
DIN Clip
Integrated Power Connector
• 1 x 6 pin terminal block
4 pin for Power Input
2 pin DO Alarm
Serial Port (1 Serial Port
for C Series)
• 2 x RS232/422/485, DB9
System LED
• 1 x Power
• 1 x System Status
• 1 x DO
• 2 x Ethernet Port
• 2 x Serial Port
• 3 x Radio 1 Status
• 3 x Radio 2 Status
DIN Clip
Integrated Power Connector
• 1 x 6 pin terminal block
4 pin for Power Input
2 pin DO Alarm
